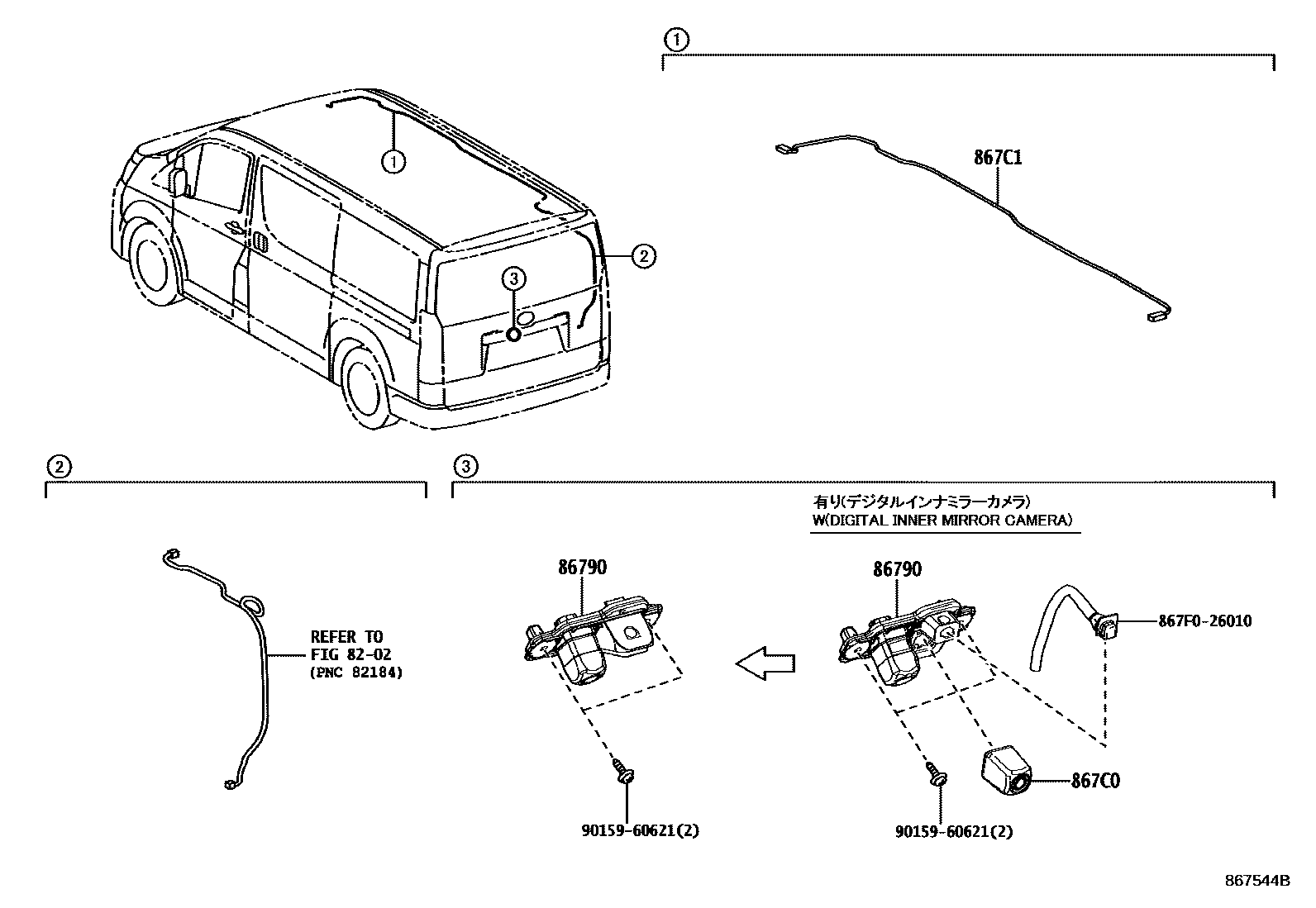

CAMERA & REAR MONITOR DISPLAY
8202WIRING & CLAMP
86790CAMERA ASSY, TELEVISION
main86790-26100iGDH303,GRH303,304..GCC,GEN; GDH306..RHD;GDH306..LHD..J;GDH303,GRH303..ARL201907-202310
BACK MONITOR-WITH(GUIDE LINE) & *PVM(LO)
BACK MONITOR-WITH(FIXED LINE) & INNER MIRROR; BACK MONITOR-WITH(FIXED)(DA)
main867B0-26010supersedes 86790-26100iGDH301,GRH301..SG..N; GDH306;GDH300,301,303,GRH300,303..(SG,SHP,SP)..(ARL,NZ)201902-202310
BACK MONITOR-WITH(GUIDE LINE)
ARGENTINA SPEC&COLD AREA SPEC(-10C AREA)&BACK MONITOR-WITH(GUIDE LINE); BACK MONITOR-WITH(GUIDE LINE)
ARGENTINA SPEC&COLD AREA SPEC(-10C AREA)&BACK MONITOR-WITH(GUIDE LINE); BACK MONITOR-WITH(GUIDE LINE)
main867B0-V3040iGDH322..SG..P..GEN;GDH322,GRH322..SG..(N,Q)..(GCC,GEN); GDH328..PH; GRH320,321..GEN202310
AUDIO-AVN(*BT & 21CY); BACK MONITOR-WITH(GUIDE LINE)
BACK MONITOR-WITH(GUIDE LINE)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH(GUIDE LINE) & *PVM(LO)
main86790-V3130iGDH304;GDH303..LHD..H; GRH303..GCC;GDH303..RHD..GEN;GDH303..LHD..(G,J);GDH320..RHD..SP..6F;GDH301..LHD..SG..6F..N; GRH303..GCC;GDH303..RHD;GDH303..LHD..(G,J); GRH304202310
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-EDA(*BT); INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH(FIXED)(DA); INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH(GUIDE LINE) & *PVM(LO)
main867B0-26020iGDH320,321,322,GRH320,321..(SG,SP)..(ARL,NZ); GDH321,322,328,GRH322..SG..(N,Q)..(GCC,GEN,IDN,PH)201903-202310
BACK MONITOR-WITH(GUIDE LINE)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-*DA & CD & *BT; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS); INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH(GUIDE LINE)
main867B0-26040supersedes 867B0-26020iGDH320,321,322,GRH320,321..(SG,SP)..(ARL,NZ); GDH322..Q..GEN;GDH321,GRH322..N201903-202310
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH(GUIDE LINE)
main867B0-V3070iGDH300,301,303..(SG,SHP,SP)..(ARL,NZ); GDH304,GRH303..GCC,TH;GDH301..LHD..SG..6F..N;GDH303..(G,J)..(GCC,GEN)202310
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH(GUIDE LINE)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
867C0CAMERA ASSY, INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-*DA & CD & *BT; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS); INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH(GUIDE LINE); INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH(GUIDE LINE) & *PVM(LO)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
867C1WIRE, MIRROR CAMERA
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main867C1-26090iGDH322..D;GDH320..RHD;GDH320..LHD..6F;GDH320..6FC..GCC;GDH322..6FC..P..GEN;GDH320..SG..6FC..GEN;GDH321,328,GRH32#..D,P;GDH322..P..(ARL,GCC,NZ); GDH328..PH201903-202208
EUROPE N1&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
867F026010NOZZLE ASSY, CAMERA CLEANER
main867F0-26010
9015960621
main90159-60621
6 parts on this diagram · 5 diagrams in section
