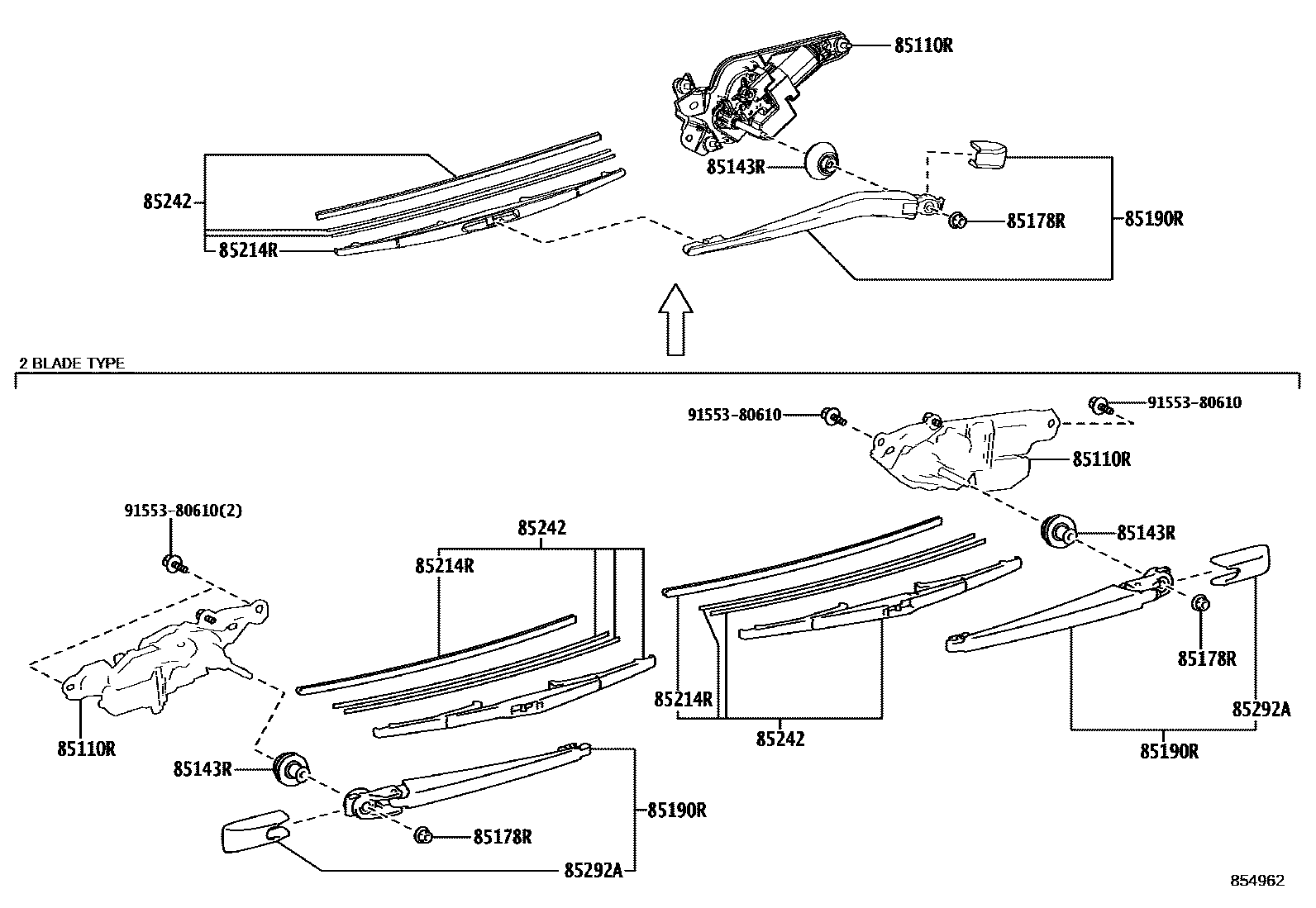

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-26130iGDH322..Q..GEN202006

main85130-V3010iGDH301,322..GSOB..N; GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH301..LHD..GSOB..6F..D;GDH300,320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(AGT,GCC,GEN)202208

REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG,RH; RH

main85130-V3020iGDH301,322..GSOB..N; GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH301..LHD..GSOB..6F..D;GDH300,320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(AGT,GCC,GEN)202208

LH; REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG,LH

85143RGROMMET, REAR WIPER MOTOR

main85143-26060iGDH322..Q..GEN202006

main85143-26070iGDH306..LHD..G201907-202505

main85143-42040×2iGDH301,322..GSOB..N; GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH301..LHD..GSOB..6F..D;GDH300,320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(AGT,GCC,GEN)202208

REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGDH322..6F..Q..GEN; GDH322..RHD..P..GEN201902-202005

(J); REAR WINDOW WIPER-WITH,(J)

main90182-T0005iGDH321..D..GEN; GDH321..N..GEN201902-202310

(L); REAR WINDOW WIPER-WITH,(L)

85190RARM ASSY, REAR WIPER

main85241-12150×2iGDH301,322..GSOB..N; GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH301..LHD..GSOB..6F..D;GDH300,320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(AGT,GCC,GEN)202208

REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG

main85241-26080iGDH322..6F..Q..GEN; GDH322..RHD..P..GEN201902-202005

REAR WINDOW WIPER-WITH

85214RRUBBER, REAR WIPER

main85214-26060iGDH322..6F..Q..GEN; GDH322..RHD..P..GEN201902-202005

REAR WINDOW WIPER-WITH

main85214-30280×2iGDH301,322..GSOB..N; GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH301..LHD..GSOB..6F..D;GDH300,320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(AGT,GCC,GEN)202208

REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG

85242BLADE, RR WIPER

main85242-10030×2iGDH301,322..GSOB..N; GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH301..LHD..GSOB..6F..D;GDH300,320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(AGT,GCC,GEN)202208

REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG

main85242-26060iGDH322..6F..Q..GEN; GDH322..RHD..P..GEN201902-202005

REAR WINDOW WIPER-WITH

85292ACAP, REAR WIPER ARM HEAD

main85292-42010×2iGDH301,322..GSOB..N; GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH301..LHD..GSOB..6F..D;GDH300,320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(AGT,GCC,GEN)202208

REAR WINDOW WIPER-2BLADE(INTERMITTENT)SWG

9155380610

main91553-80610

8 parts on this diagram · 1 diagram in section
