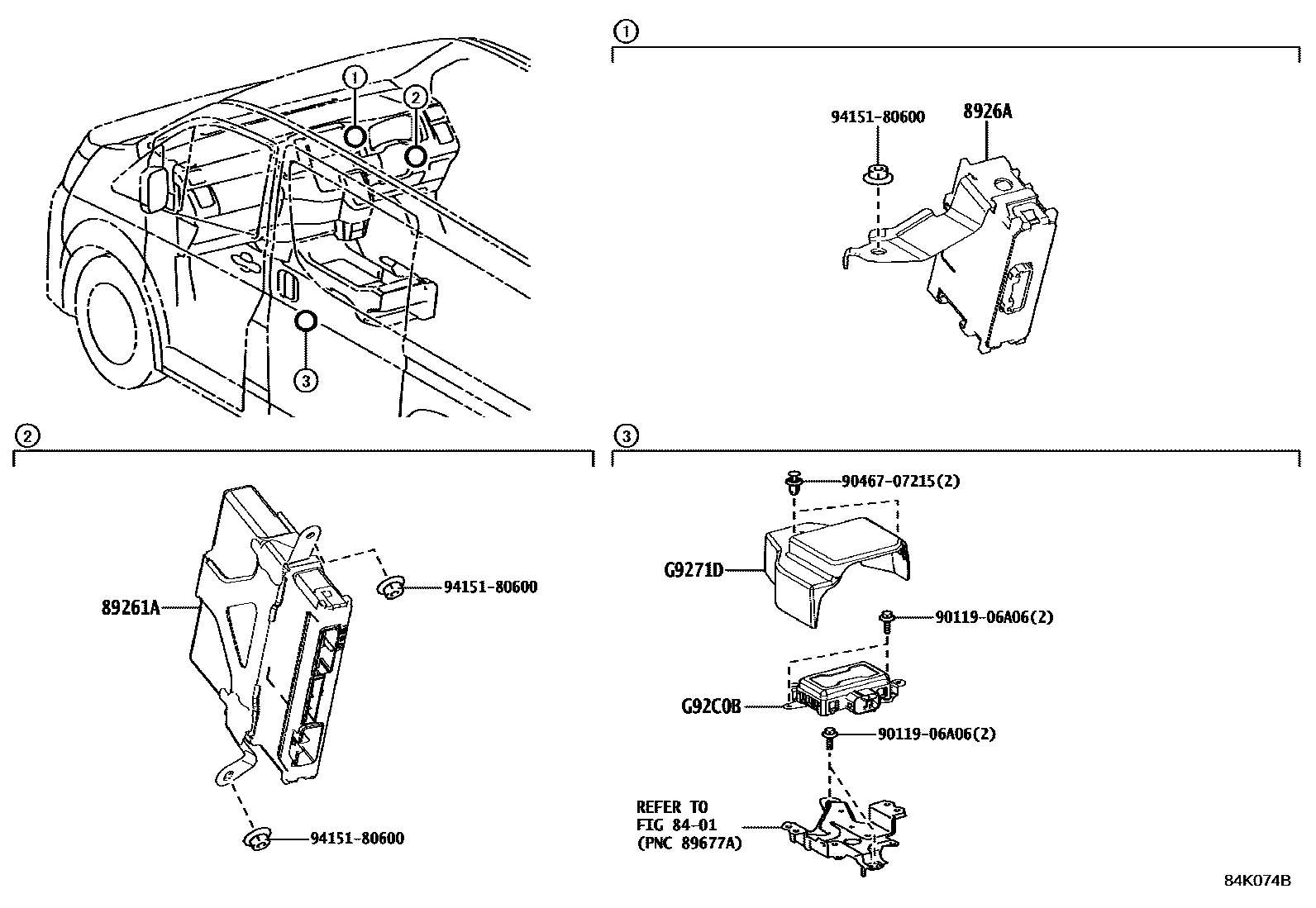

ECO-RUN SYSTEM

0001 1 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89261ACOMPUTER, ENGINE STOP AND START

main89260-26010iGDH300,301,303,320,321,322..6FC..(ARL,NZ)201902-202506

main89260-26020iGDH300,320..6F..ARL201902-202506

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-26010iGDH300,301,303,320,321,322..6FC..(ARL,NZ)201902

G9271DCOVER, CONVERTER

mainG927126010iGDH303..ARL201907

PREMIUM PACKAGE

G92C0BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C026010iGDH303..ARL201907

PREMIUM PACKAGE

9011906A06

main90119-06A06

9046707215

main90467-07215

9415180600

main94151-80600

8 parts on this diagram · 2 diagrams in section
