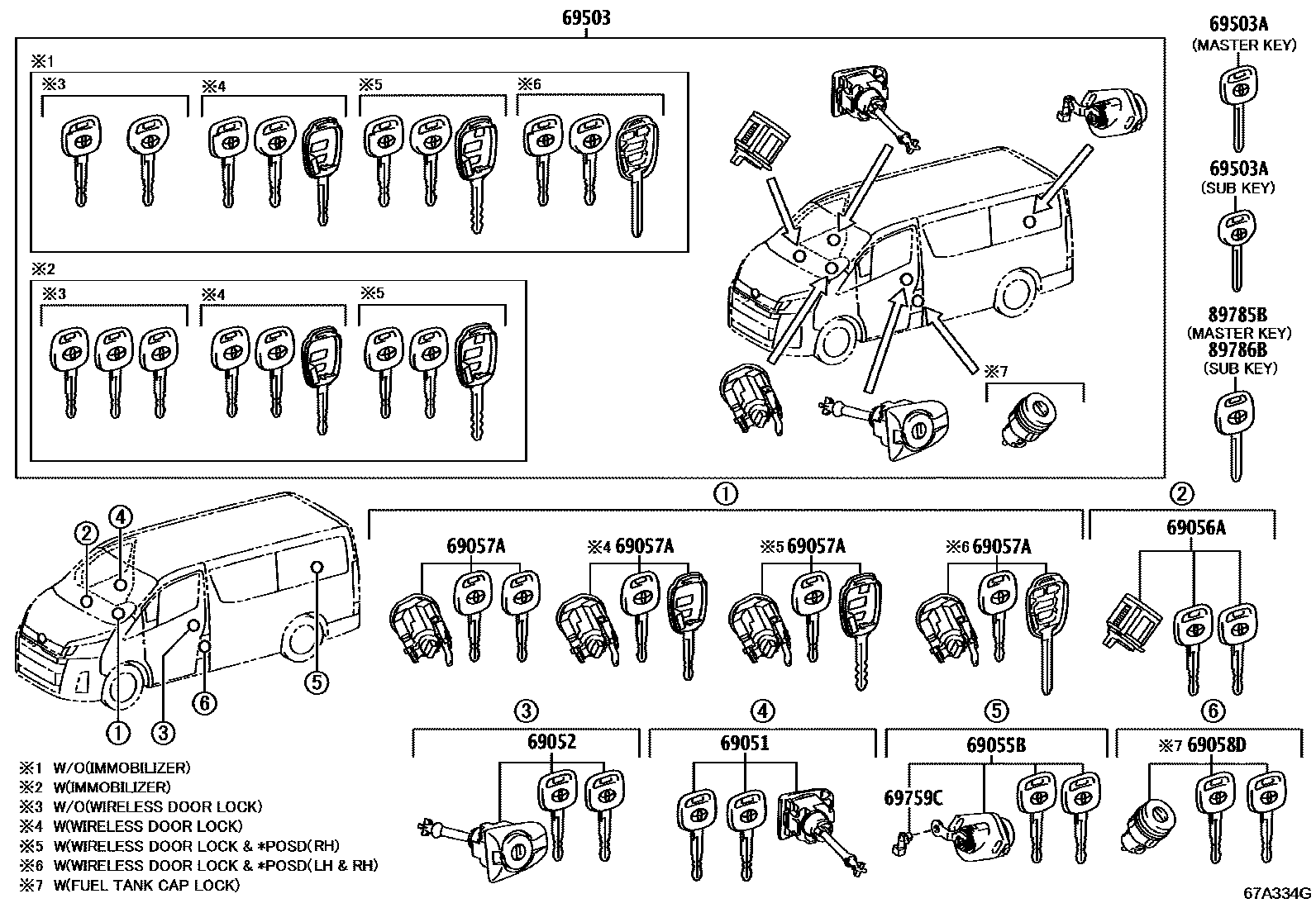

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-26200iGDH322..P..GCC;GRH320..LHD..5D;GDH322..SG..D..GEN;GDH300..4D..PSOB..6F;GDH301..SG..D..(GEN,TH);GDH321,GRH320..RHD..D..(GEN,IDN);GDH300..5D..(PSOB,SP)..(GCC,GEN);GDH300,301..LHD..(GSOB,SHP)..6F..D;GDH300,322..LHD..(GSOB,SP)..D..GEN;GDH300,301..(GSOB,PSOB,SHP)..6FC..D..GEN;GDH320,GRH300,301,322..(D,P)..(AGT,GCC,GEN);GDH300,322..RHD..4D..(GSOB,SP)..6F..(GEN,TH)201902
EUROPE N1&ANTI-THEFT SYSTEM-WITHOUT
main69057-26220supersedes 69057-26200iGDH322..N;GDH321..N..IDN;GDH322..6FC..Q..GEN;GDH320,328..BZ,PH,VN;GDH322..(D,Q)..(GCC,TH);GDH301,GRH301,321,322..N,Q; GDH322..NZ;GDH300..HPSOB;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL; GRH320..RHD..GEN;GDH322..SG..D..GEN;GDH300..4D..PSOB..6F;GDH301,321..D..(IDN,TH);GDH300..5D..(PSOB,SP)..GEN;GDH300..(PSOB,SHP)..6FC..GEN;GDH320,GRH300,322..D..(AGT,GEN);GDH300,322,GRH320..LHD..(GSOB,SP)..D..GEN;GDH300,322..RHD..4D..(GSOB,SP)..6F..(GEN,TH)201902
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
*ECS(*SD) & *POSD
FIJI SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD; SRI LANKA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH&*ECS(*SD & BACK DOOR) & *POSD
WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
WIRELESS DOOR LOCK-WITH&*ECS(*SD & BACK DOOR) & *POSD
WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
*ECS(*SD & BACK DOOR) & *POSD
69058DCYLINDER & KEY SET, FUEL TANK FILLER
69503CYLINDER SET, LOCK
main69005-26B80iGRH320..LHD..SP;GDH322..SG..D..GEN;GDH300..LHD..SP..GEN;GDH300..SHP..6FC..GEN;GDH300..5D..SP..(GCC,GEN);GDH300,322..(SG,SHP)..(D,P)..GCC;GDH321,GRH320..RHD..D..(GEN,IDN);GDH300..RHD..4D..SP..6F..(GEN,TH);GDH301,320,GRH300,301,322..(SG,SHP,SP)..(D,P)..(GCC,GEN,TH)201902
main69005-26C00supersedes 69005-26D20iGDH322..6FC..Q..GCC;GDH322..LHD..SG..6FC..N;GDH328,GRH321..BZ,GEN,PH;GDH322..LHD..SG..6F..(N,Q);GDH301,GRH301,322..LHD..SG..(N,Q); GRH320..LHD..SP..GEN;GDH300,320,322,GRH300,322..LHD..(SG,SP)..D..GEN201902
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
main69005-26C10supersedes 69005-26D20iGDH300..5D..SP..GEN;GDH300..SHP..6FC..GEN;GDH301,321..D..(IDN,TH);GDH300..RHD..4D..SP..6F..(GEN,TH);GDH320,322,GRH300,320,322..RHD..(SG,SP)..D..GEN; GDH322..NZ;GDH320..6F..ARL;GDH300..4D..6F..ARL;GRH300,320,321..(D,P)..ARL; GDH322..TH;GRH321..Q..ARL;GDH301,321,322,GRH301,322..RHD..SG..N201902
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN); SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main69005-V3010iGDH301..GSOB..6FC..D;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F;GDH300..PSOB..(GCC,GEN);GDH301..LHD..GSOB..6F..D;GDH320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(AGT,GCC,GEN)202208
main69005-V3040iGDH300,320,322,GRH322..LHD..(GSOB,PSOB)..D..(AGT,GEN); GDH320..BZ;GDH301,322..LHD..GSOB..N202208
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
EUROPE M2&ARGENTINA SPEC
*ECS(*SD) & *POSD
*ECS(*SD) & *POSD; ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH&*ECS(*SD & BACK DOOR) & *POSD
*ECS(*SD) & *POSD
main69005-26D40iGDH322..P..GCC;GRH320..LHD..SP;GRH322..LHD..SG..(D,P);GDH300,320,322,GRH300..LHD..(SG,SHP,SP)..D..(GCC,GEN)201902
WIRELESS DOOR LOCK-WITH
AFRICA(GENERAL)SPEC&WIRELESS DOOR LOCK-WITH; FIJI SPEC&WIRELESS DOOR LOCK-WITH; OCEANIA(GENERAL)SPEC&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
WIRELESS DOOR LOCK-WITH&*ECS(*SD & BACK DOOR) & *POSD
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITHOUT&WIRELESS DOOR LOCK-WITH&*ECS(*SD & BACK DOOR) & *POSD
main69005-V3020iGDH300..HPSOB; GDH301..GSOB..6FC..D;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F;GDH301..LHD..GSOB..6F..D;GDH300,320,GRH322..(GSOB,PSOB)..(AGT,GEN)202208
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
main69005-V3060supersedes 69005-V3020iGDH300..HPSOB; GDH322..RHD..GSOB..6F;GDH300,320..RHD..PSOB..GEN202208
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH
*ECS(*SD) & *POSD; ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
*ECS(*SD & BACK DOOR) & *POSD
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY,W(*68)
MASTER KEY,W(*68)
SUB KEY,W(*68)
69759CSNAP, BACK DOOR LOCK CYLINDER
89785BTRANSMITTER, TRANSPONDER KEY MASTER
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY; BLANK KEY,SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); BLANK KEY,SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITHOUT
11 parts on this diagram · 4 diagrams in section
