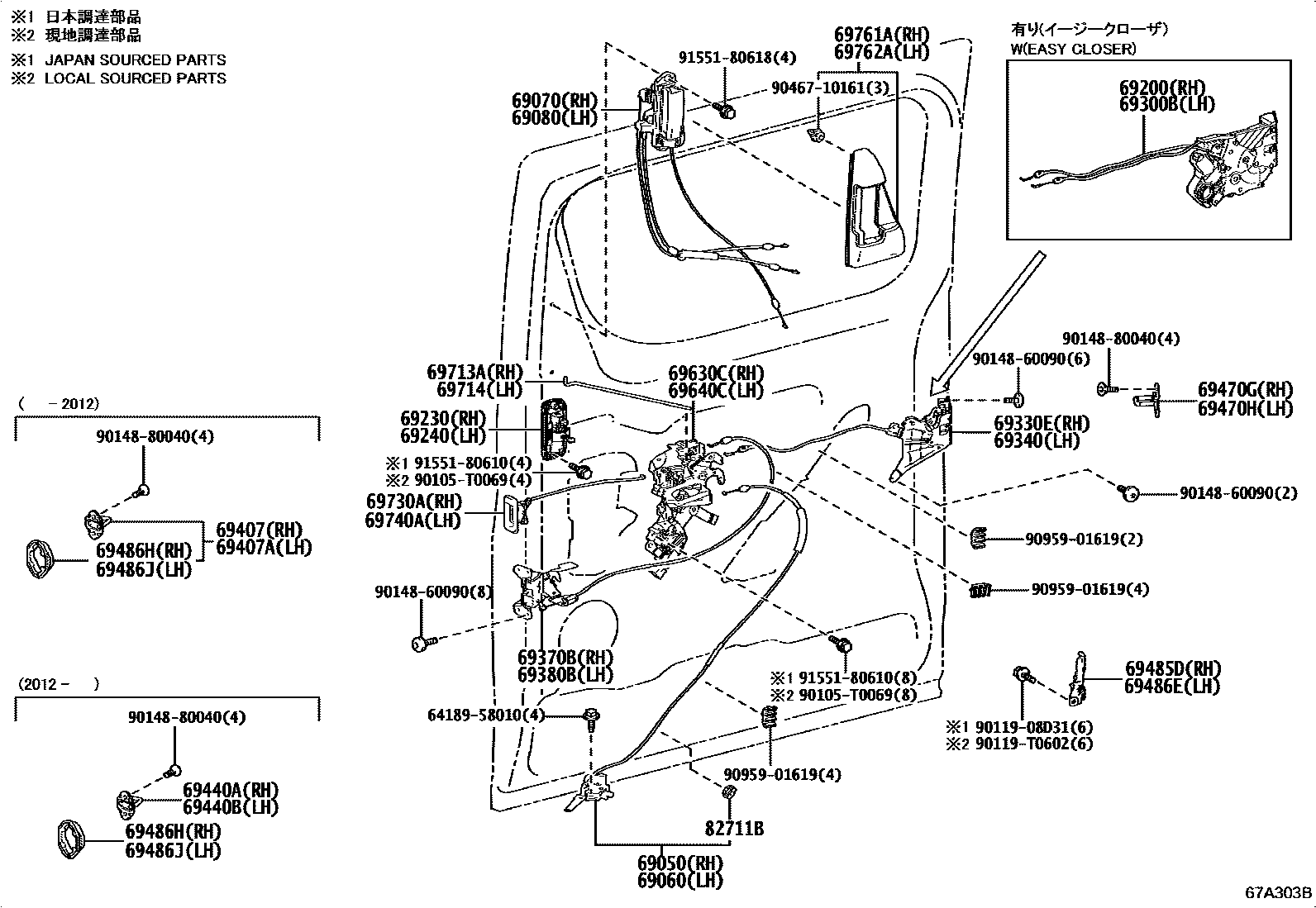

REAR DOOR LOCK & HANDLE
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
main69306-26010iGDH300..5D;GDH322..ARL,NZ;GRH300..ARL,GCC;GRH300..5D..GEN;GDH322..RHD..GSOB..N;GDH306,320,GRH320..RHD;GDH300..4D..SP..(ARL,TH);GDH303,304,GRH303,304,321..6FC;GDH306,320,GRH320..LHD..5D..(D,J);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH301,GRH300..RHD..(GSOB,SP)..6FC..GEN;GDH300,301,321,322,GRH301,322..RHD..4D..(PSOB,SG)..(D,N)201902
69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH
main69070-26050-C0iGDH320..LHD..SG;GDH320..GSOB,PSOB,SP;GDH300,GRH300,320..5D;GDH322..LHD..(D,P)..(GCC,GEN);GDH300,301,328,GRH300,301,320,322..LHD..4D..(D,P)201902
BLACK,TRIM1#
BLACK,TRIM2#
FROMAGE,TRIM0#
69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH
BLACK,TRIM1#
BLACK,TRIM2#
FROMAGE,TRIM0#
69200LOCK ASSY, POWER SLIDE DOOR, RH
*ECS(*SD) & *POSD
main69200-V3040supersedes 69200-V3050iGDH300,GRH300..HPSOB; GDH303..LHD..H;GDH300,GRH300..SHP;GDH303,306,GRH303..G,J; GDH304..GEN;GDH303..RHD..H202308-202406
*ECS(*SD & BACK DOOR) & *POSD; *ECS(*SD) & *POSD
main69200-V3041supersedes 69200-V3051iGDH300,GRH300..HPSOB; GDH300,GRH300..SHP; GDH304,GRH304;GDH303..RHD..H202407
*ECS(*SD & BACK DOOR) & *POSD; *ECS(*SD) & *POSD
main69200-26060iGDH322..P..GCC;GDH321,322..LHD..(N,Q);GDH328,GRH321,322..LHD..(GCC,GEN,PH)201903-202307
*ECS(*SD) & *POSD
*ECS(*SD) & *POSD
*ECS(*SD) & *POSD
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
main69230-26130-A0iGDH322..P..GCC;GRH322..LHD..(D,P);GDH322..6FC..P..GEN;GDH322..LHD..D..GEN;GDH320..GSOB,PSOB,SP;GDH300,GRH300,320..5D;GDH300,320,328,GRH300,320..LHD..4D..(PSOB,SG,SP)..(BZ,GEN); GDH328,GRH321..6F;GDH322..LHD..6F..P..GEN;GDH301,322,GRH301,322..LHD..(N,Q)201902
GL PACKAGE,WHITE,058; WHITE,058
WHITE PEARL CS.,2QD
main69230-26130-B0iGDH322..P..GCC;GRH322..LHD..(D,P);GDH322..6FC..P..GEN;GDH322..LHD..D..GEN;GDH300,GRH300,320..5D;GDH320..(GSOB,PSOB,SP)..(ARL,GCC,GEN);GDH300,320,GRH300,320..LHD..4D..(PSOB,SG,SP); GDH328,GRH321..6F;GDH322..LHD..6F..P..GEN;GDH301,322,GRH301,322..LHD..(N,Q)..(GCC,GEN)201902
GL PACKAGE,SILVER M.M.,1E7; SILVER M.M.,1E7
main69230-26130-C1iGDH300..5D..(SHP,SP)..6F..GEN;GDH300..(HPSOB,SHP)..6FC..GEN; GDH301,322,328,GRH301..LHD..SG..N..(GEN,PH)201902
BLACK MC.,209; GL PACKAGE,BLACK MC.,209
main69230-26130-E0iGDH328,GRH321..6F;GDH322..LHD..6F..P..GEN;GDH322,GRH322..LHD..(N,Q)..(GCC,GEN); GDH328..PH201903
BEIGE ME.,4R4; EUROPE N1&GL PACKAGE,BEIGE ME.,4R4
LT.BLUE ME.,8Q6
PLATED
PLATED
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-26120iGDH300..5D;GRH300..ARL,GCC;GRH300..5D..GEN;GDH322..RHD..6FC..P;GDH320,GRH320..LHD..5D;GDH300..4D..SP..(ARL,TH);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH301,GRH300..RHD..(GSOB,SP)..6FC..GEN;GDH320,322,GRH320..RHD..(PSOB,SG,SP)..D..(ARL,GEN);GDH300,301,321,GRH301,321,322..RHD..4D..(PSOB,SG)..(D,P)201902
LESS COLOR
GL PACKAGE,WHITE,058; WHITE,058
GL PACKAGE,SILVER M.M.,1E7; SILVER M.M.,1E7
main69240-26130-C1iGDH300..(HPSOB,SHP)..6FC..GEN;GDH300..RHD..(SHP,SP)..6F..GEN; GDH301,GRH301..RHD..N201902
BLACK MC.,209; GL PACKAGE,BLACK MC.,209
BEIGE ME.,4R4
LT.BLUE ME.,8Q6
*CR
NO PAINT REQ.
69300BLOCK ASSY, POWER SLIDE DOOR, LH
main69300-26150supersedes 69300-26170iGDH300,GRH300..HPSOB; GDH301..RHD..SG..6FC..D..GEN; GDH304..GEN;GDH303..RHD..H202208-202307
*ECS(*SD) & *POSD
main69300-V3040supersedes 69300-V3050iGDH300,GRH300..HPSOB; GDH301..RHD..6F..N;GDH301..RHD..SG..6FC..D..(GEN,NZ); GDH303..LHD..H;GDH300,GRH300..SHP;GDH303,306,GRH303..G,J; GDH304..GEN;GDH303..RHD..H202308-202406
*ECS(*SD & BACK DOOR) & *POSD; *ECS(*SD) & *POSD
main69300-V3041supersedes 69300-V3051iGDH300,GRH300..HPSOB; GDH300,GRH300..SHP; GDH301..RHD..6F..N;GDH301..RHD..SG..6FC..D..(GEN,NZ); GDH304,GRH304;GDH303..RHD..H202407
*ECS(*SD & BACK DOOR) & *POSD; *ECS(*SD) & *POSD
main69300-V3061iGDH321..IDN,NZ;GRH322..RHD..6F;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH322..RHD..SG..(D,N,P)..(ARL,GEN); GDH322..Q..ARL202407
*ECS(*SD) & *POSD
*ECS(*SD) & *POSD
69330ELOCK ASSY, SLIDE DOOR, RH
main69330-26070iGDH320..LHD..SG;GDH320,GRH320..GSOB,PSOB,SP;GDH321,322,328,GRH32#..LHD..4D201903-202307
main69330-V3020iGDH320..LHD..SG;GDH320..GSOB,PSOB,SP;GDH322,328,GRH32#..LHD..(AGT,GCC,GEN,PH)202308-202406
main69330-V3021iGDH320..LHD..SG;GDH320..GSOB,PSOB,SP;GDH322,328,GRH32#..LHD..(AGT,BZ,GCC,GEN,PH)202407
69340LOCK ASSY, REAR DOOR, LH
main69340-26060iGDH300..GCC;GRH300..ARL,GCC;GRH300..5D..GEN;GRH300..6FC..GEN;GDH300,301,GRH301..RHD201902-202307
main69340-V3021iGDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH320,GRH320..LHD..5D;GDH320,321,322,GRH322..RHD..(PSOB,SG,SP)..(D,N,P)202407
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
69407STRIKER SUB-ASSY, REAR DOOR OPEN LOCK, FRONT RH
main69407-15010iGDH300,301,32#,GRH300,301,32#..LHD..4D;GDH300,303,304,306,320,GRH300,303,304,320..5D201902-201911
main69407-26010iGDH300,301,32#,GRH300,301,32#..LHD..4D;GDH300,303,304,306,320,GRH300,303,304,320..5D201912-202101
69407ASTRIKER SUB-ASSY, REAR DOOR OPEN LOCK, FRONT LH
main69407-15010iGDH300..RHD..4D;GDH300,303,306,GRH303..5D;GDH320,GRH300,320..LHD..5D;GDH301,304,320,322,GRH300,301,304,32#..RHD201902-201911
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69470GPLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, RH
69470HPLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, LH
69485DSTRIKER, SLIDE DOOR OPEN, RH
69486ESTRIKER, SLIDE DOOR OPEN, LH
main69486-26030iGDH300..5D;GDH322..ARL,NZ;GRH300..ARL,GCC;GRH300..5D..GEN;GDH322..RHD..GSOB..N;GDH306,320,GRH320..RHD;GDH300..4D..SP..(ARL,TH);GDH303,304,GRH303,304,321..6FC;GDH306,320,GRH320..LHD..5D..(D,J);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH301,GRH300..RHD..(GSOB,SP)..6FC..GEN;GDH300,301,321,322,GRH301,322..RHD..4D..(PSOB,SG)..(D,N)201902
69486HCOVER, SLIDE DOOR FRONT LOCK STRIKER, RH
69486JCOVER, SLIDE DOOR FRONT LOCK STRIKER, LH
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
main69630-26250iGDH320..LHD..SG;GRH300..LHD..(PSOB,SG,SP);GDH320..(GSOB,PSOB,SP)..(AGT,GCC,GEN);GDH300,GRH320..5D..(PSOB,SP)..(GCC,GEN);GDH300,301,322,GRH301,322..LHD..4D..(D,P)..(GCC,GEN)201902
main69630-26290supersedes 69630-26280iGDH300,GRH300..HPSOB; GDH300..SHP..ARL; GDH304..GEN;GDH303..RHD..H202208
*ECS(*SD & BACK DOOR) & *POSD; WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
*ECS(*SD) & *POSD
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
main69640-26410supersedes 69640-26440iGDH300,GRH300..5D..(PSOB,SP)..GEN;GDH320,GRH320..LHD..5D..(AGT,GEN);GDH301,GRH300..RHD..(GSOB,SP)..6FC..GEN;GDH320,322,GRH320..RHD..(PSOB,SG,SP)..D..GEN;GDH300,322..RHD..4D..(GSOB,SP)..6F..(GEN,TH);GDH300,301,321,GRH301,322..RHD..4D..(PSOB,SG)..D..(GEN,IDN,TH); GDH322..(D,P)..(ARL,NZ,TH);GDH301,321,322,GRH301,322..RHD..N;GDH300,301,320,321,GRH300,320,321..(GSOB,PSOB,SG,SP)..(ARL,BZ,NZ)201902
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
main69640-26440iGDH301..RHD..GSOB..6FC;GRH300..6FC..(GCC,GEN);GDH300..5D..(PSOB,SP)..(GCC,GEN);GRH300..LHD..5D..(PSOB,SG,SP)..6F;GDH320,GRH320..LHD..5D..(AGT,GCC,GEN);GDH320,322,GRH320..RHD..(PSOB,SG,SP)..D..GEN;GDH300,322..RHD..4D..(GSOB,SP)..6F..(GEN,TH);GDH300,301,321,GRH301,322..RHD..4D..(PSOB,SG)..D..(GEN,IDN,TH)201902
main69640-26460supersedes 69640-26450iGDH300,GRH300..HPSOB; GDH300..SHP..ARL; GDH304..GEN;GDH303..RHD..H202208
*ECS(*SD & BACK DOOR) & *POSD; WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH
69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
main69761-26020-C0iGDH320..LHD..SG;GDH320..GSOB,PSOB,SP;GDH300,GRH300,320..5D;GDH322..LHD..(D,P)..(GCC,GEN);GDH300,301,328,GRH300,301,320,322..LHD..4D..(D,P)201902
BLACK,TRIM1#
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
main69762-26020-C0iGDH300..5D;GRH300..ARL,GCC;GRH300..5D..GEN;GDH322..RHD..6FC..P;GDH320,GRH320..LHD..5D;GDH300..4D..SP..(ARL,TH);GDH301,GRH300..RHD..(GSOB,SP)..6FC..GEN;GDH320,322,GRH320..RHD..(PSOB,SG,SP)..D;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,301,321,GRH301,321,322..RHD..4D..(PSOB,SG)..(D,P)201902
BLACK,TRIM1#
82711BCLAMP, WIRING HARNESS
6418958010CLAMP, BACK PANEL SILENCER
main64189-58010
90105T0069
main90105-T0069
9011908D31
main90119-08D31
90119T0602
main90119-T0602
9014860090
main90148-60090
9014880040
main90148-80040
9046710161
main90467-10161
9095901619
main90959-01619
9155180610
main91551-80610
9155180618
main91551-80618
41 parts on this diagram · 1 diagram in section
