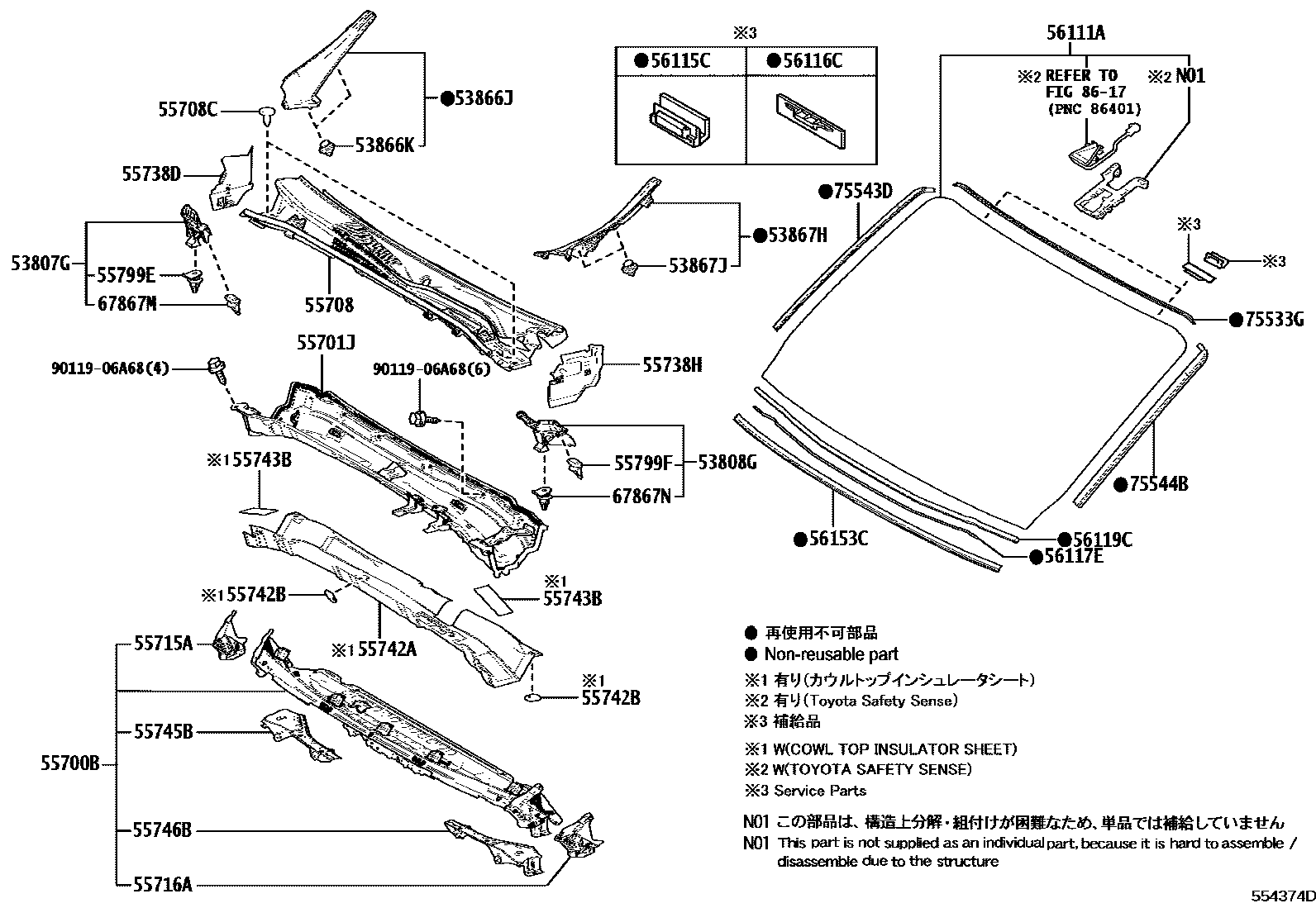

COWL PANEL & WINDSHIELD GLASS
53807GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
53808GSEAL SUB-ASSY, FENDER APRON MUDGUARD, LH
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53866KCLIP, FRONT FENDER TO COWL SIDE SEAL
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
53867JCLIP, FRONT FENDER TO COWL SIDE SEAL
55700BCOWL ASSY
main55700-26540iGDH322..LHD..6FC;GDH301..LHD..GSOB..6FC;GDH301,306..LHD..SG..(D,J,N);GDH322..LHD..SG..6F..(GCC,GEN);GDH301,322..LHD..GSOB..6F..(D,P);GDH300,303,304,320,328,GRH300,301,303,32#..LHD201902
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
main55708-26300iGRH303..GCC;GDH322..6F..GCC;GRH322..LHD..6F;GDH322..LHD..6FC;GRH322..6FC..(N,P,Q);GDH301..LHD..GSOB..6FC;GDH301,322..LHD..GSOB..6F..D;GDH322..LHD..SG..6F..(D,N)..GEN;GDH301,GRH303..LHD..SG..(D,G,N);GDH300,303,304,320,328,GRH300,301,320,321..LHD201902
COLD AREA SPEC(-20C AREA)
55708CCLIP, COWL TOP VENTILATOR LOUVER
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55738HSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55742ASHEET, COWL TOP INSULATOR
55742BCLIP, COWL TOP INSULATOR SHEET
55743BSHEET, COWL TOP INSULATOR, NO.2
55745BPANEL, COWL TOP INSIDE CORNER, RH
55746BPANEL, COWL TOP INSIDE CORNER, LH
55799ECLIP, FENDER APRON MUDGUARD SEAL
55799FCLIP, FENDER APRON MUDGUARD SEAL
56111AGLASS, WINDSHIELD
MONGOLIA SPEC&COLD AREA SPEC(-20C AREA)
main56111-26461supersedes 56111-26341iGDH300,320..RHD..5D..PSOB..GEN; GDH300..SHP..6F..GEN; GDH301..RHD..6F..N202405
SOUTH AFRICA SPEC&AUDIO-EDA(*BT); SOUTH AFRICA SPEC&AUDIO-EDA(*BT)&BACK MONITOR-WITH(FIXED)(DA)
BRUNEI SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; INDONESIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
SOUTH AFRICA SPEC&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(DVD & CD & *BT); SOUTH AFRICA SPEC&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-AVN(DVD & CD & *BT)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
main56111-V3100iGDH300..PSOB..6F..GCC;GRH300..(SHP,SP)..GCC;GDH300,320,322,GRH320,322..(SG,SP)..(D,P)..GCC; GDH300..PSOB..6F..GCC;GRH300..(SHP,SP)..GCC;GDH300,GRH320..SP..GCC;GDH320,322,GRH322..(D,P)..GCC; GDH300..SHP..GCC;GRH300,320..HPSOB,PSOB;GDH300..PSOB..6FC..GCC; GDH320..GCC;GDH300..PSOB..6F..GCC;GDH300,GRH300,320..SP..GCC202310
AUDIO-EDA(*BT)&BACK MONITOR-WITH(FIXED)(DA); BAHRAIN SPEC&AUDIO-EDA(*BT)&BACK MONITOR-WITH(FIXED)(DA); SAUDI ARABIA SPEC&AUDIO-EDA(*BT)&BACK MONITOR-WITH(FIXED)(DA); UNITED ARAB EMIRATES SPEC&AUDIO-EDA(*BT)&BACK MONITOR-WITH(FIXED)(DA)
BAHRAIN SPEC&AUDIO-*DA(*BT & 21CY)&BACK MONITOR-WITH(GUIDE LINE); BAHRAIN SPEC&AUDIO-EDA(*BT)&BACK MONITOR-WITH(FIXED)(DA); UNITED ARAB EMIRATES SPEC&AUDIO-*DA(*BT & 21CY)&BACK MONITOR-WITH(GUIDE LINE); UNITED ARAB EMIRATES SPEC&AUDIO-EDA(*BT)&BACK MONITOR-WITH(FIXED)(DA)
BAHRAIN SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AVN(*BT & 21CY); BAHRAIN SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-EDA(*BT); BAHRAIN SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-AVN(*BT & 21CY); BAHRAIN SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-EDA(*BT); UNITED ARAB EMIRATES SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AVN(*BT & 21CY); UNITED ARAB EMIRATES SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-EDA(*BT); UNITED ARAB EMIRATES SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-AVN(*BT & 21CY); UNITED ARAB EMIRATES SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-EDA(*BT)
BAHRAIN SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AVN(*BT & 21CY); BAHRAIN SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-EDA(*BT); BAHRAIN SPEC&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-AVN(*BT & 21CY); BAHRAIN SPEC&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-EDA(*BT); UNITED ARAB EMIRATES SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AVN(*BT & 21CY); UNITED ARAB EMIRATES SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-EDA(*BT); UNITED ARAB EMIRATES SPEC&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-AVN(*BT& 21CY); UNITED ARAB EMIRATES SPEC&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-EDA(*BT)
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117EDAM, WINDOW GLASS ADHESIVE
L=1503
L=1351
56119CSEAL, WINDSHIELD GLASS
56153CMOULDING, FRONT WINDOW, INNER CENTER
67867MRETAINER, FENDER APRON MUDGUARD SEAL
67867NRETAINER, FENDER APRON MUDGUARD SEAL
75533GMOULDING, WINDSHIELD, OUTSIDE
75543DMOULDING, WINDSHIELD, OUTSIDE NO.2 RH
75544BMOULDING, WINDSHIELD, OUTSIDE NO.2 LH
8617PRE-COLLISION SYSTEM
9011906A68
main90119-06A68
34 parts on this diagram · 4 diagrams in section
