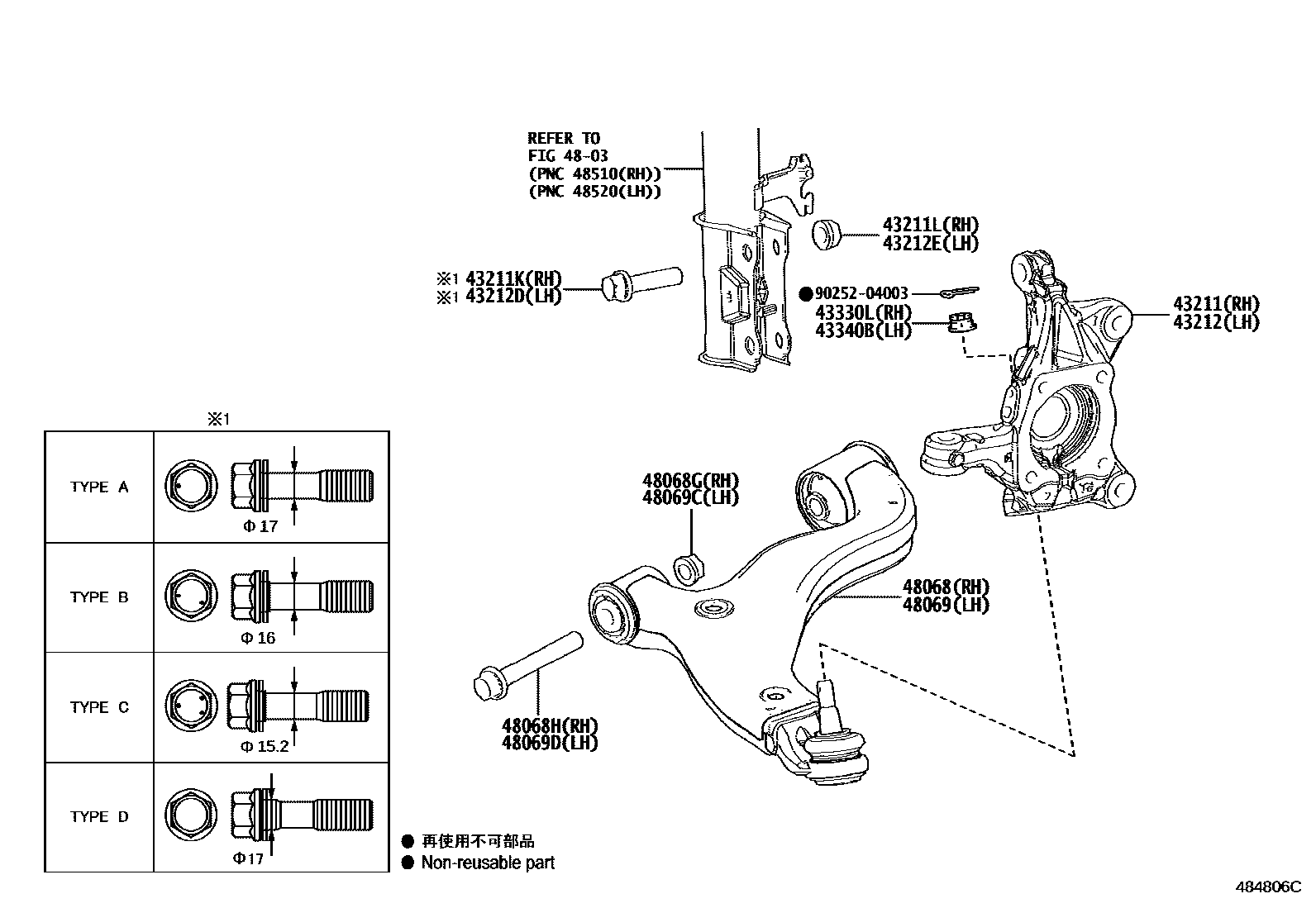

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-26170iGDH322..RHD..P..GEN201902-202505

43211KBOLT (FOR STEERING KNUCKLE RH)

main90119-18010iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN201902-202505

*18-1.5PX75,TYPE D:REFER ILLUST.

main90119-18011iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

*18-1.5PX75-32.5,TYPE A:REFER ILLUST.

main90119-18012iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

*18-1.5PX75-32.5,TYPE B:REFER ILLUST.

main90119-18013iGDH322..RHD..P..GEN201902-202505

*18-1.5PX75-32.5,TYPE C:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-18003iGDH322..RHD..(P,Q)..GEN201902-202505

43212KNUCKLE, STEERING, LH

main43212-26140iGDH322..RHD..(P,Q)..GEN201902-202505

43212DBOLT (FOR STEERING KNUCKLE LH)

main90119-18010iGDH322..RHD..P..GEN201902-202505

*18-1.5PX75,TYPE D:REFER ILLUST.

main90119-18011iGDH321..GEN201902-202505

*18-1.5PX75-32.5,TYPE A:REFER ILLUST.

main90119-18012iGDH322..RHD..P..GEN201902-202505

*18-1.5PX75-32.5,TYPE B:REFER ILLUST.

main90119-18013iGDH322..RHD..(P,Q)..GEN201902-202505

*18-1.5PX75-32.5,TYPE C:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-18003iGDH322..RHD..(P,Q)..GEN201902-202505

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-16008iGDH322..RHD..(P,Q)..GEN201902-202505

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-16008iGDH322..RHD..(P,Q)..GEN201902-202505

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26180iGDH322..RHD..(P,Q)..GEN201902-202505

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-18003iGDH322..RHD..(P,Q)..GEN201902-202505

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-18009iGDH322..RHD..P..GEN201902-202505

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26180iGDH322..RHD..(P,Q)..GEN201902-202505

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-18003iGDH322..RHD..(P,Q)..GEN201902-202505

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-18009iGDH322..RHD..(P,Q)..GEN201902-202505

9025204003

main90252-04003

16 parts on this diagram · 1 diagram in section
