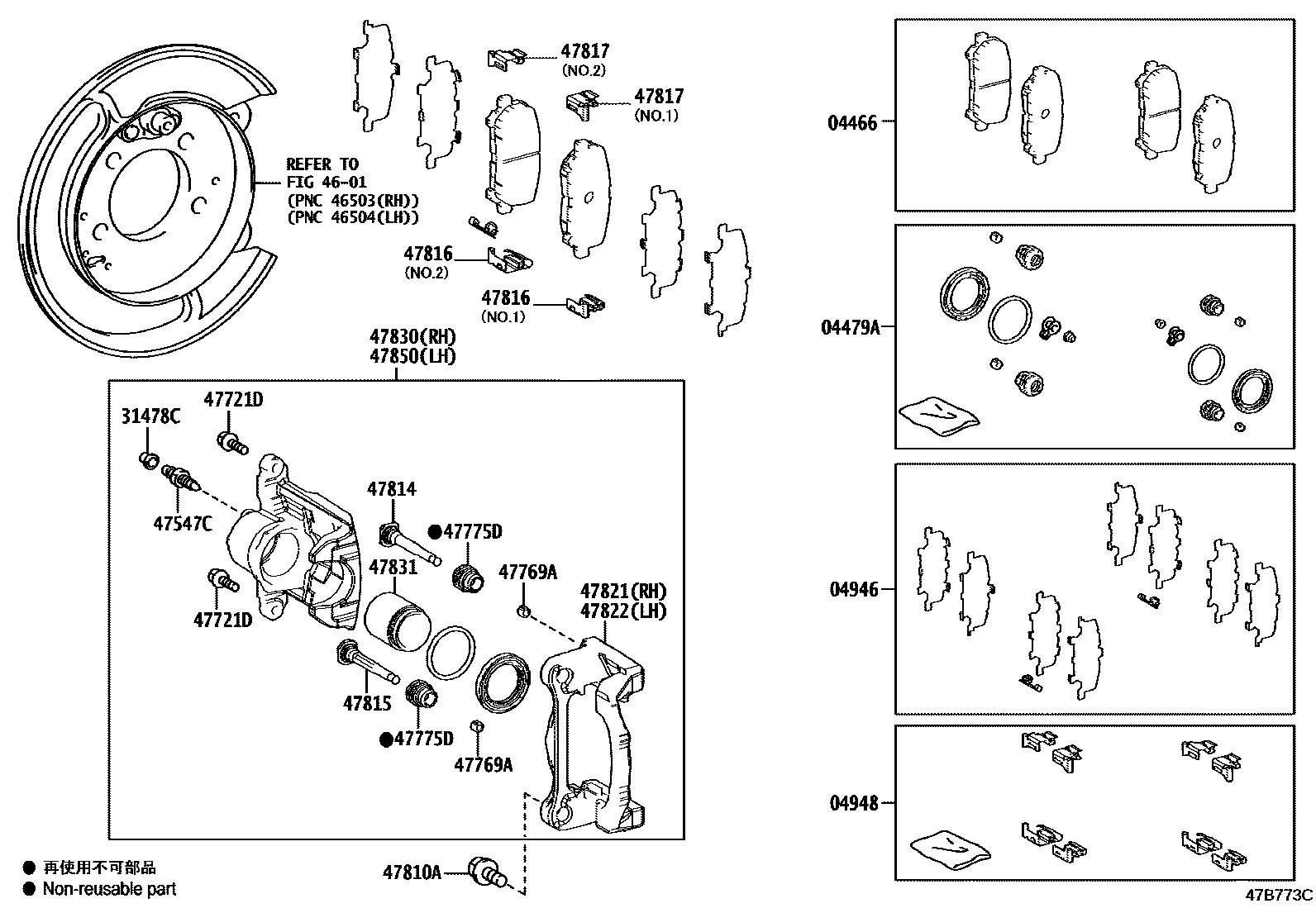

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-26030iGDH322..RHD..(P,Q)..GEN202006

MARK AK NS542

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-26090iGDH300,301,GRH300..6FC..(ARL,NZ); GRH301..6F..N;GRH301..LHD..D;GRH301..LHD..6FC..N;GDH301..LHD..GSOB..6F..D;GDH300,301..LHD..6FC..GEN;GDH300..(HPSOB,SHP)..6FC..GEN;GDH300,301,GRH300..(PSOB,SG,SHP,SP)..6F..GEN201902-202506

REAR WHEEL BRAKE-16 INCH DISC(45S)

main04479-26100iGDH322..RHD..(P,Q)..GEN201903-202005

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-26000iGDH322..RHD..(P,Q)..GEN201902-202005

04948FITTING KIT, DISC BRAKE, REAR

main04948-26020iGDH322..RHD..(P,Q)..GEN201902-202005

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iGDH322..RHD..(P,Q)..GEN201902-202005

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12130×2iGDH322..RHD..(P,Q)..GEN201902-202005

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08346×4iGDH322..RHD..(P,Q)..GEN201902-202005

*8-1.00PX21.5-10.5

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28570×4iGDH322..RHD..(P,Q)..GEN201902-202005

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-48010×4iGDH322..RHD..(P,Q)..GEN201902-202005

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-14181×4iGDH322..RHD..(P,Q)..GEN201902-202005

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-26030×2iGDH322..RHD..(P,Q)..GEN202006

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-26030×2iGRH321,322;GDH322..GCC,NZ;GRH303..LHD..G;GDH320,328..BZ,PH,VN;GRH300,320..6FC..ARL;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH322..SG..(D,N)..(AGT,GEN,TH);GDH306,322..LHD..SG..(J,P,Q)..GEN;GDH306,321,GRH303..RHD..(ARL,GEN,IDN)201902

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-26030×2iGDH301..RHD..GSOB..6F; GDH322..RHD..GSOB..6FC..D201902-202404

NO.1; REAR WHEEL BRAKE-16 INCH DISC(45S),NO.1

main47816-26031×2iGDH321..GEN; GRH301..RHD..D;GRH301..RHD..6FC..N;GDH300,301..RHD..(GSOB,PSOB,SG,SP)..6FC..GEN201902-202310

NO.2; REAR WHEEL BRAKE-16 INCH DISC(45S),NO.2

47817PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)

main47817-26030×2iGDH322..RHD..(P,Q)..GEN201902-202005

NO.1

main47817-26031×2iGDH322..ARL;GDH306..LHD..G;GRH303..LHD..J;GDH303,304,GRH304;GDH300,301,320,321..6FC..(ARL,NZ); GRH301..6F..N;GRH301..LHD..D;GRH301..LHD..6FC..N;GDH301..LHD..GSOB..6F..D;GDH300,301..LHD..6FC..GEN;GDH300..(HPSOB,SHP)..6FC..GEN;GDH300,301,GRH300..(PSOB,SG,SHP,SP)..6F..GEN201902-202506

NO.2; REAR WHEEL BRAKE-16 INCH DISC(45S),NO.2

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-26030iGDH321..GEN; GRH301..RHD..D;GRH301..RHD..6FC..N;GDH300,301..RHD..(GSOB,PSOB,SG,SP)..6FC..GEN201902-202310

REAR WHEEL BRAKE-16 INCH DISC(45S)

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-26030iGDH322..RHD..(P,Q)..GEN202006

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-26020iGDH300,301,GRH300..6FC..(ARL,NZ); GRH301..6F..N;GRH301..LHD..D;GRH301..LHD..6FC..N;GDH301..LHD..GSOB..6F..D;GDH300,301..LHD..6FC..GEN;GDH300..(HPSOB,SHP)..6FC..GEN;GDH300,301,GRH300..(PSOB,SG,SHP,SP)..6F..GEN201902-202506

REAR WHEEL BRAKE-16 INCH DISC(45S)

main47830-26030iGDH322..RHD..(P,Q)..GEN201903-202005

47831PISTON, REAR DISC BRAKE

main47831-26020×2iGDH300,301,GRH300..6FC..(ARL,NZ); GRH301..6F..N;GRH301..LHD..D;GRH301..LHD..6FC..N;GDH301..LHD..GSOB..6F..D;GDH300,301..LHD..6FC..GEN;GDH300..(HPSOB,SHP)..6FC..GEN;GDH300,301,GRH300..(PSOB,SG,SHP,SP)..6F..GEN201902-202506

REAR WHEEL BRAKE-16 INCH DISC(45S)

main47831-26030×2iGDH320..6F;GRH320..GCC,GEN;GRH320..6F..ARL;GDH320..6FC..(GCC,GEN); GDH328..6F; GRH321,322;GDH322..GCC,NZ;GRH303..LHD..G;GRH320..6FC..ARL;GDH322..RHD..GSOB..N;GDH320,328..BZ,PH,VN;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH322..SG..(D,N)..(AGT,GEN,TH);GDH306,322..LHD..SG..(J,P,Q)..GEN;GDH306,321,GRH303..RHD..(ARL,GEN,IDN)201903

REAR WHEEL BRAKE-16 INCH DISC(48S); REAR WHEEL BRAKE-DRUM BRAKE

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-26020iGDH300,301,GRH300..6FC..(ARL,NZ); GRH301..6F..N;GRH301..LHD..D;GRH301..LHD..6FC..N;GDH301..LHD..GSOB..6F..D;GDH300,301..LHD..6FC..GEN;GDH300..(HPSOB,SHP)..6FC..GEN;GDH300,301,GRH300..(PSOB,SG,SHP,SP)..6F..GEN201902-202506

REAR WHEEL BRAKE-16 INCH DISC(45S)

main47850-26030iGDH322..RHD..(P,Q)..GEN201903-202005

20 parts on this diagram · 1 diagram in section
