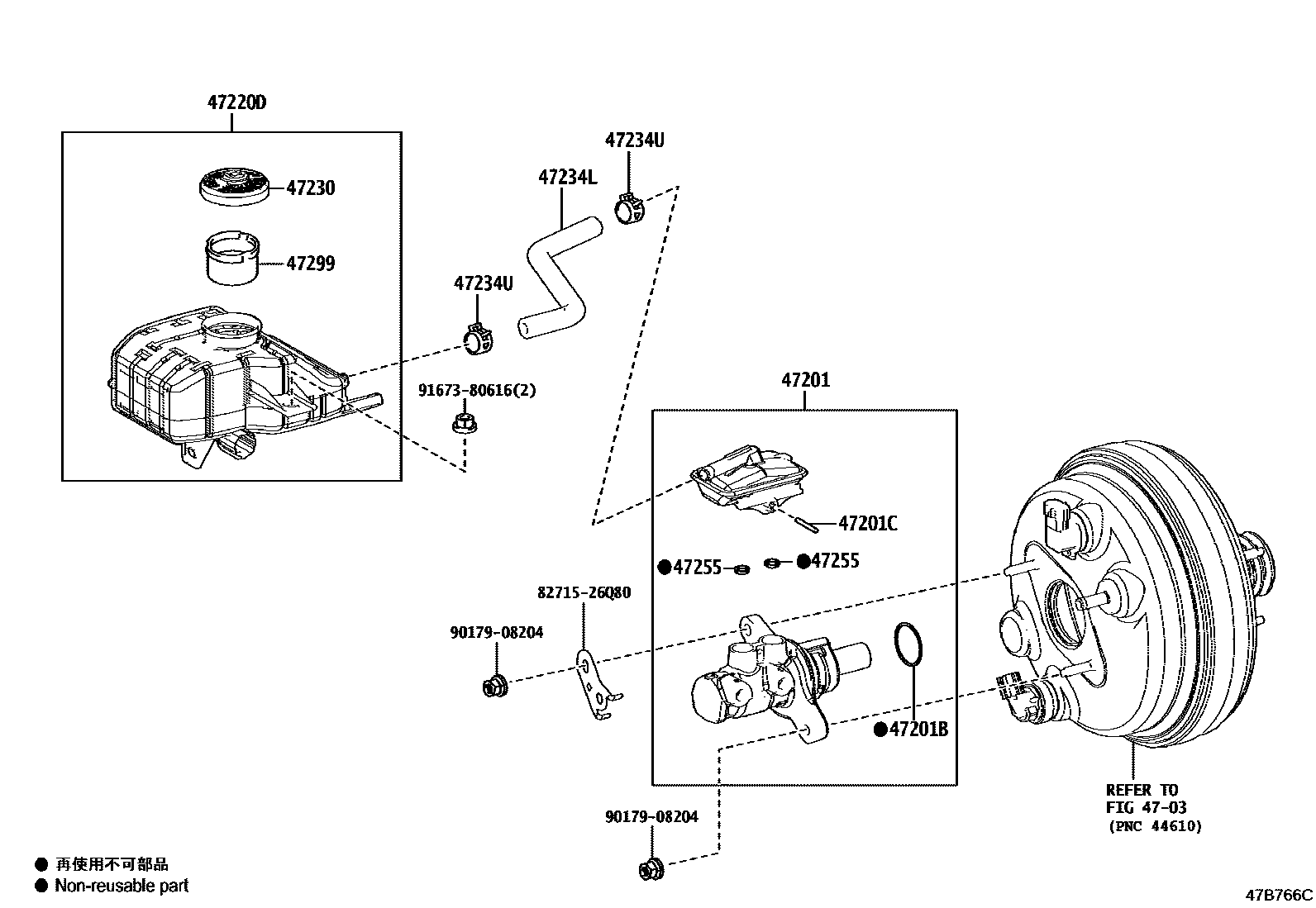

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-26860iGDH301..LHD..SG..6F..N;GDH320..PSOB..6FC..GEN;GDH300,301..LHD..D..GEN;GDH320,GRH301..LHD..6F..D..GEN201902-202505

main47201-26870supersedes 47201-26850iGDH300..5D..ARL;GDH320..6FC..ARL;GDH300,301..NZ,TH;GDH301..RHD..6F..N;GDH300..4D..6FC..ARL;GDH300,303,304,GRH304..RHD..(HPSOB,SG)..(D,H)..(GEN,TH); GRH301..RHD..6FC..N;GDH301..RHD..SG..6F..D..GEN;GDH300,301..RHD..(GSOB,SG,SHP)..6FC..GEN;GDH300,320,GRH300,301..RHD..(PSOB,SG,SP)..D..GEN201902-202505

VEHICLE STABILITY CONTROL-WITH

main47201-26880supersedes 47201-26860iGDH322..6FC..(AGT,GCC);GDH306,GRH321..LHD..(G,Q);GDH322..LHD..SG..6F..(P,Q);GDH301,322..LHD..GSOB..(N,P);GDH300,303,304..LHD..5D..(D,H);GRH300..(HPSOB,PSOB,SHP,SP)..GCC;GDH320,328,GRH320,322..AGT,BZ,GCC; GRH322..6FC..N;GRH322..LHD..6F..GEN;GRH320..LHD..SP..GEN;GDH301..LHD..SG..6F..N;GDH322..LHD..SG..N..GEN;GDH301,322..LHD..(D,Q)..GEN;GDH300,320,328,GRH300,301..LHD..(GEN,VN)201902-202505

VEHICLE STABILITY CONTROL-WITH

main47201-26850supersedes 47201-26870iGDH300..SHP..6F..GEN202405-202505

VEHICLE STABILITY CONTROL-WITHOUT

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iGDH322..RHD..P..GEN201902-202106

47201CRING PIN, BRAKE MASTER CYLINDER

main90015-AE401iGDH320..BZ;GRH300..ARL;GRH301..6F..N;GDH320..6F..ARL;GDH300..4D..6F..ARL;GDH322..RHD..GSOB..N;GRH320..LHD..SP..GEN;GDH306,321,GRH320..RHD;GDH322..LHD..GSOB..6FC;GDH322..LHD..SG..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH322,GRH300..(GSOB,SP)..6F..(D,P)..GEN;GDH322..SG..(D,N,Q)..(AGT,ARL,GCC,GEN,TH);GDH306,320,GRH301..LHD..(SG,SP)..6FC..(D,J,N)..GEN;GDH303,328,GRH300,303,321,322..(GSOB,SG)..(D,G,J,N,P,Q)201902

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-26320iGDH322..RHD..P..GEN202107

main47220-26330iGDH322..RHD..GSOB..6FC..D201902-202404

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-58021iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

47234LHOSE, RESERVOIR, NO.1

main47234-26240iGDH322..RHD..P..GEN201902-202106

main47234-26250iGDH321..GEN201902-202310

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96136-41801×2iGDH322..RHD..P..GEN202107

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001×2iGDH301..SG;GRH320..LHD..SG;GRH301..RHD..6FC..N;GDH322..GSOB..6F..N;GDH301..LHD..GSOB..6F;GDH300..4D..6F..(GEN,TH);GDH320,GRH301..LHD..6F..D;GDH320..6FC..(AGT,ARL,GCC);GDH320,GRH300,301..RHD..D..GEN;GDH300,303,304,GRH304..5D..(D,H);GDH300,301..4D..(GSOB,PSOB,SP)..6FC;GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC;GDH306,320..LHD..5D..(PSOB,SG)..6FC..(D,G)..GEN201902-202505

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-58021iGDH321..GEN201902-202310

8271526Q80BRACKET,WIRING HARNESS CLAMP

main82715-26Q80

9017908204

main90179-08204

9167380616

main91673-80616

13 parts on this diagram · 2 diagrams in section
