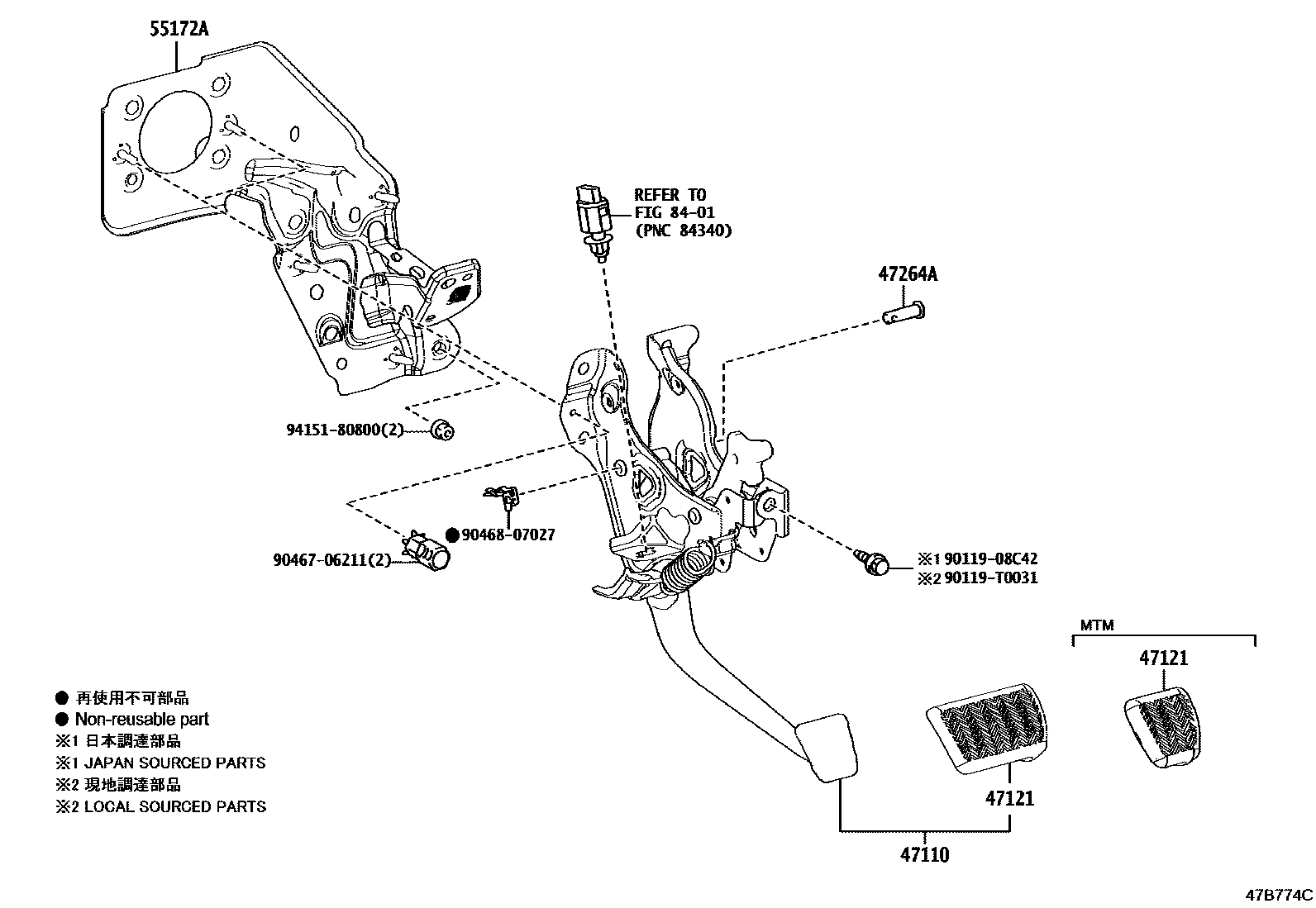

BRAKE PEDAL & BRACKET

0001 1 0003 1 0004 1 0005 1

47110SUPPORT ASSY, BRAKE PEDAL

main47110-26060iGDH322..RHD..P..GEN202107

main47110-26070iGDH322..RHD..GSOB..6FC..D201902-202404

main47110-26080iGDH303,306,GRH303..RHD..(G,J)201907

main47110-26090iGDH321..GEN201902-202310

main47110-26100iGDH300,301,303,304,320,322,328,GRH300,301,320,322..LHD..6FC..(D,H,N,P,Q)201902

main47110-26110iGDH306..LHD..G201907-202505

47121PAD, BRAKE PEDAL

main47121-12040iGDH301..RHD..GSOB..6F201902-202404

main47121-47010iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)..GEN;GDH301,303,304,320,321,328,GRH30#,32#..6FC201902

47264APIN(FOR PUSH ROD)

main90240-06028iGDH306..RHD;GDH306..LHD..J;GDH303,GRH303..G,J201907

main90240-08078iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202110-202404

main90240-08082iGDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,303,304,320,321,328,GRH300,301,304,32#..D,H,N,P,Q201902-202109

55172ABASE, BRAKE PEDAL SUPPORT

main55106-26080iGDH306..LHD..G;GDH301,322..GSOB..6F..N201902-202505

main55172-26060iGDH300..RHD..4D..SP..6FC..GEN201902-202505

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

90119T0031

main90119-T0031

9046706211

main90467-06211

9046807027

main90468-07027

9415180800

main94151-80800
