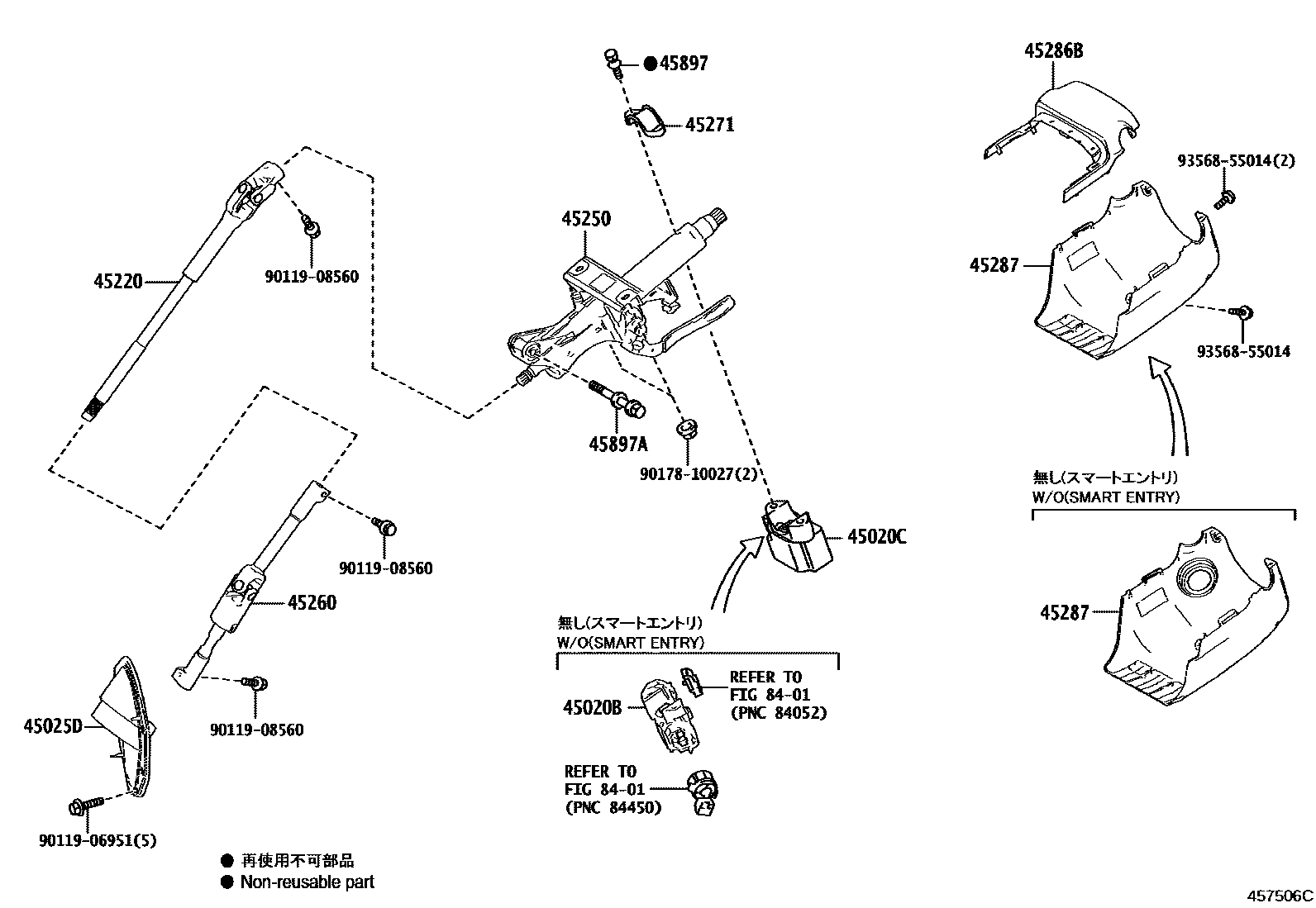

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-26270iGDH322..RHD..P..GEN202006-202106

main45280-33180iGDH300..RHD..4D..SP..6FC..GEN201902-202505

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33240iGDH306..LHD..J;GRH303..RHD..GEN201907-202207

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-26090iGDH306,322..LHD..(D,J,N,P,Q)..(AGT,GCC,GEN);GDH300,301,303,304,320,328,GRH300,301,303,32#..LHD201902

main45025-26100iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-26030iGDH322..RHD..P..GEN202006-202106

45250COLUMN ASSY, STEERING

main45250-26A00iGDH322..RHD..P..GEN202006-202106

main45250-26A10iGDH303,304,306,GRH303,304201907-202310

main45250-V3010iGDH306202310-202505

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-26130iGDH322..Q..GEN202006

main45260-26140iGDH306,322..LHD..(D,J,N,P,Q)..(AGT,GCC,GEN);GDH300,301,303,304,320,328,GRH300,301,303,32#..LHD201902

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iGDH322..RHD..(P,Q)..GEN201902-202005

45286BCOVER, STEERING COLUMN, UPR

main45286-33290-C0iGDH322..RHD..P..GEN202107

BLACK,TRIM1#

main45286-33290-E0iGDH321..N..GEN201902-202310

ORCHID BROWN,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45024-33220-C0iGDH300..5D;GDH321..RHD..D;GDH301..GSOB..6FC..D;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH301..LHD..GSOB..6F..D;GDH300..4D..SP..(ARL,TH);GDH301,322..SG..D..(GEN,NZ,TH);GDH320,328,GRH300,320,321..D,N,P;GDH300,322..LHD..(GSOB,SP)..(D,P)..GEN;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,GRH301,322..4D..(GSOB,PSOB,SG)..(D,P)201902

BLACK,TRIM1#

main45024-33220-E0iGDH322..Q..GEN202006

ORCHID BROWN,TRIM0#

main45024-33230-C0iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020×2iGDH322..Q..GEN202006

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iGDH322..RHD..(P,Q)..GEN201902-202005

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906951

main90119-06951

9011908560

main90119-08560

9017810027

main90178-10027

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
