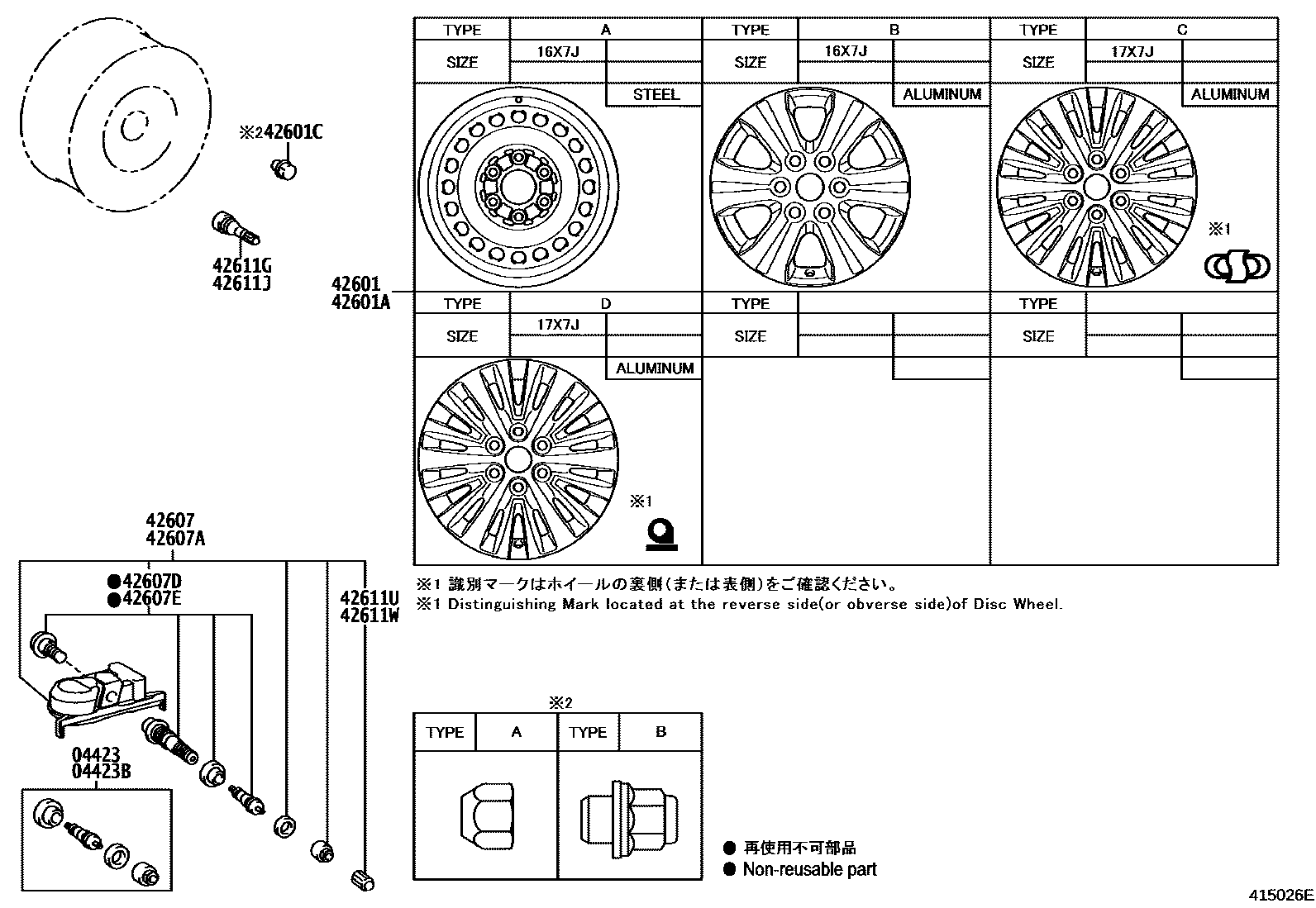

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
16X7J,#,TYPE A:REFER ILLUST.
main42611-26190×2supersedes 42611-26190iGDH320,GRH300..6F;GDH301..LHD..GSOB..6F;GDH300,GRH320..6F..ARL;GDH320..6FC..(GCC,GEN);GDH301,GRH300..(GSOB,PSOB,SP)..6FC..(GCC,GEN);GDH300,301,GRH301,320..(HPSOB,PS201902-202406
16X7J,#,TYPE A:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
TYPE A:REFER ILLUST.
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X7J,#,TYPE A:REFER ILLUST.
16X7J,#,TYPE A:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
17X7J,#,TYPE D:REFER ILLUST.
main42611-V3010iGDH300..5D;GDH321..RHD;GDH301..GSOB..6FC;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..SG..(ARL,GCC,GEN);GDH300,301..4D..(PSOB,SG);GDH202407
TYPE A:REFER ILLUST.
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S)
42607DVALVE, TIRE PRESSURE MONITOR
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009iGDH300..RHD..5D;GDH301..GSOB..6FC;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH306,321,GRH320,321..RHD;GDH322..LHD..SG..6F..P..GEN;GDH322.201902
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
13 parts on this diagram · 3 diagrams in section
