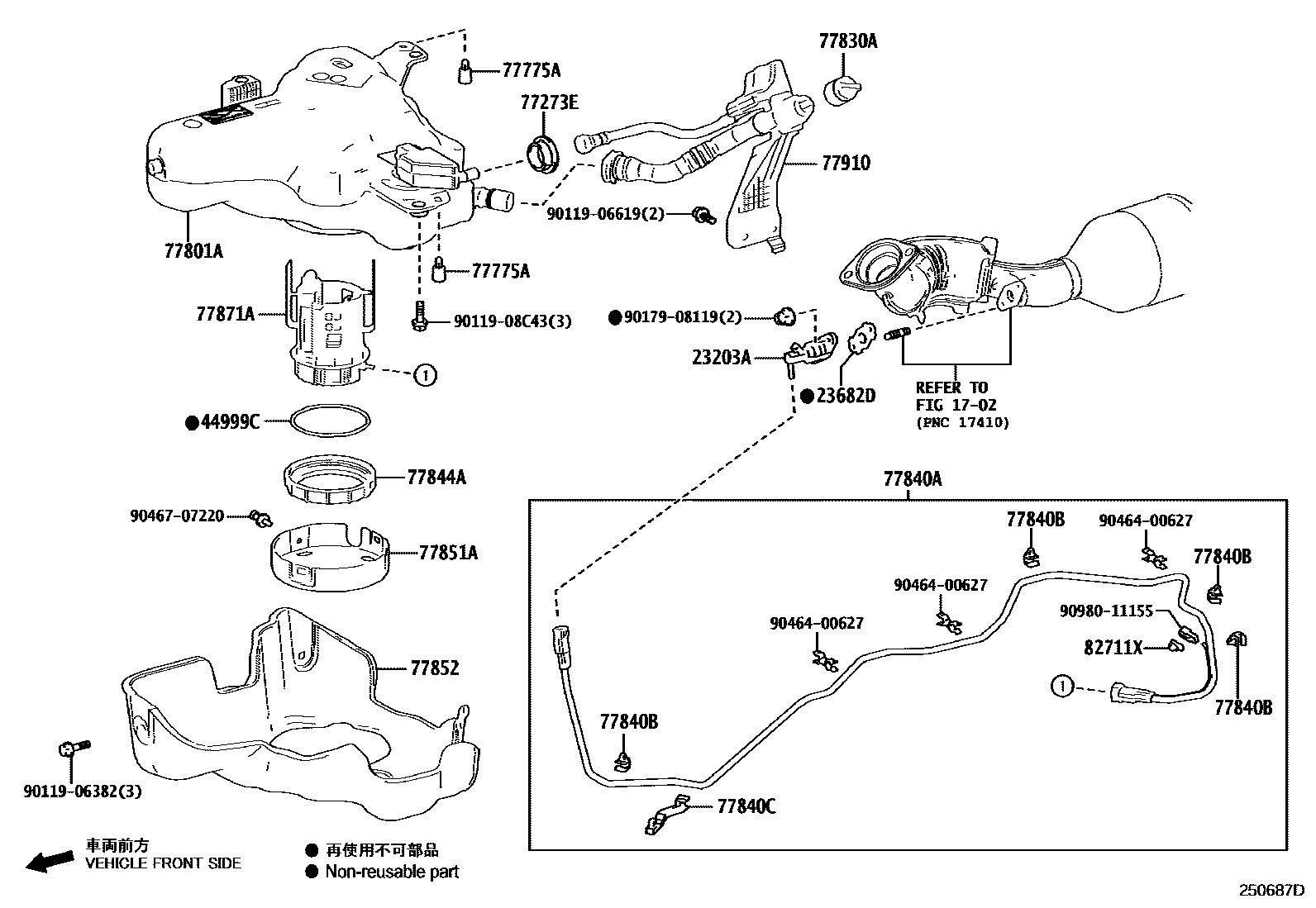

UREA TANK & TUBE
1702
23203AINJECTOR SET, UREA
COSTA RICA SPEC
CHILE SPEC
main23203-11030i1GDFTV..GDH320,328..BZ;1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH300,306..RHD..(HPSOB,SG)..GEN201907
PERU SPEC
SOUTH AFRICA SPEC
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681
23682DGASKET, NOZZLE HOLDER
main23682-11010i1GDFTV..GDH320,328..BZ;1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH300,306..RHD..(HPSOB,SG)..GEN201907
CHILE SPEC
COSTA RICA SPEC
PERU SPEC
SOUTH AFRICA SPEC
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681
44999CRING, O(FOR UREA PUMP)
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
CATALYTIC CONVERTER-WITH(DIESEL, EURO6)&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
77273ESUPPORT, BREATHER TUBE, NO.2
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
77775AGUIDE, UREA TANK OUTLET
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
77801ATANK SUB-ASSY, UREA
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
CATALYTIC CONVERTER-WITH(DIESEL, EURO6)&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
77830ACAP ASSY, UREA TANK
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
CATALYTIC CONVERTER-WITH(DIESEL, EURO6)&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
77840ATUBE ASSY, UREA W/HEATER
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
CATALYTIC CONVERTER-WITH(DIESEL, EURO6)&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
77840BCLAMP, UREA TUBE, NO.1
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
77840CCLAMP, UREA TUBE, NO.2
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
77844ARETAINER, UREA PUMP GAGE
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
77851APROTECTOR, UREA TANK
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
CATALYTIC CONVERTER-WITH(DIESEL, EURO6)&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
77852PROTECTOR, UREA TANK, NO.2
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
CATALYTIC CONVERTER-WITH(DIESEL, EURO6)&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
77871APUMP, UREA
HONG KONG SPEC
TAIWAN SPEC
SOUTH AFRICA SPEC
CATALYTIC CONVERTER-WITH(DIESEL, EURO6)&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
sub77870-0K011
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
sub77870-0K011
COSTA RICA SPEC
CHILE SPEC
77910PIPE ASSY, UREA TANK FILLER
sub77910-V3020
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
CATALYTIC CONVERTER-WITH(DIESEL, EURO6)&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL, EURO6)
82711XCLAMP, WIRING HARNESS
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-PS, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL-VAN, EURO6)
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681&CATALYTIC CONVERTER-WITH(DIESEL, EURO6)
EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700&CATALYTIC CONVERTER-WITHOUT
9011906382
main90119-06382
9011906619
main90119-06619
9011908C43
main90119-08C43
9017908119
main90179-08119
9046400627
main90464-00627
9046707220
main90467-07220
9098011155
main90980-11155
24 parts on this diagram · 1 diagram in section
