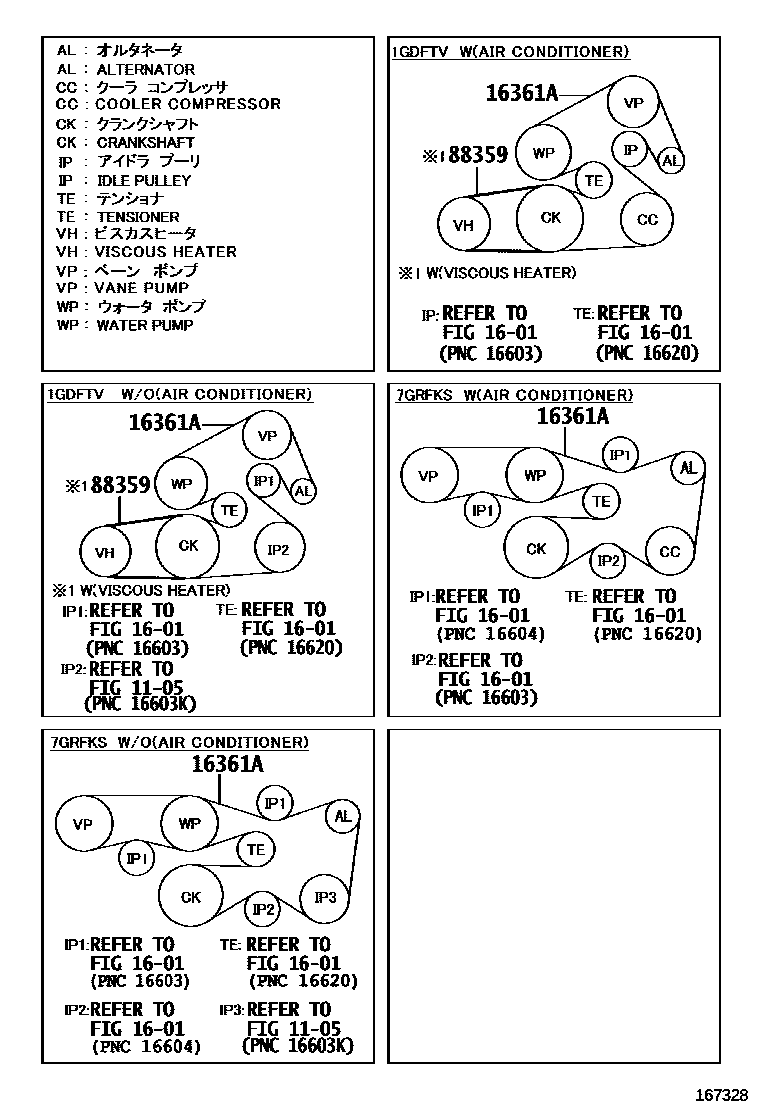

711370
›
V-BELT
V-BELT
1105
CYLINDER BLOCK
→ Go to FIG 11-05
1601
WATER PUMP
→ Go to FIG 16-01
16361A
BELT, V(FOR FAN & ALTERNATOR)
main
90916-02768
i
7GRFKS..GRH30#,32#
201902
main
99367-K2040
i
1GDFTV..GDH322..RHD..P..GEN
202006-202106
88359
BELT, V(FOR VISCOUS HEATER)
main
99364-K0890
i
GDH306..LHD..J;GDH322..LHD..6F..P..GEN
201903
4 parts on this diagram · 1 diagram in section
