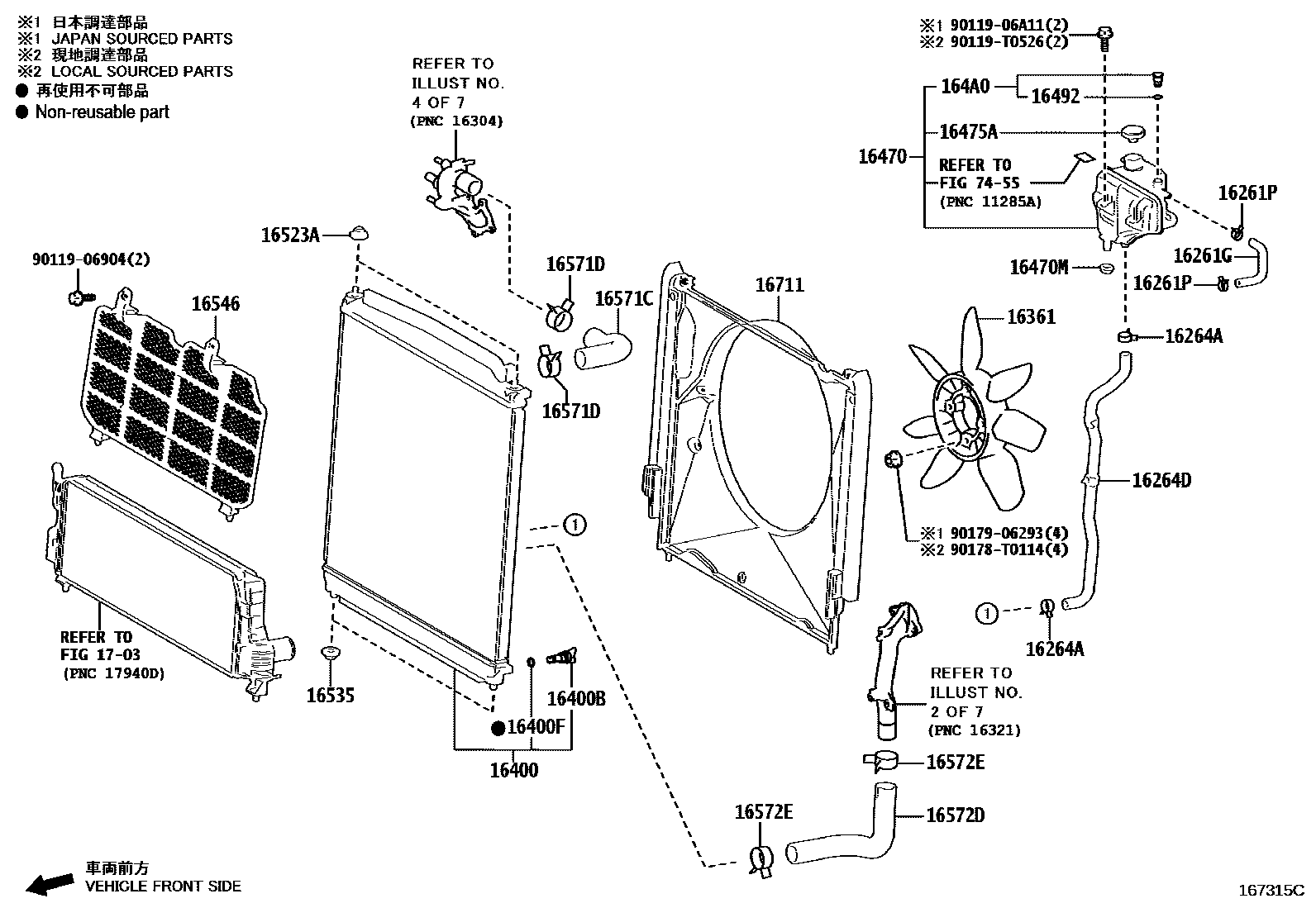

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
main16261-11110i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505
16261PCLIP(FOR WATER BY-PASS HOSE NO.2)
main96136-41901×2i1GDFTV..GDH300..5D;1GDFTV..GDH306,321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH303,304,320,328;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH322..GSOB..6F..(D,P);1GDFTV..GDH301..LHD..GSOB..6F..D;1GDFTV..GDH300..4D..SP..(ARL,TH);1GDFTV..GDH300..RHD..4D..SP..6F..GEN;1GDFTV..GDH300,306..LHD..(SG,SP)..(D,J)..GEN;1GDFTV..GDH300,301,322..4D..(PSOB,SG)..(AGT,ARL,GCC,GEN,NZ,TH)202011
16264HOSE, WATER BY-PASS, NO.2
(L)
(L)
main16264-11130i1GDFTV..GDH300,301,320..LHD..6FC; 1GDFTV..GDH300,303,320..GCC; 1GDFTV..GDH322..GCC; 1GDFTV..GDH322..LHD..6FC..GEN; 1GDFTV..GDH322..RHD..(P,Q)..GEN; 1GDFTV..GDH322..RHD..D..GEN202006-202011
ARGENTINA SPEC; COSTA RICA SPEC; EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700; EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS); SRI LANKA SPEC
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
main90466-26004×2i1GDFTV..GDH300..5D;1GDFTV..GDH306,321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH303,304,320,328;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH322..GSOB..6F..(D,P);1GDFTV..GDH301..LHD..GSOB..6F..D;1GDFTV..GDH300..4D..SP..(ARL,TH);1GDFTV..GDH300..RHD..4D..SP..6F..GEN;1GDFTV..GDH300,306..LHD..(SG,SP)..(D,J)..GEN;1GDFTV..GDH300,301,322..4D..(PSOB,SG)..(AGT,ARL,GCC,GEN,NZ,TH)202011
16264DHOSE, WATER BY-PASS, NO.2
16361FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16475ACAP, RESERVE TANK
16492RING, O(FOR RADIATOR RESERVE TANK COCK)
164A0COCK ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16546PROTECTOR, RADIATOR
main16546-31010i7GRFKS..GRH300..ARL;7GRFKS..GRH300..6F..GEN;7GRFKS..GRH301..LHD..6FC..D;7GRFKS..GRH320,322..D..(ARL,GEN)201902-202208
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
(L)
main96136-54801×2i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505
(J)
16572DHOSE, RADIATOR, NO.2
main16572-11310i1GDFTV..GDH321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..LHD..GSOB;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6F;1GDFTV..GDH300,303,304,306,320,328;1GDFTV..GDH322..LHD..SG..(P,Q)..GEN;1GDFTV..GDH301,322..SG..(D,N)..(AGT,GEN,NZ,TH)201902-202504
16572ECLIP, RADIATOR HOSE, NO.2
main90466-T0024×2i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505
(L)
(J)
16711SHROUD, FAN
1703AIR CLEANER
7455CAUTION PLATE
9011906904
main90119-06904
9011906A11
main90119-06A11
90119T0526
main90119-T0526
90178T0114
main90178-T0114
9017906293
main90179-06293
30 parts on this diagram · 17 diagrams in section
