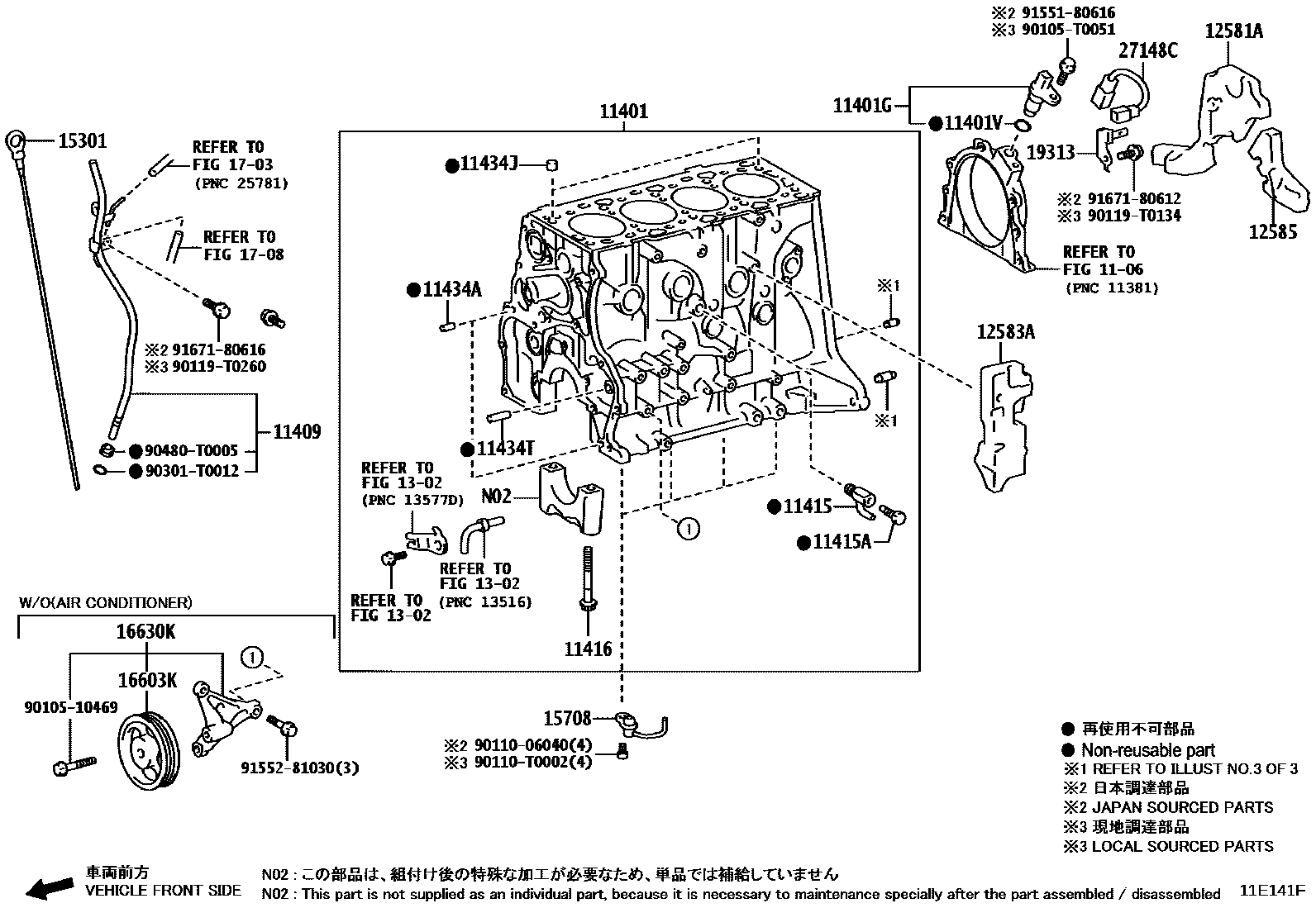

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

11401BLOCK SUB-ASSY, CYLINDER

main11401-09830i1GDFTV..GDH322,328..TH,VN201906-202003

main11401-09831i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN202003

main11401-80835i7GRFKS..GRH30#,32#201902-201911

main11401-80862i7GRFKS..GRH30#,32#201911

main11401-80871i1GDFTV..GDH300..RHD..4D..SP..6FC..GEN;1GDFTV..GDH306,322..6FC..(G,P,Q)..(ARL,GEN)202409-202505

main11401-80888i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

main11401-80A15i1GDFTV..GDH322..RHD..P..GEN202007-202106

11401GSENSOR, CRANK POSITION

main90919-05073i1GDFTV..GDH322..RHD..P..GEN202107

main90919-05098i7GRFKS..GRH30#,32#201902

11401VO-RING, CRANK POSITION SENSOR

main90301-14016i1GDFTV..GDH322..RHD..P..GEN201902-202106

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-08010i1GDFTV..GDH320,328..BZ202409

main11409-0E011i1GDFTV..GDH322..RHD..P..GEN202107

main11409-31050i7GRFKS..GRH30#,32#201902

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52001i7GRFKS..GRH30#,32#201902-201911

LH

main90910-09128i1GDFTV..GDH322..RHD..P..GEN202107

main90910-09129i7GRFKS..GRH30#,32#201902

RH

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1GDFTV..GDH322,328..TH,VN201902-202107

main90910-T9001i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH201906

(L)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02153×7i7GRFKS..GRH30#,32#201902

main90910-02191×10i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

main90910-T2009×10i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH201906

(L)

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i7GRFKS..GRH30#,32#201902

L=12,OD=4.0

main90250-08120×2i1GDFTV..GDH322,328..TH,VN201902-202107

L=18,OD=8,(J)

main90250-T0007×2i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH201906

L=18,OD=8,(L)

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15016×2i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

main90253-T0002×2i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH201906

(L)

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(J)

main90250-T0019i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH201906

(L)

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main12581-11020i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

12583AINSULATOR, CYLINDER BLOCK, NO.3

main12583-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main12583-11020i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

12585INSULATOR, CYLINDER BROCK, NO.5

main12585-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main12585-11020i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0E040i1GDFTV..GDH328..VN;1GDFTV..GDH320,322..AGT,TH202005

(L)

main15301-11100i1GDFTV..GDH322..RHD..P..GEN202107

(J)

main15301-31180i7GRFKS..GRH30#,32#201902

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0E010×4i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main15708-11010×4i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

main15708-31050×3i7GRFKS..GRH30#,32#201902

16603KPULLEY SUB-ASSY, IDLER

main16603-28020i7GRFKS..GRH300,301,320,322..D..(ARL,GEN)201902-202208

main16603-28050i1GDFTV..GDH322..RHD..P..GEN201902-202005

16630KPULLEY ASSY, IDLER

main16630-11010i1GDFTV..GDH322..RHD..P..GEN201902-202005

1703AIR CLEANER

→ Go to FIG 17-03

1708VACUUM PIPING

→ Go to FIG 17-08

19313BRACKET, CRANK POSITION SENSOR HARNESS

main19313-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main19313-11010i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

27148CWIRE, CONNECTING

main27148-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main27148-11010i1GDFTV..GDH322,328..TH,VN201902-202107

(J)

9010510469

main90105-10469

90105T0051

main90105-T0051

9011006040

main90110-06040

90110T0002

main90110-T0002

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90301T0012

main90301-T0012

90480T0005

main90480-T0005

9155180616

main91551-80616

9155281030

main91552-81030

9167180612

main91671-80612

9167180616

main91671-80616

35 parts on this diagram · 5 diagrams in section
