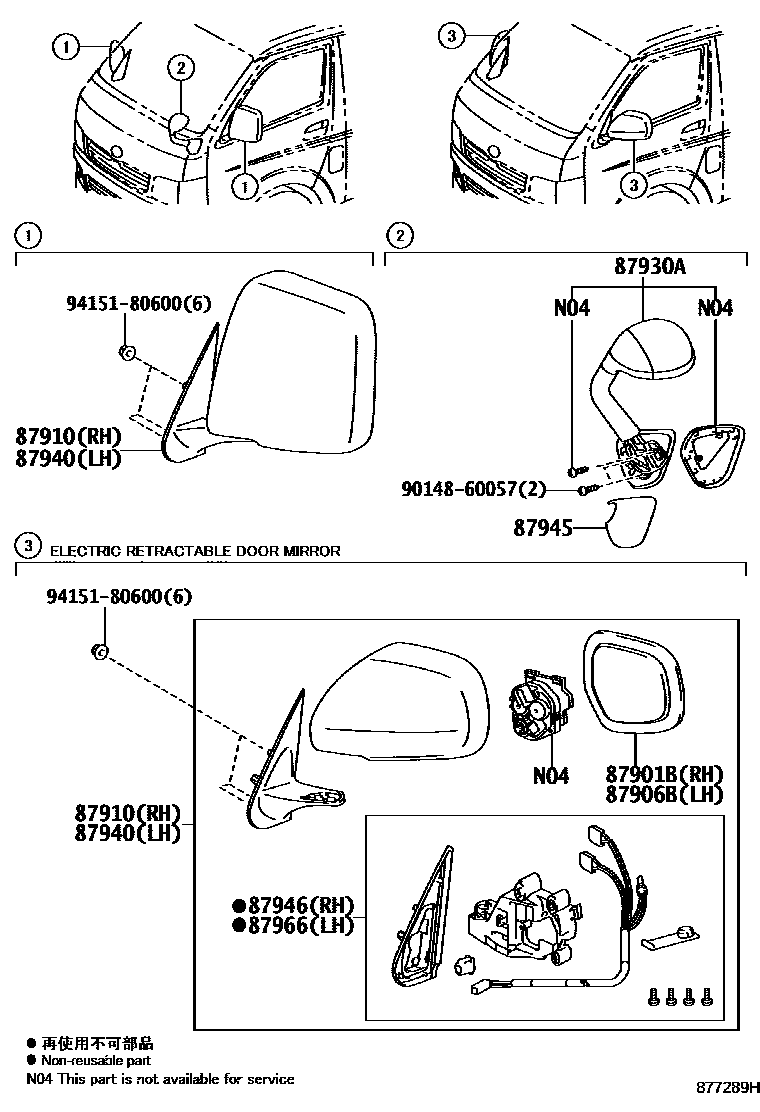

MIRROR
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-26430iKDH222,TRH223..RHD..GEN;KDH201,TRH201..RHD..SP..GEN;KDH200,202,203,212,LH20#,212,222,TRH203,213..RHD..(03S,14S,15S,16S)..(GEN,TH); TRH223..TH200709-201008
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE DOOR
PLATED
main87931-6A230iKDH200,201,TRH201..ARL;KDH200,201,TRH201..SG..06S..GEN;KDH22#,TRH22#..RHD..(03S,14S)..(ARL,GEN)200501-201312
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
PLATED
main87961-6A090iKDH200,201,TRH201..ARL;KDH200,201,TRH201..SG..06S..GEN;KDH22#,TRH22#..RHD..(03S,14S)..(ARL,GEN)200501-201312
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-26400iKDH222,TRH223..RHD..GEN;KDH200,201,TRH201..RHD..SP..(GEN,MA,TH);KDH202,203,212,LH20#,212,222,TRH200,203,213..RHD..(03S,06S,12S,14S,15S,16S)..(GEN,MA,TH)200501-201401
NO PAINT REQ.
PLATED
NO PAINT REQ.
main87910-26451iTRH223..12S,13S;TRH223..LHD..STD..GEN;KDH20#,212,222,LH20#,212,222,TRH20#,213,221..LHD..(03S,09S,10S,12S,15S,16S)..GEN; TRH223..5F..GL..GEN200501-200610
NO PAINT REQ.; NO PAINT REQ.,CHINA(PRC) SPEC; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR
NO PAINT REQ.
PLATED
NO PAINT REQ.
main87910-26480iKDH200,201,TRH201..ARL;KDH200,201,TRH201..SG..06S..GEN;KDH22#,TRH22#..RHD..(03S,14S)..(ARL,GEN)200501-201312
NO PAINT REQ.
main87910-26510iKDH222,TRH223..RHD..GEN;KDH201,TRH201..RHD..SP..GEN;KDH200,202,203,212,LH20#,212,222,TRH203,213..RHD..(03S,14S,15S,16S)..(GEN,TH); KDH222,TRH223..TH200709-201008
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE DOOR
PLATED
NO PAINT REQ.
87930AMIRROR ASSY, OUTER UNDER VIEW
87940MIRROR ASSY, OUTER REAR VIEW, LH
PLATED
NO PAINT REQ.
main87940-26560iTRH223..12S,13S;TRH223..LHD..STD..GEN;KDH20#,212,222,LH20#,212,222,TRH20#,213,221..LHD..(03S,09S,10S,12S,15S,16S)..GEN; TRH223..5F..GL..GEN200501-200610
NO PAINT REQ.; NO PAINT REQ.,CHINA(PRC) SPEC; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-DOOR MIRROR
NO PAINT REQ.
PLATED
NO PAINT REQ.
main87940-26590iKDH200,201,TRH201..ARL;KDH200,201,TRH201..SG..06S..GEN;KDH22#,TRH22#..RHD..(03S,14S)..(ARL,GEN)200501-201312
NO PAINT REQ.
main87940-26601iKDH222,TRH223..RHD..GEN;KDH200,201,TRH201..RHD..SP..(GEN,MA,TH);KDH202,203,212,LH20#,212,222,TRH200,203,213..RHD..(03S,06S,12S,14S,15S,16S)..(GEN,MA,TH)200501-201401
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.
87946RETRACTOR, OUTER MIRROR, RH
87966RETRACTOR, OUTER MIRROR, LH
9014860057
main90148-60057
9415180600
main94151-80600
10 parts on this diagram · 2 diagrams in section
