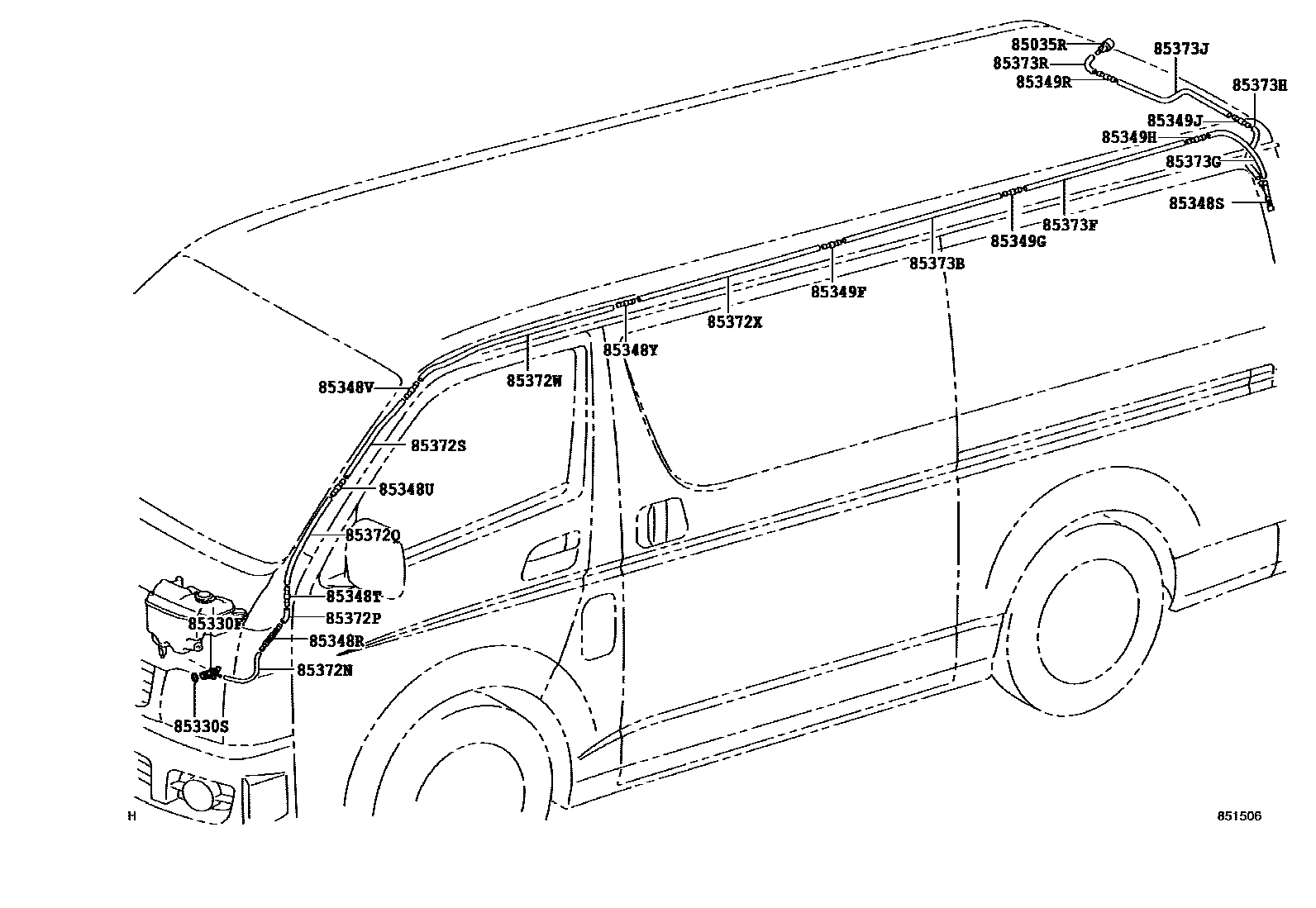

REAR WASHER

0001 1 0003 1

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-26050iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85391-26050iKDH222..RHD..GEN200501-200709

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iKDH222..RHD..GEN200501-200709

main85330-60160iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

85330SBUSH, REAR WASHER JAR

main85336-60300iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85336-60300iKDH222..RHD..GEN200501-200709

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85349-32150iKDH222..RHD..GEN200501-200709

85348SJOINT, REAR WASHER ELBOW, NO.1

main85377-26280iKDH222..RHD..GEN200501-200709

main85377-26280iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iKDH222..RHD..GEN200501-200709

main85349-89122iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iKDH222..RHD..GEN200501-200709

main85349-89122iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iKDH222..RHD..GEN200501-200709

main85349-89122iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-89122iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85349-89122iKDH222..RHD..GEN200501-200709

85349FJOINT, REAR WASHER HOSE, NO.1

main85349-89122iKDH222..RHD..GEN200501-200709

main85349-89122iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

85349GJOINT, REAR WASHER HOSE, NO.2

main85349-89122iKDH222..RHD..GEN200501-200709

main85349-89122iKDH203..14S;TRH201..SP..06S..5F;KDH201..RHD..SP..GEN;KDH202,TRH213..5F..GL..(TH,VN)200501-201205

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85349-89122iKDH212..4FC;KDH222,223..TH;KDH200..SP..06S;KDH202..GL..(GEN,MA);TRH201..SP..4FC..GEN;TRH213,223..(10S,11S,13S,15S)..(GEN,TH)200501

REAR WINDOW WIPER-WITHOUT

85349HJOINT, REAR WASHER HOSE, NO.3

main85349-89122iKDH222..RHD..GEN200501-200709

main85349-89122iKDH203..14S;TRH201..SP..06S..5F;KDH201..RHD..SP..GEN;KDH202,TRH213..5F..GL..(TH,VN)200501-201205

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85349-89122iKDH212..4FC;KDH222,223..TH;KDH200..SP..06S;KDH202..GL..(GEN,MA);TRH201..SP..4FC..GEN;TRH213,223..(10S,11S,13S,15S)..(GEN,TH)200501

REAR WINDOW WIPER-WITHOUT

85349JJOINT, REAR WASHER HOSE, NO.4

main85349-89122iKDH222..RHD..GEN200501-200709

main85349-89122iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122iKDH201..ARL,TH;KDH222..ARL,GCC;TRH201..SP..03S;TRH213..RHD..5F;KDH201,222..LHD..GEN;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);KDH212,223..4D..(ARL,GCC,GEN,RUS,SA200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

main85349-89122iKDH222..RHD..GEN200501-200709

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKDH222..RHD..GEN200501-201205

L=1450(*H,L=260)

main90099-33080iKDH222..TH;KDH212..4FC;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,TRH223..(13S,14S,15S)..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201205

L=1450(*H,L=260),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iKDH222..TH;KDH212..4FC;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,TRH223..(13S,14S,15S)..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201205

L=1450(*H,L=260),REAR WINDOW WIPER-WITHOUT

main90099-62086iKDH222..TH;KDH212..4FC;KDH201,TRH201..RHD..SP..GEN;TRH213,223..(10S,11S,13S,15S)..(GEN,TH);KDH202,203,223,TRH200..RHD..(06S,12S,14S,16S)..(GEN,TH)201205-201401

L=260

main90099-62086iKDH222..TH;KDH212..4FC;KDH201,TRH201..RHD..SP..GEN;TRH213,223..(10S,11S,13S,15S)..(GEN,TH);KDH202,203,223,TRH200..RHD..(06S,12S,14S,16S)..(GEN,TH)201205-201401

L=260,REAR WINDOW WIPER-WITH(INTERMITTENT)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iKDH222..RHD..GEN200501-201401

L=1450(*H,L=50)

main90099-33080iKDH203..14S;KDH202..GL..TH;TRH201..SP..06S..5F;KDH201..RHD..SP..GEN200501-201401

L=1450(*H,L=50),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-62105iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=90

main90099-62105iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=90,REAR WINDOW WIPER-WITH(INTERMITTENT)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iKDH222..RHD..GEN200501-201401

L=1800(*H,L=540)

main90446-07001iKDH202..GL;KDH203..14S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S200501-201205

L=1800(*H,L=370)

main90446-07001iKDH202..GL;KDH203..14S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S200501-201205

L=1800(*H,L=370),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201312

L=1800(*H,L=300)

main90446-07001iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201312

L=1800(*H,L=300),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201312

L=1800(*H,L=540),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201312

L=1800(*H,L=300),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=1800(*H,L=1020)

main90446-07001iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=1800(*H,L=1020),REAR WINDOW WIPER-WITH(INTERMITTENT)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iTRH213..RHD..5F;KDH212,LH212..5F;TRH213..LHD..(09S,16S)200501-201312

L=1800(*H,L=400),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH222..RHD..GEN200501-201401

L=1800(*H,L=830)

main90446-07001iKDH202..GL;KDH203..14S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S200501-201205

L=1800(*H,L=370)

main90446-07001iKDH202..GL;KDH203..14S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S200501-201205

L=1800(*H,L=370),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201312

L=1800(*H,L=400)

main90446-07001iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201312

L=1800(*H,L=830),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201312

L=1800(*H,L=400),REAR WINDOW WIPER-WITHOUT

main90446-07001iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=1800(*H,L=1020)

main90446-07001iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=1800(*H,L=1020),REAR WINDOW WIPER-WITH(INTERMITTENT)

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90446-07001iKDH212..4FC;KDH222,223..TH;KDH200..SP..06S;KDH202..GL..(GEN,MA);TRH201..SP..4FC..GEN;TRH213,223..(10S,11S,13S,15S)..(GEN,TH,VN)200501-201401

L=1800(*H,L=830)

main90446-07001iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=1800(*H,L=1020)

main90446-07001iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=1800(*H,L=1020),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH203..14S;KDH202..GL..TH;TRH201..SP..06S..5F;KDH201..RHD..SP..GEN200501-201205

L=1800(*H,L=830),REAR WINDOW WIPER-WITH(INTERMITTENT)

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90446-07001iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=1800(*H,L=1020),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201..LHD;KDH201..ARL,TH;KDH201,TRH201..SG..06S;KDH200,202,203,LH20#,TRH201,203..SRF..(03S,12S,15S)..STD201205-201401

L=1800(*H,L=1020)

main90446-07001iKDH200..5F..ARL;KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH200,202..4D..4FC;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);KDH220,221,TRH203,221..03S,12S;KDH200501-201401

L=1800(*H,L=830)

main90446-07001iKDH203..14S;KDH202..GL..TH;TRH201..SP..06S..5F;KDH201..RHD..SP..GEN200501-201401

L=1800(*H,L=830),REAR WINDOW WIPER-WITH(INTERMITTENT)

85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7

main90099-62092iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=400

main90099-62092iKDH201,TRH201..RHD..SP..GEN;KDH202,203,TRH200..RHD..SRF..(06S,12S,14S)201205-201401

L=400,REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH201,202,TRH20#..SG..(06S,15S);KDH201,TRH201..03S..(ARL,GCC,SA);KDH201,202,TRH201..LHD..SRF..(03S,12S)..5F..GEN;KDH200,203,LH20#..(03S,12S,15S)..5F..(GCC,GEN,MA,S200501-201401

L=1800(*H,L=830),REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH212..4FC;KDH222,223..TH;KDH200..SP..06S;KDH202..GL..(GEN,MA);TRH201..SP..4FC..GEN;TRH213,223..(10S,11S,13S,15S)..(GEN,TH,VN)200501-201401

L=1800(*H,L=830)

85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8

main90446-07001iKDH222..RHD..GEN200501-200709

main90446-07001iKDH203..14S;TRH201..SP..06S..5F;KDH201..RHD..SP..GEN;KDH202,TRH213..5F..GL..(TH,VN)200501-201205

REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH212..4FC;KDH222,223..TH;KDH200..SP..06S;KDH202..GL..(GEN,MA);TRH201..SP..4FC..GEN;TRH213,223..(10S,11S,13S,15S)..(GEN,TH)200501

REAR WINDOW WIPER-WITHOUT

85373GHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9

main90099-33080iKDH200..5F..ARL;KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH200,202..4D..4FC;KDH222,TRH223..GL..SA;KDH220,221,TRH203,221..03S,12S;TRH213..LHD..(09S,16S)..(G200501-201205

REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iKDH222..RHD..GEN200501-200709

main90099-33080iKDH212..4FC;KDH222,223..TH;KDH200..SP..06S;KDH202..GL..(GEN,MA);TRH201..SP..4FC..GEN;TRH213,223..(10S,11S,13S,15S)..(GEN,TH)200501

REAR WINDOW WIPER-WITHOUT

85373HHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10

main90099-33080iKDH222..RHD..GEN200501-200709

main90099-33080iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

main90099-33080iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201312

REAR WINDOW WIPER-WITHOUT

85373JHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.11

main90446-07001iKDH222..RHD..GEN200501-200709

main90446-07001iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201401

REAR WINDOW WIPER-WITH(INTERMITTENT)

main90446-07001iKDH212..4FC;TRH213..(10S,11S)..(GEN,TH,VN)200501-201312

REAR WINDOW WIPER-WITHOUT

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKDH222..RHD..GEN200501-201401

L=1450(*H,L=90)

main90099-33080iKDH222..TH;KDH212..4FC;TRH223..13S,15S;KDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH203,223,TRH200..RHD..(GEN,TH);KDH202,TRH213..(10S,11S,12S)..GL..(GEN,MA,TH,VN)200501-201401

L=1450(*H,L=90),REAR WINDOW WIPER-WITH(INTERMITTENT)

26 parts on this diagram · 2 diagrams in section
