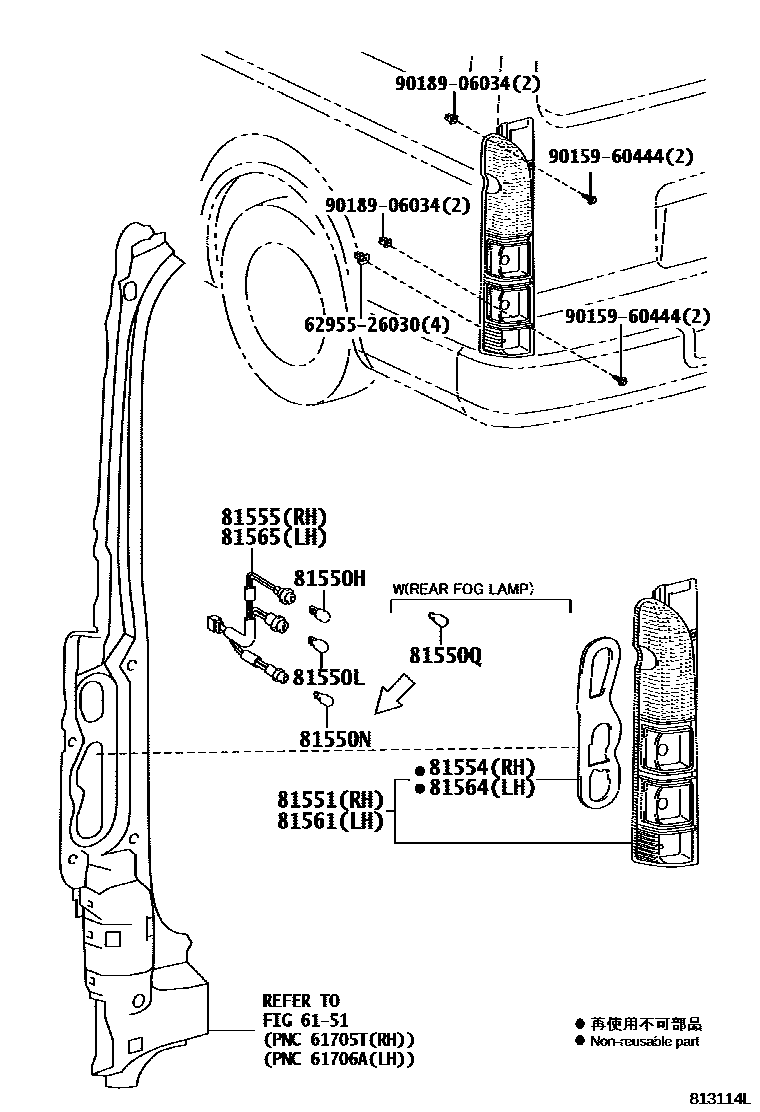

REAR COMBINATION LAMP

0001 1 0002 1

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iKDH203201312-201402

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iKDH203201312-201402

81550NBULB, BACK UP LAMP

main90981-11059iKDH222..ARL;KDH200,220..5F..ARL;TRH213,223..4FC..GCC;TRH223..LHD..5F..GEN;KDH200,202,LH202,TRH201,203,213..LHD..(SMRF,SRF)..STD..GEN; KDH223,TRH213,223..(10S,12S,13S)..(CIS,GEN,RUS)200501-201312

REAR FOG LAMP-WITH

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iKDH222..ARL;KDH200,220..5F..ARL;TRH213,223..4FC..GCC;TRH223..LHD..5F..GEN;KDH200,202,LH202,TRH201,203,213..LHD..(SMRF,SRF)..STD..GEN; KDH223,TRH213,223..(10S,12S,13S)..(CIS,GEN,RUS)200501-201312

12V 21W; 12V 21W,REAR FOG LAMP-WITH

81551LENS, REAR COMBINATION LAMP, RH

main81551-26200iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200612

main81551-26201iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#200612-201402

main81551-26420iKDH222..ARL;KDH200,220,TRH201,22#..5F..ARL200501-200610

REAR FOG LAMP-WITH

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-26200iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-26200iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200509

main81559-26200iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#200510-201402

main81555-26420iKDH222..ARL;KDH200,220,TRH201,22#..5F..ARL200501-200510

REAR FOG LAMP-WITH

main81559-26420iKDH222..ARL;KDH200,220,TRH201,22#..5F..ARL200510-200610

REAR FOG LAMP-WITH

81561LENS, REAR COMBINATION LAMP, LH

main81561-26200iKDH203..GEN;TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH200,201,202,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH,VN)200501-201402

main81561-26420iTRH213,223..LHD..(10S,12S,13S); TRH223..LHD..5F..GEN;KDH200,202,LH202,TRH20#,213..LHD..(SMRF,SRF)..STD..GEN200501-200612

REAR FOG LAMP-WITH

main81561-26421iKDH223,TRH213,223..(10S,12S,13S)..(CIS,GEN,RUS); TRH213,223..4FC..GCC;TRH223..LHD..5F..GEN;KDH200,202,LH202,TRH201,203,213..LHD..(SMRF,SRF)..STD..GEN200612-201312

REAR FOG LAMP-WITH

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-26200iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-26200iTRH213..09S,11S,16S;KDH20#,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN); TRH213..10S200501-200509

VIETNAM SPEC&WITHOUT(COLD AREA SPEC)

main81555-26420iTRH201..5D..03S..GEN;KDH20#,212,222,LH202,TRH203,213,223..LHD..(03S,12S,15S,16S)..GEN; TRH213,223..10S,12S,13S200501-200510

REAR FOG LAMP-WITH

main81565-26200iKDH203..GEN;TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH200,201,202,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH,VN)200510-201402

main81565-26420iKDH223,TRH213,223..(10S,12S,13S)..(CIS,GEN,RUS); TRH213,223..4FC..GCC;TRH223..LHD..5F..GEN;KDH200,202,LH202,TRH201,203,213..LHD..(SMRF,SRF)..STD..GEN200510-201312

REAR FOG LAMP-WITH

6295526030SEAL, ROOF SIDE VENT

main62955-26030

9015960444

main90159-60444

9018906034

main90189-06034

13 parts on this diagram · 2 diagrams in section
