MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-26070iKDH20#,LH20#,TRH20#200501-200608

NO PAINT REQ.

main75531-26071iKDH20#,LH20#,TRH20#200609-201401

NO PAINT REQ.

main75531-26080iKDH212,22#,LH212,222,TRH213,22#200501-200609

NO PAINT REQ.

main75531-26081iKDH212,22#,LH212,222,TRH213,22#200610-201402

NO PAINT REQ.

75578BCOVER, ROOF DRIP MOULDING END, REAR RH

main75578-26010iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

75579BCOVER, ROOF DRIP MOULDING END, REAR LH

main75579-26010iKDH222..TH200501-201205

75595DCOVER, ROOF DRIP SIDE MOULDING, FRONT RH

main75595-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200507

main75595-26011iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200508-200708

main75595-26012iKDH222..TH200709-201205

75596DCOVER, ROOF DRIP SIDE MOULDING, FRONT LH

main75596-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200507

main75596-26011iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200508-200708

main75596-26012iKDH222..TH200709-201205

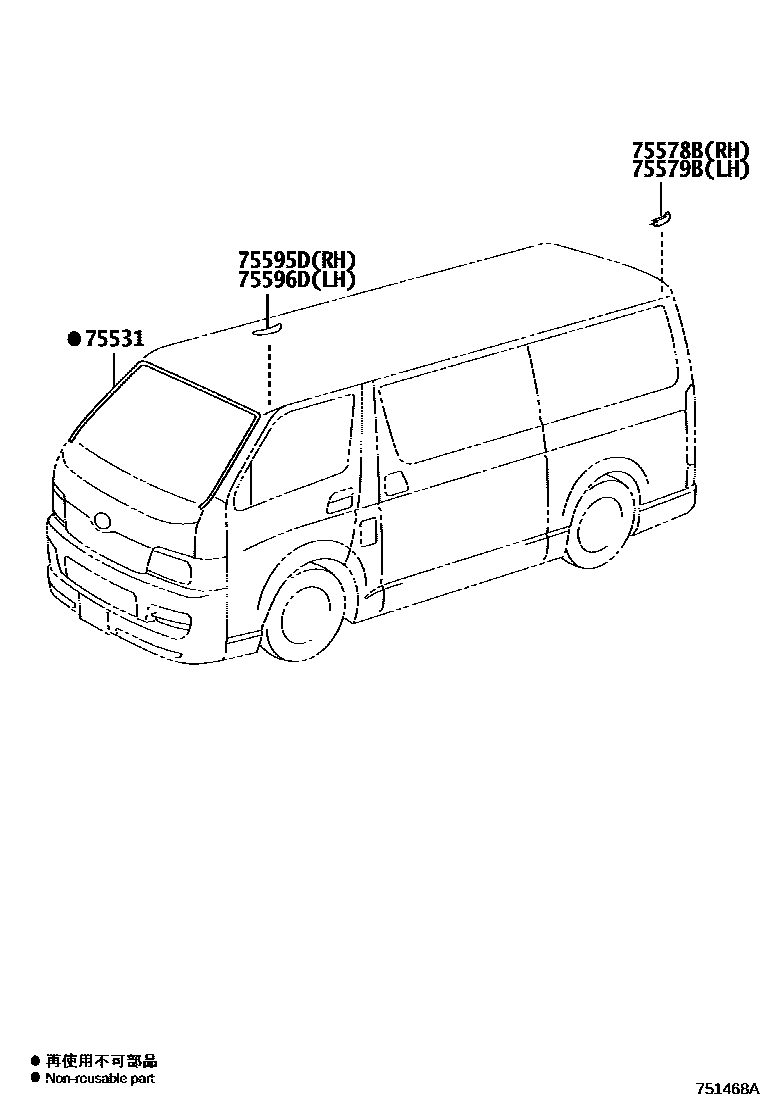

5 parts on this diagram · 1 diagram in section
