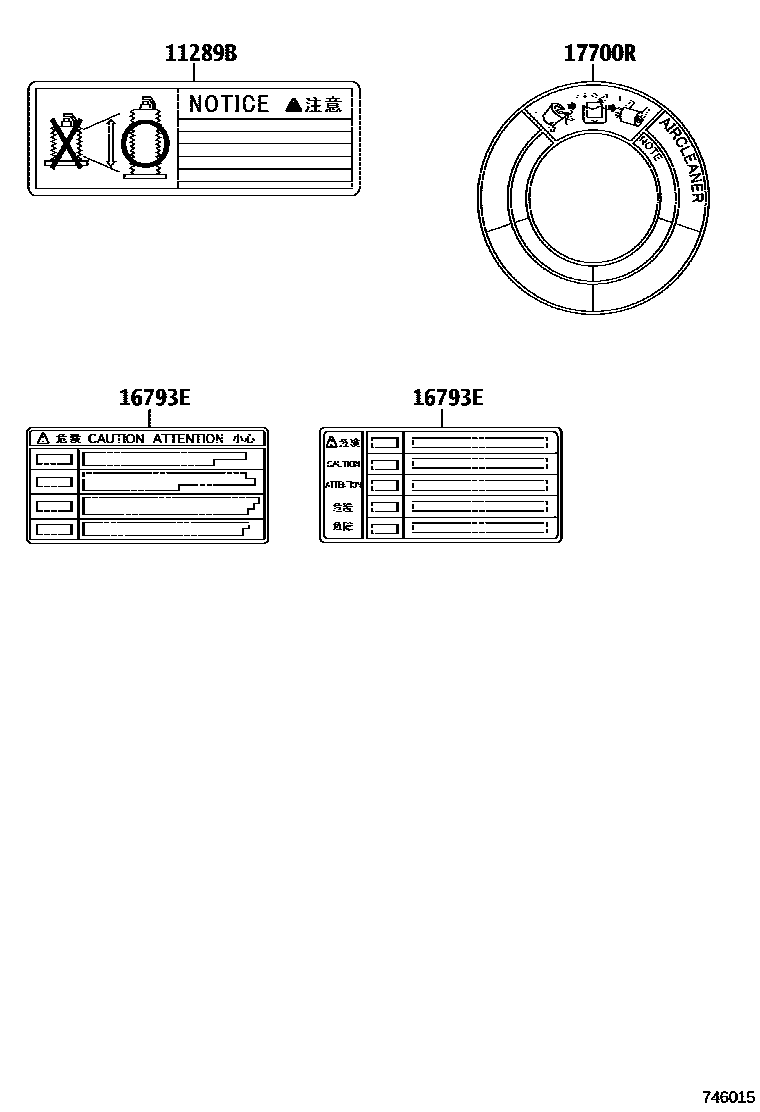

CAUTION PLATE

0001 1ENGINE ROOM(1/2) 0002 1ENGINE ROOM, EXTERIOR, INTERI0003 1ENGINE ROOM, EXTERIOR, INTERI0004 1INTERIOR(3/3)

11289BLABEL, SPARK PLUG NOTICE

main11289-0C030i2TRFE..TRH203,213..MA,VN200812-201401

main11289-31010supersedes 11289-31010i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-200812

sub11289-31011

16793ELABEL, COOLING FAN CAUTION

main16793-28020i1KDFTV,2KDFTV,5LE,2TRFE..KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200807-200903

sub16793-36040

main16793-38010supersedes 16793-38010i2TRFE..TRH223..GL;2TRFE..TRH223..ARL;2TRFE..TRH201..SP..06S;2TRFE..TRH203,213..10S,11S,12S;1KDFTV,2KDFTV,5LE,1TRFE..KDH20#,212,22#,LH20#,212,222,TRH200201205-201402

sub16793-31070

main16793-50010i1KDFTV..KDH221..ARL;2KDFTV..KDH222..GL..SA;1KDFTV..KDH201,203..RHD;2TRFE..TRH213,223..5F..GCC;2TRFE..TRH213..GEN,SA,TH,VN;2KDFTV,2TRFE..KDH222,TRH203..(12S,15S,16S)200903-201205

17700RLABEL, AIR CLEANER INFORMATION

main90917-07115i2TRFE..TRH213,223..(10S,13S)..GEN200501-201205

3 parts on this diagram · 4 diagrams in section
