EPC Data

SEAT & SEAT TRACK

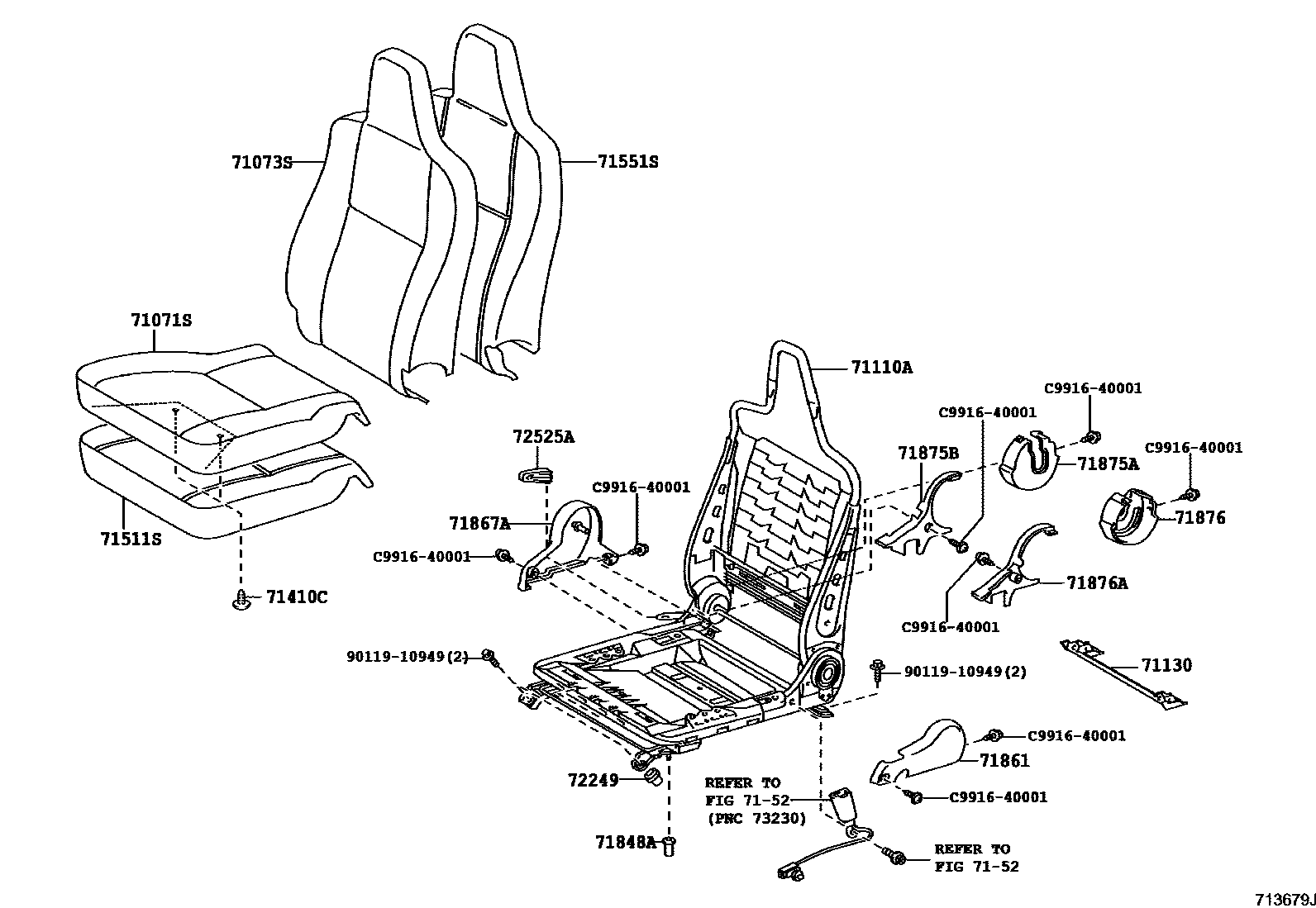

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-0L010-B0i200508-201008
GRAY,TRIM1#
main71071-0L011-B1i201008-201205
BLUISH GRAY,TRIM1#
main71071-0L031-B1i200709-201008
GRAY,TRIM1#
main71071-0L031-B2i201008-201205
GRAY,TRIM1#
main71071-0L040-B0i200602-201008
GRAY,TRIM1#
main71071-0L040-B0i200602-201008
CKD PACKAGE(THAILAND),GRAY,TRIM1#
main71071-0L041-B2i201008-201401
BLUISH GRAY,TRIM1#
main71071-0L051-B2i201309-201401
BLUISH GRAY,TRIM1#
main71071-0L060-B0i201212-201401
BLUISH GRAY,TRIM1#
main71071-26A00-B4i200501-200610
SOUTH AFRICA SPEC&SRS AIR BAG-WITHOUT,GRAY,TRIM1#
sub71071-26C00
main71071-26A00-B4i200501-201008
GRAY,TRIM1#
sub71071-26C00
main71071-26A00-B4i200501-200610
NEW ZEALAND SPEC&SRS AIR BAG-WITHOUT,GRAY,TRIM1#
sub71071-26C00
main71071-26A01-B6i201008-201106
BLUISH GRAY,TRIM1#
sub71071-26A51
main71071-26A01-B6i201008-201106
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITHOUT,BLUISH GRAY,TRIM1#
sub71071-26A51
main71071-26A01-B6i201008-201106
SRS AIR BAG-WITHOUT,BLUISH GRAY,TRIM1#
sub71071-26A51
main71071-26A01-B6i201008-201106
WITHOUT(CKD PACKAGE),BLUISH GRAY,TRIM1#
sub71071-26A51
main71071-26A10-B2i200610-200710
GRAY,TRIM1#
main71071-26A10-B2i200610-200709
THAILAND SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
main71071-26A10-B3i201106-201402
DARK GRAY,TRIM1#
main71071-26A20-B3i200501-200709
GRAY,TRIM1#
main71071-26A21-B4i200709-201008
GRAY,TRIM1#
main71071-26A21-B4i200709-201008
SRS AIR BAG-WITHOUT,GRAY,TRIM1#
main71071-26A21-B5i201008-201312
GRAY,TRIM1#
main71071-26A30-B2i200501-201008
GRAY,TRIM1#
sub71071-26C10
main71071-26A31-B3i201008-201312
BLUISH GRAY,TRIM1#
main71071-26A50-B2i200709-201008
WITHOUT(CKD PACKAGE)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
sub71071-26A52
main71071-26A50-B2i200501-201008
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
sub71071-26A52
main71071-26A50-B2i200501-201008
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
sub71071-26A52
main71071-26A50-B2i200501-201008
GRAY,TRIM1#
sub71071-26A52
main71071-26A50-B2i200709-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
sub71071-26A52
main71071-26A50-B2i200709-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),GRAY,TRIM1#
sub71071-26A52
main71071-26A50-B2i200709-201008
WITHOUT(CKD PACKAGE)&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
sub71071-26A52
main71071-26A51-B4i201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),BLUISH GRAY,TRIM1#
main71071-26A51-B4i201008-201312
BLUISH GRAY,TRIM1#
main71071-26A51-B4i201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,BLUISH GRAY,TRIM1#
main71071-26A51-B4i201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLUISH GRAY,TRIM1#
main71071-26A60-B5i200610-200709
GRAY,TRIM1#
main71071-26A61-B8i200709-201008
GRAY,TRIM1#
main71071-26A61-P0i201008-201312
GRAY,TRIM1#
main71071-26A70-B0i200501-200709
GRAY,TRIM1#
main71071-26A71-B1i200709-201008
GRAY,TRIM1#
main71071-26A72-B2i201008-201312
MEDIUM GRAY,TRIM1#
main71071-26B10-B0i200709-201008
GRAY,TRIM1#
sub71071-26A10
main71071-26B10-B0i200709-201008
SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
sub71071-26A10
main71071-26B10-B1i201008-201106
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1#
sub71071-26A10
main71071-26B10-B1i201008-201106
SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1#
sub71071-26A10
main71071-26B10-B1i201008-201106
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1#
sub71071-26A10
main71071-26B10-B1i201008-201106
DARK GRAY,TRIM1#
sub71071-26A10
main71071-26B20-B0i200601-200709
GRAY,TRIM1#
main71071-26B70-B0i201205-201312
GRAY,TRIM1#
main71071-26B70-B0i201205-201312
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71027-26040-B3i200501-201008
GRAY,TRIM1#
sub71073-26A90
main71027-26041-B4i201008-201312
BLUISH GRAY,TRIM1#
main71027-26041-B4i201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),BLUISH GRAY,TRIM1#
main71027-26041-B4i201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLUISH GRAY,TRIM1#
main71027-26041-B4i201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,BLUISH GRAY,TRIM1#
main71073-0L010-B0i200508-201008
GRAY,TRIM1#
main71073-0L011-B1i201008-201205
BLUISH GRAY,TRIM1#
main71073-0L031-B1i200709-201008
GRAY,TRIM1#
main71073-0L031-B2i201008-201205
GRAY,TRIM1#
main71073-0L040-B0i200602-201008
GRAY,TRIM1#
main71073-0L040-B0i200602-201008
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
main71073-0L040-B0i200602-201008
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
main71073-0L040-B0i200602-201008
CKD PACKAGE(THAILAND),GRAY,TRIM1#
main71073-0L041-B2i201008-201401
BLUISH GRAY,TRIM1#
main71073-0L050-B0i201212-201401
BLUISH GRAY,TRIM1#
main71073-26A00-B1i200610-201008
SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM,GRAY,TRIM1#
main71073-26A00-B1i200610-201008
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
main71073-26A00-B1i200610-201008
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
main71073-26A00-B1i200610-201008
SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
main71073-26A00-B1i200610-201008
GRAY,TRIM1#
main71073-26A00-B2i201008-201402
DARK GRAY,TRIM1#
main71073-26A10-B3i200501-200709
GRAY,TRIM1#
main71073-26A11-B6i200709-201008
GRAY,TRIM1#
main71073-26A11-B8i201008-201312
GRAY,TRIM1#
main71073-26A20-B2i200501-201008
GRAY,TRIM1#
sub71073-26B00
main71073-26A21-B3i201008-201312
BLUISH GRAY,TRIM1#
main71073-26A40-B0i200501-200709
GRAY,TRIM1#
main71073-26A41-B1i200709-201008
GRAY,TRIM1#
main71073-26A42-B3i201008-201312
MEDIUM GRAY,TRIM1#
main71073-26A70-B0i201205-201312
GRAY,TRIM1#
main71073-26A70-B0i201205-201312
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),GRAY,TRIM1#
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-0L010i200508-200512
main71110-0L020i200508-200808
sub71110-0L021
main71110-0L021i200809-201205
main71110-0L030i200709-200808
sub71110-0L031
main71110-0L031i200809-201205
main71110-0L040i201212-201401
main71110-26010i200501-200810
sub71110-26011
main71110-26011i200612-201402
main71110-26020i200501-200809
sub71110-26021
main71110-26021i200810-201312
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS)
main71110-26030i200501-200610
main71110-26031i200610-200809
sub71110-26032
main71110-26032i200810-201312
main71110-26050i200501-200610
SAUDI ARABIA SPEC&AMBURANCE BASE
main71110-26050i200512-200610
main71110-26051i200610-200809
SAUDI ARABIA SPEC&AMBURANCE BASE
sub71110-26052
main71110-26051i200610-200709
sub71110-26052
main71110-26052i200810-201312
SAUDI ARABIA SPEC&AMBURANCE BASE
main71110-26090i200501-200809
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)
sub71110-26091
main71110-26091i200810-201312
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)
71130LEG ASSY, FRONT SEAT, RH
main71130-26110i200501-201008
71410CCLIP(FOR FRONT SEAT CUSHION)
main90467-08186i200602-200610
NEW ZEALAND SPEC&SRS AIR BAG-WITHOUT
main90467-08186i200602-200610
SAUDI ARABIA SPEC&AMBURANCE BASE
main90467-08186-C0i200602-201402
BLACK
sub90467-08186
main90467-08188i200501-200602
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
main90467-08188i200501-200602
SINGAPORE SPEC
main90467-08188i200501-200602
SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER
main90467-08188i200501-200602
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main90467-08188i200501-200602
SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDEONLY)
main90467-08188i200501-200602
SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-0L010i200508-201205
main71511-0L020i200602-201401
main71511-0L030i201212-201401
main71511-26170i201008-201312
SAUDI ARABIA SPEC
main71511-26170i201008-201312
SAUDI ARABIA SPEC&AMBURANCE BASE&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM
main71511-26170i201008-201312
SAUDI ARABIA SPEC&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM
main71511-26170i201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM
main71511-26170i200501-201402
main71511-26180i200501-201312
7152
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-0L010i200508-201205
main71551-0L020i200709-201205
main71551-0L030i201212-201401
main71551-0L040i200602-201401
main71551-26270i200501-201402
main71551-26280i200501-201312
main71551-26290i200501-201312
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-26010i200501-200512
SINGAPORE SPEC
main71848-26010i200501-200512
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main71848-26010i200501-200512
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
main71848-26010i200501-201402
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-26010i200508-200512
main71861-26010-B0i200501-201008
GRAY,TRIM1#
main71861-26010-B1i201008-201402
DK.GRAY,TRIM1#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-26010i200508-200512
main71867-26010-B0i200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
main71867-26010-B0i200501-201008
GRAY,TRIM1#
main71867-26010-B0i200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#
main71867-26010-B0i200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),GRAY,TRIM1#
main71867-26010-B1i201008-201402
DK.GRAY,TRIM1#
main71867-26020-B0i200501-200610
GRAY,TRIM1#
main71867-26020-B0i200501-200610
SAUDI ARABIA SPEC&AMBURANCE BASE,GRAY,TRIM1#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-26010-B0i200501-201008
GRAY,TRIM1#
sub71875-26010
main71875-26010-B1i201008-201402
DK.GRAY,TRIM1#
sub71875-26010
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-26020-B0i200501-201008
GRAY,TRIM1#
sub71875-26020
main71875-26020-B1i201008-201402
DK.GRAY,TRIM1#
sub71875-26020
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-26010-B0i200501-201008
GRAY,TRIM1#
sub71876-26010
main71876-26010-B1i201008-201402
DK.GRAY,TRIM1#
sub71876-26010
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-26030-B0i200501-201008
GRAY,TRIM1#
sub71876-26030
main71876-26030-B1i201008-201402
DK.GRAY,TRIM1#
sub71876-26030
72249GUIDE, SEAT TRACK LOCKING
main72249-26020i200501-201402
LH SEAT
main72249-26030i200501-201402
RH SEAT
main72249-26030i200501-201401
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-26080i200508-200512
main72525-26080-B0i200501-201008
GRAY,TRIM1#
main72525-26080-B0i200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#
main72525-26080-B0i200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
main72525-26080-B0i200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),GRAY,TRIM1#
main72525-26080-B1i201008-201402
DK.GRAY,TRIM1#
9011910949
main90119-10949
C991640001
mainC9916-40001

19 parts on this diagram · 60 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
