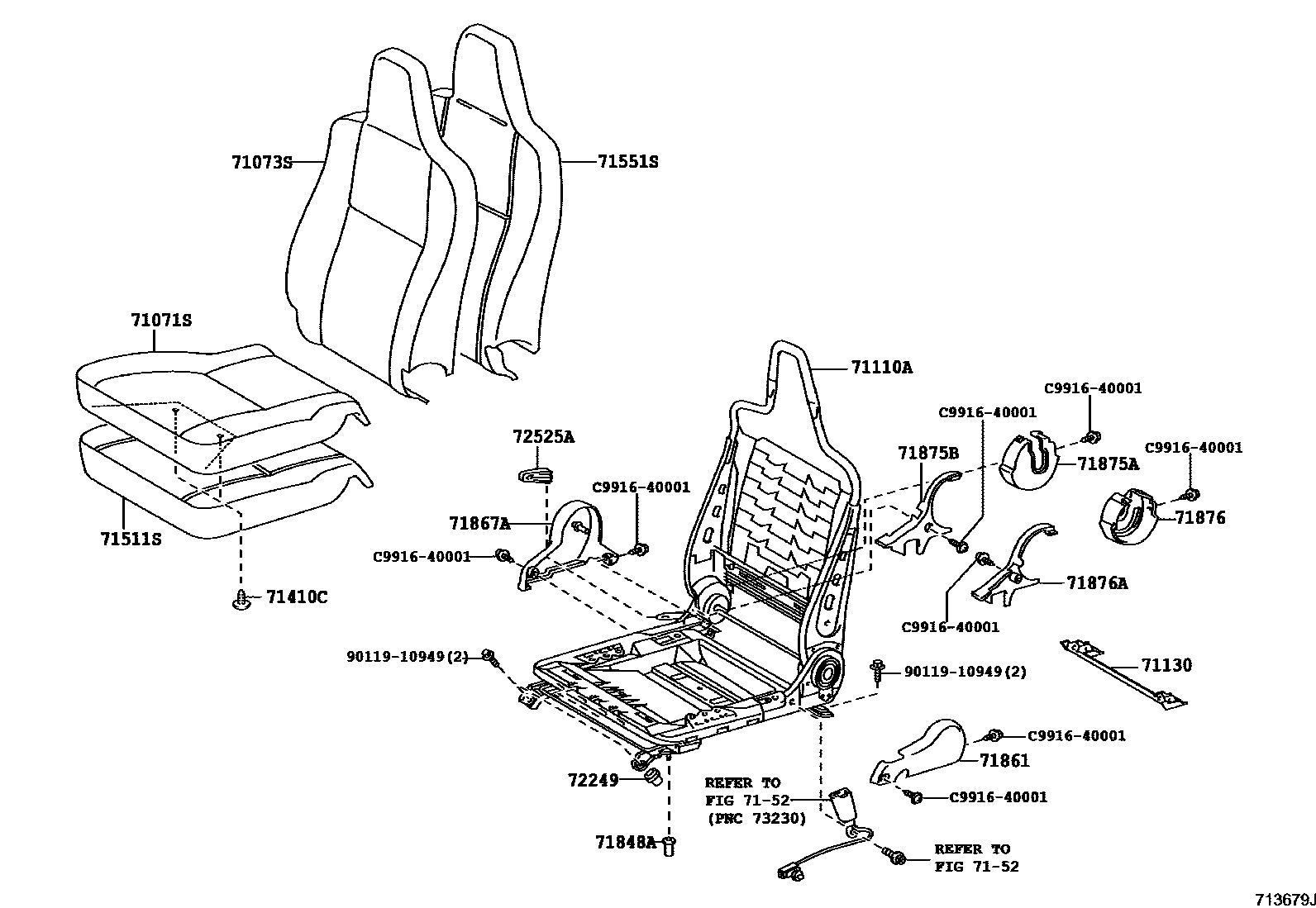

SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
main71071-26A00-B4supersedes 71071-26A50-B2iKDH201..SP..06S;KDH212,TRH213..GCC;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH220,222,LH212,222,TRH22#..STD..(GCC,GEN,TH);KDH200,212,LH20#,TRH203,213..RHD..(03S,200501-201008
GRAY,TRIM1#
sub71071-26C00
SRS AIR BAG-WITHOUT,BLUISH GRAY,TRIM1#
DARK GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
sub71071-26A52
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
DARK GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&BATTERY-65D26R X 2(VN),GRAY,TRIM1#
VIETNAM SPEC,GRAY,TRIM1#
CKD PACKAGE(THAILAND)&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER&BATTERY-85D26R X 2(55AH X 2),GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,DARK GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71027-26041-B4supersedes 71073-0L050-B0iKDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221.201008-201312
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
DARK GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
VIETNAM SPEC,GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,DARK GRAY,TRIM1#
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS)
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)
SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM
SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM
71130LEG ASSY, FRONT SEAT, RH
71410CCLIP(FOR FRONT SEAT CUSHION)
SAUDI ARABIA SPEC&AMBURANCE BASE
BLACK
main90467-08188×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S)200501-200602
SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-26270supersedes 71551-0L030iKDH212,TRH213..GCC;KDH220,222,LH212,222,TRH22#..STD..(ARL,GCC,GEN,SA);KDH202,212,TRH213..RHD..(SMRF,SRF)..(12S,15S,16S)..(GEN,SA);KDH200,201,203,221,223,LH20#,TRH20200501-201402
71848ACAP, SEAT ADJUSTER COVER, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-26010-B0iKDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22#200501-201008
GRAY,TRIM1#
DK.GRAY,TRIM1#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-26010-B0supersedes 71867-26020-B0iKDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD200501-201008
GRAY,TRIM1#
DK.GRAY,TRIM1#
GRAY,TRIM1#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
GRAY,TRIM1#
DK.GRAY,TRIM1#
VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
GRAY,TRIM1#
DK.GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER
71876COVER, RECLINING ADJUSTER INSIDE, LH
GRAY,TRIM1#
DK.GRAY,TRIM1#
VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&BATTERY-65D26R X 2(VN)
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
GRAY,TRIM1#
DK.GRAY,TRIM1#
VIETNAM SPEC&SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM
72249GUIDE, SEAT TRACK LOCKING
main72249-26020iKDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,2200501-201402
LH SEAT
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-26080-B0iKDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD200501-201008
GRAY,TRIM1#
DK.GRAY,TRIM1#
9011910949
main90119-10949
C991640001
mainC9916-40001
19 parts on this diagram · 60 diagrams in section
