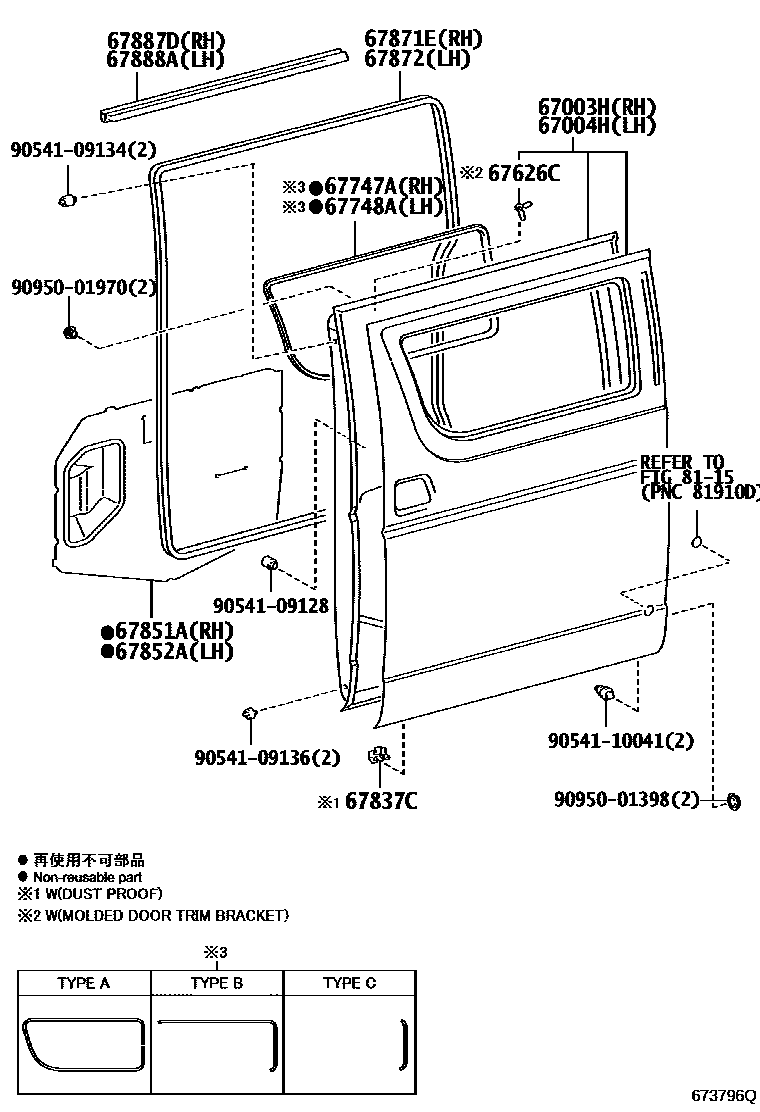

REAR DOOR PANEL & GLASS
67003HDOOR SUB-ASSY, SLIDE, RH
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
main67003-26340supersedes 67003-26330iKDH200,201,TRH200,201..06S..GEN; TRH213..LHD..STD..(GCC,GEN);KDH200,202,203,212,LH202,212,TRH201,203..LHD..SG..STD200501
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
POWER DOOR LOCK-WITHOUT
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
SAUDI ARABIA SPEC; SAUDI ARABIA SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
SAUDI ARABIA SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH); SAUDI ARABIA SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
SAUDI ARABIA SPEC; SAUDI ARABIA SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
SAUDI ARABIA SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH); SAUDI ARABIA SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)
67004HDOOR SUB-ASSY, SLIDE, LH
main67004-26640iKDH200,201,TRH200,201..06S;KDH202,203,212,LH202,212,TRH203,213..RHD..(12S,14S,15S,16S)200501-201401
*POSD(LH) & *ECS(LH)
*ECS(RH & LH) & *POSD(LH)
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC
67626CBRACKET, REAR DOOR TRIM, NO.2
67747AMOULDING, REAR DOOR TRIM, NO.2 RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
67748AMOULDING, REAR DOOR TRIM, NO.2 LH
TYPE C:REFER ILLUST.
main67746-26010iKDH222,TRH223..RHD..STD;KDH200,201,223,TRH200,201..06S,14S,16S;KDH202,203,212,220,221,LH202,212,222,TRH203,213..RHD..SG..(03S,12S,14S,15S,16S)200501-201402
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
67837CSEAL, REAR DOOR DUST PROOF
main67837-26030×4iKDH200,201,212,220,221,LH200,TRH200,201,213,221..5D..(GCC,GEN,SA,TH); KDH220,221,TRH221..ARL200501-201312
DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION
67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1
main67851-26030iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D;KDH200,202,203,212,222,LH20#,212,222,TRH201,203,213,223..LHD..4D..STD200501-201312
67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
main67851-26030iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH222,TRH223..RHD..STD;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,LH20#,212,222,TRH203,213..RHD..(03S,06S,12S,14S,15S,16S)200501-201402
67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH
main67871-26010iTRH213..GL..(GEN,TH,VN);KDH200,TRH201,213..LHD..4D..STD;KDH200,201,LH200,TRH200,201..5D;KDH202,203,212,LH20#,212,TRH203..LHD200501-201312
67872WEATHERSTRIP, REAR DOOR, LH
main67872-26020iKDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD200501-201401
67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH
main67887-26020iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
main67888-26020iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402
8115REFLEX REFLECTOR
9054109128
main90541-09128
9054109134
main90541-09134
9054109136
main90541-09136
9054110041
main90541-10041
9095001398
main90950-01398
9095001970
main90950-01970
19 parts on this diagram · 3 diagrams in section
