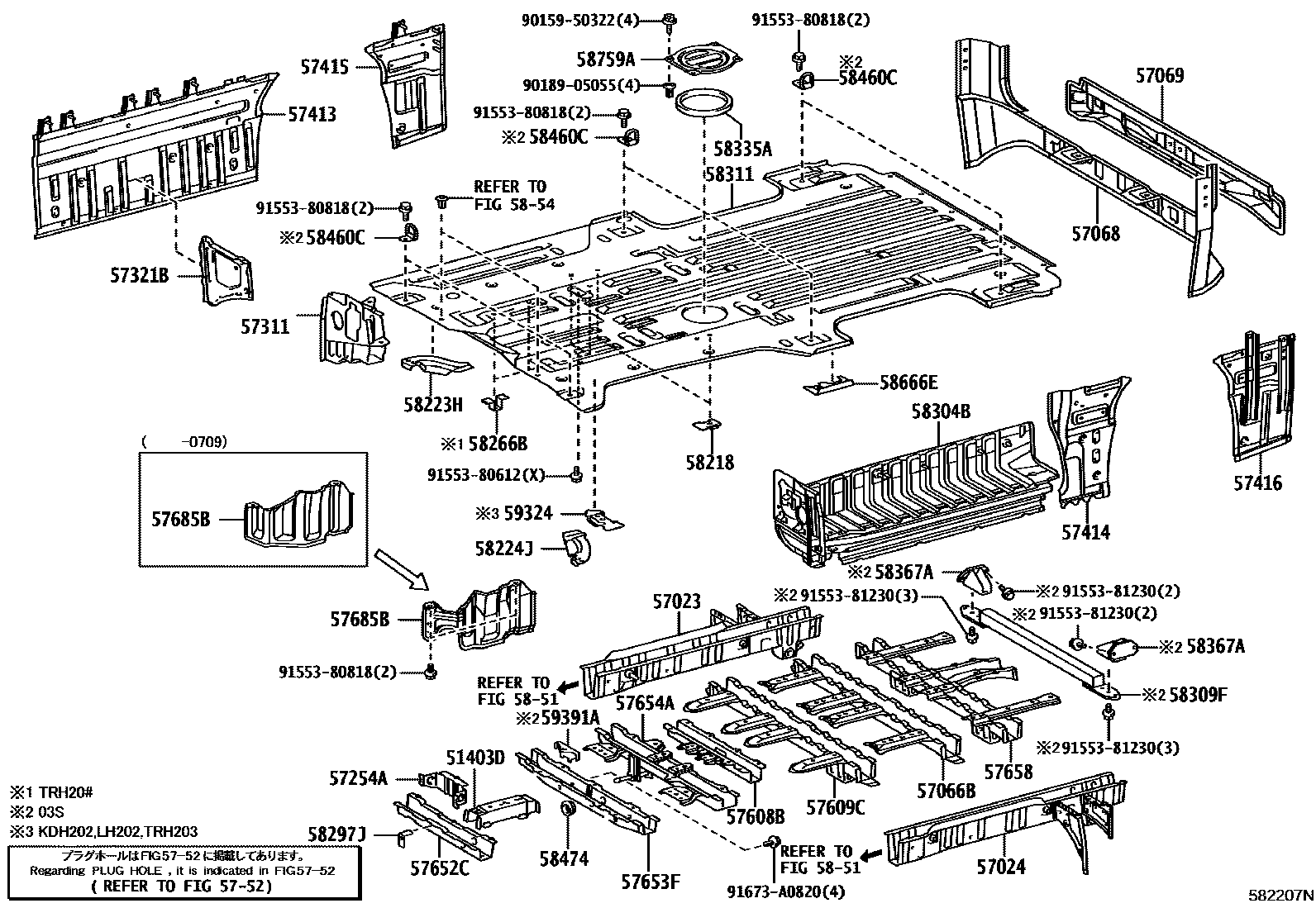

REAR FLOOR PANEL & REAR FLOOR MEMBER
51403DBRACKET SUB-ASSY, ENGINE REAR MOUNTING
57023MEMBER SUB-ASSY, REAR SIDE, RH
main57023-26640iKDH212,TRH213..GCC;TRH201,213..SG..(03S,09S);KDH212,TRH213..RHD..STD..GEN;KDH202,203,LH202,212,TRH203..SMRF,SRF200501-201401
main57023-26650iTRH221..SP..(ARL,GCC,GEN);TRH201..SRF..(ARL,GCC,GEN);KDH200,201,220,221,LH200,TRH200..ARL,GCC,GEN,TH200501-201312
main57023-26660iKDH212,TRH213..STD..VN;KDH202,212,223,TRH203,213,22#..(HRF,SMRF)..4D..(03S,10S,11S,12S,13S,15S)..(CIS,GEN,MA,RUS,SA,VN)200501-201401
main57023-26680iTRH213..4FC..GL;KDH222,LH222..ARL,GCC,GEN;KDH223,TRH223..(14S,15S,16S)..(ARL,GCC,GEN,TH)200501-201401
57024MEMBER SUB-ASSY, REAR SIDE, LH
main57024-26640iKDH212,TRH213..GCC;TRH201,213..SG..(03S,09S);KDH212,TRH213..RHD..STD..GEN;KDH202,203,LH202,212,TRH203..SMRF,SRF200501-201401
main57024-26660iTRH221..SP..(ARL,GCC,GEN);TRH201..SRF..(ARL,GCC,GEN);KDH200,201,220,221,LH200,TRH200..ARL,GCC,GEN,TH200501-201312
main57024-26670iKDH212,TRH213..STD..VN;KDH202,212,223,TRH203,213,22#..(HRF,SMRF)..4D..(03S,10S,11S,12S,13S,15S)..(CIS,GEN,MA,RUS,SA,VN)200501-201401
57066BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6
main57066-26120supersedes 57066-26130iKDH200,201,LH200,TRH201; KDH202..15S;KDH202..LHD..12S;KDH203,LH202,TRH203..SRF..(12S,15S)200501-201302
AMBURANCE BASE
main57066-26160iKDH220,TRH213,221..03S,09S; LH212..10S;KDH222..LHD..STD;LH222,TRH223..16S..STD200501-201007
AMBURANCE BASE
AMBURANCE BASE
AMBURANCE BASE
MEXICO SPEC
MEXICO SPEC
main57066-26270iKDH221,TRH223..03S,12S,13S; KDH222,223..ARL;TRH223..5F..ARL; TRH223..5F..GL..GEN200501-201007
CHINA(PRC) SPEC; NEW ZEALAND SPEC
main57066-26271iKDH221,223,TRH223..03S,12S,13S; KDH223,TRH223..ARL; TRH223..5F..GL..GEN201008-201302
CHINA(PRC) SPEC; NEW ZEALAND SPEC
main57066-26272iKDH221,223,TRH223..03S,12S,13S; KDH223,TRH223..ARL; TRH223..5F..GL..GEN201303-201312
CHINA(PRC) SPEC; NEW ZEALAND SPEC
TUNISIA SPEC
TUNISIA SPEC
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
main57068-26290iKDH220,221,LH212,TRH221..(03S,10S)..(GCC,GEN); KDH222..LHD..GEN;TRH223..4FC..STD..GCC;LH222,TRH223..STD..GEN; KDH222..LHD..STD;LH222,TRH223..16S..STD200501-201312
AMBURANCE BASE; AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
main57068-26300iKDH212,223,TRH213,223..LHD..4D..(09S,10S,11S,12S,13S); TRH223..5F..GL..GEN200501-201312
CHINA(PRC) SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
NEW ZEALAND SPEC
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
main57069-26120iKDH200,TRH201..06S..GCC;KDH200,TRH201..03S..(ARL,GCC,GEN,TH);KDH201,202,203,LH20#,TRH203..SRF..(03S,12S,14S,15S)200501-201401
main57069-26160iKDH222..LHD..GEN;LH222,TRH223..STD..GEN; TRH213..10S,15S;KDH212,220,222,TRH213,221..(03S,14S,16S)..(SA,VN);KDH212,TRH22#..SG..(03S,10S,11S,12S,13S,14S,15S)..(CIS,GEN,SA); TRH221..SP..GEN;KDH220,222..LHD..GEN;LH212,222,TRH223..5F..GEN;KDH212,TRH213..RHD..STD..GEN; TRH223..5F..GL..GEN200501-201009
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; CHINA(PRC) SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
main57069-26210iKDH212,220,222,223,TRH213,221..(03S,12S,14S,16S)..(RUS,SA,VN);KDH212,TRH213,22#..SG..(03S,10S,11S,12S,13S,14S)..(CIS,GEN,SA,VN)201009-201402
57254AREINFORCEMENT, ENGINE REAR MOUNTING MEMBER
57311OUTRIGGER, NO.1 RH
main57301-26090iKDH223,LH222,TRH223..RHD;KDH222..RHD..(ARL,GEN,SA);KDH202,212,220,221,TRH203,213..RHD..(HRF,SMRF)..4D..(03S,10S,12S,15S)200501-201402
57321BOUTRIGGER, NO.5, RH
main57321-26010iKDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH201,203,213,223..RHD..4D200501-201402
57413RAIL, FLOOR SIDE, CENTER RH
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
AMBURANCE BASE
INDONESIA HI PACKAGE
57414RAIL, FLOOR SIDE, CENTER LH
main57406-26570iKDH200,LH200,TRH201..LHD..4D; KDH202,203,LH202,212,TRH203..LHD..(10S,12S,15S)200501-201312
AMBURANCE BASE
main57406-26710supersedes 57406-26700iKDH222,TRH223..16S..GL; KDH223,TRH223..12S,13S; TRH223..5F..GL..GEN200501-201312
CHINA(PRC) SPEC&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA); REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
main57414-26510iKDH200..RHD..SP;KDH200..LHD..5D;TRH201..06S..GCC;KDH201,TRH201..SP..03S;KDH202,203,212,LH20#,212,TRH203,213..RHD..(03S,12S,14S,15S,16S)200501-201401
INDONESIA HI PACKAGE
57415RAIL, FLOOR SIDE, REAR RH
main57047-26240supersedes 57047-26250iKDH222,TRH223..16S..GL; KDH222,TRH223..GL..SA;KDH212,TRH213..4FC..GL200501-201312
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
CHINA(PRC) SPEC&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)
NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS)
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)
57416RAIL, FLOOR SIDE, REAR LH
main57048-26220supersedes 57048-26230iKDH222,TRH223..16S..GL; KDH222,TRH223..GL..SA;KDH212,TRH213..4FC..GL200501-201312
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
CHINA(PRC) SPEC&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)
NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS)
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)
5752HOLE PLUG
57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
main57608-26300iKDH200,201,LH200,TRH201; KDH202..15S;KDH202..LHD..12S;KDH203,LH202,TRH203..SRF..(12S,15S)200501-201302
AMBURANCE BASE
SAUDI ARABIA SPEC
AMBURANCE BASE
AMBURANCE BASE
AMBURANCE BASE
AMBURANCE BASE
57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
main57609-26180supersedes 57609-26190iKDH200,201,LH200,TRH201..ARL,GCC,GEN,TH; KDH202..15S;KDH202..LHD..12S;LH202,TRH203..SRF200501-201008
AMBURANCE BASE
main57609-26181iKDH200,201,203,LH200,TRH201..(03S,06S,14S)..(ARL,GCC,GEN,TH); KDH202,203,LH202,TRH203..SRF..(12S,15S)..STD; KDH202..12S..GEN201008-201302
AMBURANCE BASE; TUNISIA SPEC&AMBURANCE BASE
main57609-26182iKDH200,201,203,LH200,TRH200,201..(03S,06S,14S)..(ARL,GCC,GEN,TH); KDH202,203,LH202,TRH203..SRF..(12S,15S)..STD; KDH202..12S..GEN201303-201312
AMBURANCE BASE; TUNISIA SPEC&AMBURANCE BASE
MEXICO SPEC&EXHAUST EMISSION CONTROL-GASOLINE TIER1.5
main57609-26240iKDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN); KDH222..LHD..STD;LH222,TRH223..16S..STD200501-201007
AMBURANCE BASE
main57609-26281iKDH200,TRH201..MA,SA; KDH202..12S..GEN; TRH201..5D..03S;KDH200,LH200..GEN; TRH203..15S;KDH202,LH202..GEN201008-201302
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; TUNISIA SPEC&AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
main57609-26360iKDH212,TRH213..STD..VN;KDH212,TRH213..10S,11S,15S; LH212;KDH212,TRH213..RHD..STD..GEN200501-201007
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
main57609-26361iKDH212,LH212,TRH213..STD..GEN; KDH212,TRH213..GL;KDH212,TRH213..STD..VN201008-201302
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
main57609-26410iKDH220,221,TRH221..5D..(ARL,GCC,GEN); KDH222,LH222,TRH223..STD..(GCC,GEN)201008-201302
AMBURANCE BASE
main57609-26411iKDH220,221,TRH221..5D..(ARL,GCC,GEN); KDH222,LH222,TRH223..STD..(GCC,GEN)201303-201312
AMBURANCE BASE
main57609-26431iKDH222,TRH223..16S..GL;TRH223..12S,13S,14S,15S;KDH222,223..ARL,RUS,SA,TH201303-201402
main57609-26450iKDH220,TRH221..SP..GEN; TRH221..SG;KDH220,TRH221..SA; TRH223..16S..STD;KDH222,LH222..GEN201008-201302
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
main57609-26451iKDH220,TRH221..SP..GEN; TRH221..SG;KDH220,TRH221..SA; TRH223..16S..STD;KDH222,LH222..GEN201303-201312
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
TUNISIA SPEC
TUNISIA SPEC
TUNISIA SPEC
TUNISIA SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
TUNISIA SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
TUNISIA SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653FMEMBER, REAR FLOOR CROSS, NO.2
57654AMEMBER, REAR FLOOR CROSS, NO.3
main57607-26590iKDH20#,LH20#,TRH20#..03S,12S; KDH200,201,TRH201..SG..06S..GEN; KDH202,LH202,TRH203..15S200501-201302
AMBURANCE BASE; REAR SEAT-WITHOUT
SAUDI ARABIA SPEC
57658MEMBER, REAR FLOOR CROSS, NO.7
main57067-26100supersedes 57067-26130iKDH200,201,LH200,TRH201; KDH202..15S;KDH202..LHD..12S;KDH203,LH202,TRH203..SRF..(12S,15S)200501-201302
AMBURANCE BASE
MEXICO SPEC
main57067-26220iKDH222,223..ARL;TRH223..5F..ARL; KDH223,TRH223..12S,13S; TRH223..5F..GL..GEN200501-201302
CHINA(PRC) SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; NEW ZEALAND SPEC
CHINA(PRC) SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; NEW ZEALAND SPEC
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
AMBURANCE BASE
main57067-26250iLH212..10S;KDH222..LHD..GEN;TRH223..4FC..STD..GCC;LH222,TRH223..STD..GEN200501-201302
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
TUNISIA SPEC
TUNISIA SPEC
57685BGUARD, FUEL TANK
main57685-26010iKDH200..5F..ARL;KDH202..LHD..12S;KDH200,202..SG..(06S,15S)..GEN;KDH200,LH20#..(03S,12S,15S)..GEN; TRH20#,213; TRH213..10S..GEN; TRH221;TRH223..CIS,GCC,GEN,SA,TH; TRH223..5F..GL..GEN200501-200709
CHINA(PRC) SPEC&COLD AREA SPEC,FRONT; COLD AREA SPEC; FRONT; VIETNAM SPEC
REAR
CHINA(PRC) SPEC
58218PLATE, SEAT FLOOR PANEL
58223HREINFORCEMENT, FLOOR PANEL SIDE, RH
58224JREINFORCEMENT, FLOOR PANEL SIDE, LH
58266BBRACKET, FUEL TUBE CLAMP
58297JRETAINER, FLOOR CLAMP
58304BSTEP SUB-ASSY, REAR FLOOR, LH
main58304-26290iKDH200,202..RHD..SRF..(06S,12S,15S);KDH212,220,LH202,212,TRH203,213..RHD..(03S,15S,16S)..GEN200501-201312
COLD AREA SPEC
COLD AREA SPEC
AMBURANCE BASE&COLD AREA SPEC
COLD AREA SPEC
PAKISTAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2
CENTRAL AMERICA(4COUNTRY) SPEC&COLD AREA SPEC; CHILI SPEC&COLD AREA SPEC; COSTA RICA SPEC&COLD AREA SPEC; EL SALVADOR SPEC&COLD AREA SPEC
*POSD(LH) & *ECS(LH)
3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&COLD AREA SPEC
SOUTH AFRICA SPEC&COLD AREA SPEC
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&COLD AREA SPEC
CHILI SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&EXHAUST EMISSION CONTROL-GASOLINE EURO3; COSTA RICA SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&EXHAUST EMISSION CONTROL-GASOLINE EURO2; ECUADOR SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&EXHAUST EMISSION CONTROL-GASOLINE EURO2; EL SALVADOR SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&EXHAUST EMISSION CONTROL-GASOLINE EURO2
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&COLD AREA SPEC
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
CHILI SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&COLD AREA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3; COSTA RICA SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&COLD AREA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2; ECUADOR SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&COLD AREA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2; EL SALVADOR SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&COLD AREA SPEC&EXHAUSTEMISSION CONTROL-GASOLINE EURO2
AMBURANCE BASE
3ROOM REFRIGERATOR VAN
PAKISTAN SPEC&AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&EXHAUST EMISSION CONTROL-GASOLINE EURO2
PAKISTAN SPEC&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&COLD AREA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2
58309FBALANCER SUB-ASSY, REAR FLOOR
CKD PACKAGE(SOUTH AFRICA)
CKD PACKAGE(SOUTH AFRICA)
58311PAN, REAR FLOOR
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)
AMBURANCE BASE
REAR HEATER-WITH(FLOOR SET)
REAR SEAT-WITHOUT
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)
REAR HEATER-WITH(FLOOR SET)
REAR HEATER-WITH(FLOOR SET)
REAR HEATER-WITH(FLOOR SET)
REAR HEATER-WITH(FLOOR SET)
TUNISIA SPEC&REAR HEATER-WITH(FLOOR SET)
TUNISIA SPEC
3ROOM REFRIGERATOR VAN&REAR SEAT-WITHOUT
58335ASEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58367ABRACKET, REAR FLOOR BALANCER
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33010×4iKDH220,221..4D;KDH200,201,TRH200,201..06S; KDH221..5D;KDH200,201,220,LH200,TRH201,221..SP..03S200501
58474COVER, INSPECTION HOLE
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
5854FLOOR MAT & SILENCER PAD
58666EPLATE, REAR FLOOR, CENTER LOWER NO.2 LH
main58666-26010iKDH200,212..LHD..5D;KDH201,TRH200,201..SRF;KDH200,202,203,212,LH20#,212,TRH203,213..RHD200501-201401
58759ACOVER, FUEL TANK INSPECTION HOLE
59324BASE, SUB FLOOR LEG, NO.2
LH
LH
59391ARETAINER, REAR FLOOR, NO.1
LH
main58317-26100iKDH222,TRH223..12S,13S,14S;KDH212,223,LH212,TRH213..(10S,12S,14S,15S,16S)..(ARL,GCC,GEN,RUS,SA,VN)200501-201402
CENTER
CENTER & RH
9015950322
main90159-50322
9018905055
main90189-05055
9155380612
main91553-80612
9155380818
main91553-80818
9155381230
main91553-81230
91673A0820
main91673-A0820
45 parts on this diagram · 9 diagrams in section
