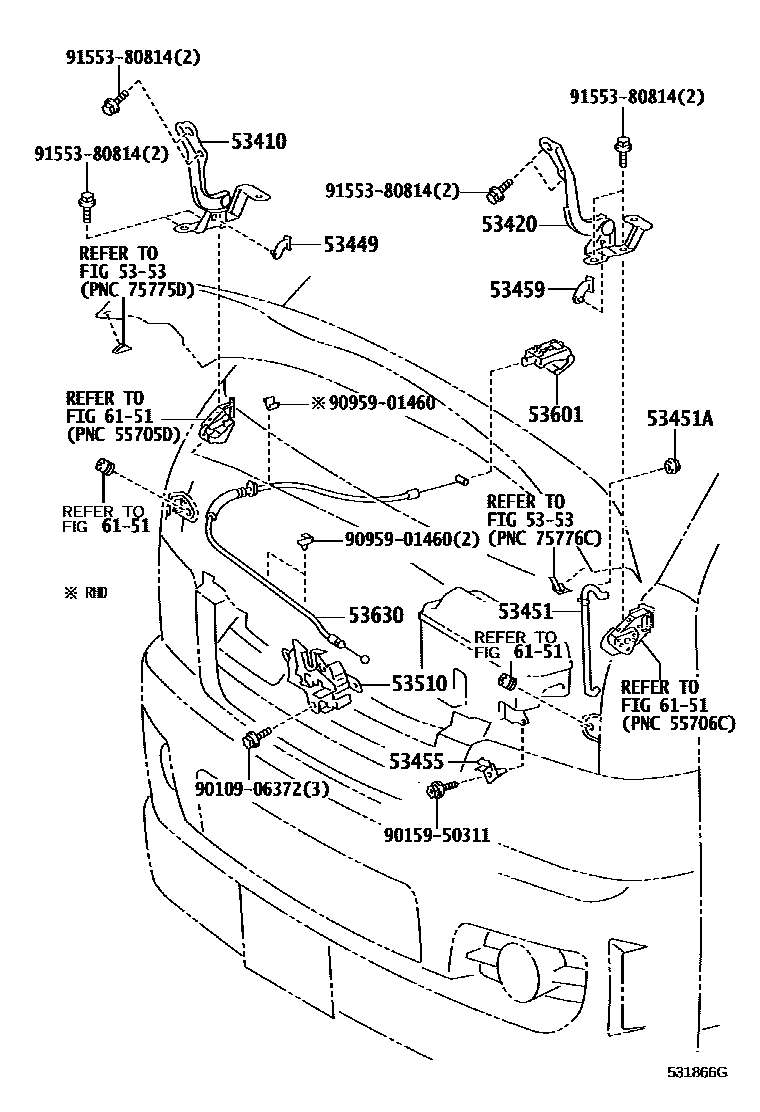

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-26040iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

53420HINGE ASSY, HOOD, LH

main53420-26040iKDH222..TH200501-201402

53449PLATE, HOOD HINGE ARM STOP, RH

main53449-26010iKDH222..TH200501-201402

53451ROD, HOOD SUPPORT

main53451-26050iKDH222..TH200501-201402

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15028iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201106

main90480-15034iKDH222..TH201107-201402

53455CLAMP, HOOD SUPPORT ROD

main53455-26020iKDH222..TH200501-201402

53459PLATE, HOOD HINGE ARM STOP, LH

main53459-26010iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

53510LOCK ASSY, HOOD

main53510-0L010iKDH200..MA;KDH202..MA,TH;KDH202..HRF..GEN;KDH203,TRH203..RHD..12S200602-201401

main53510-26060iKDH222..TH200501-201402

main53510-26070iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iKDH222..TH200501-201402

BLACK,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0L010iKDH200..MA;KDH202..MA,TH;KDH202..HRF..GEN;KDH203,TRH203..RHD..12S200602-201401

main53630-26040iKDH202..RHD..SRF..GEN;KDH200,201,203,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH)200501-201008

main53630-26041iKDH20#,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH)201008-201312

main53630-26050iKDH20#,LH20#,TRH201,203..LHD200501-201312

main53630-26060iKDH212,22#,LH212,222,TRH213,22#..RHD200501-201008

main53630-26061iKDH222..TH201008-201402

main53630-26070iKDH212,220,222,LH212,222,TRH213,22#..LHD200501-201204

main53630-26071iKDH212,220,222,223,LH212,222,TRH213,22#..LHD201205-201312

6151SIDE MEMBER

→ Go to FIG 61-51

9010906372

main90109-06372

9015950311

main90159-50311

9095901460

main90959-01460

9155380814

main91553-80814

16 parts on this diagram · 1 diagram in section
