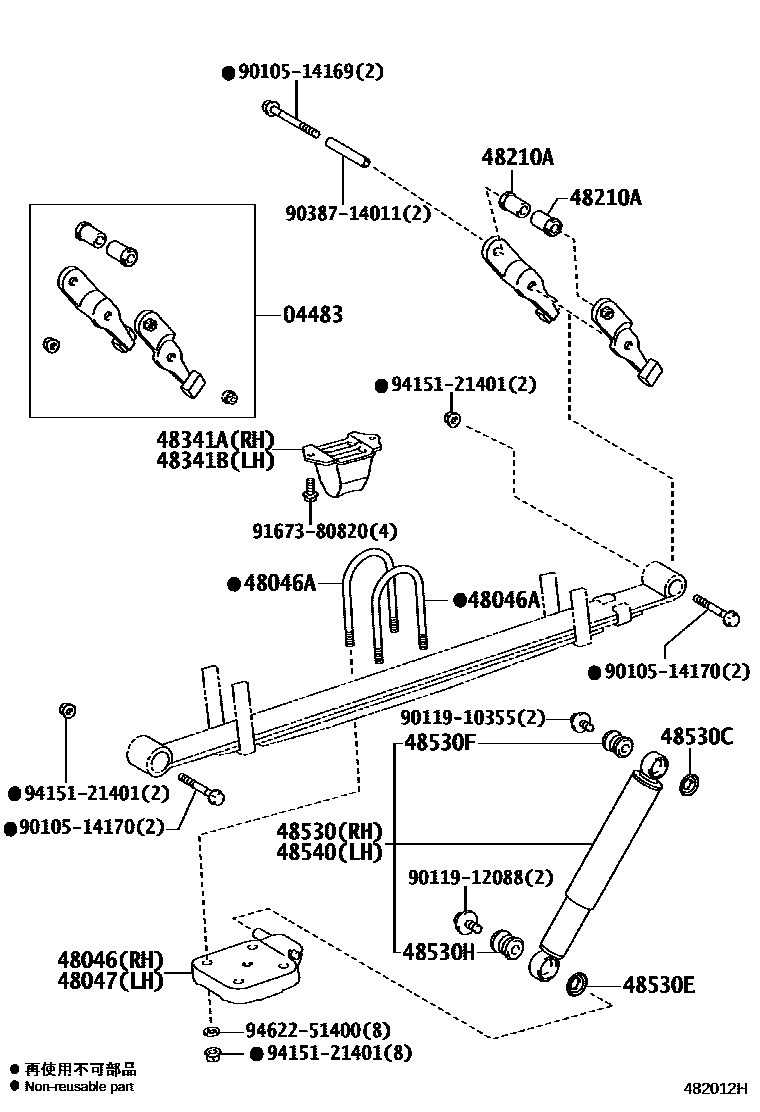

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 14-LEAF 0005 13-LEAF 0008 13-LEAF 0012 13-LEAF 0013 13-LEAF 0014 13-LEAF 0015 14-LEAF 0016 1TYPE A:3-LEAF 0020 1TYPE B:3-LEAF

04483SHACKLE KIT, REAR SPRING

main04483-26130×2iKDH20#200501-201401

main04483-26140×2iKDH220,221,TRH201,221200501-201312

main04483-26150×2iKDH212,222,223,LH20#,212,222,TRH200,203,213,223200501-201402

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26130iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48046ABOLT, U(FOR REAR SPRING)

main90117-14001×4iKDH200..ARL;TRH201..SP..4FC..GEN;KDH220..RHD..(ARL,GEN);KDH200,202,203,212,222,223,LH202,212,222,TRH203,213,223..06S,09S,10S,11S,12S,13S,14S,15S,16S200501-201402

L=170

main90117-14177×4iKDH200,201,220,221,LH200,TRH200,201,221200709-201401

L=175

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-26130iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48210SPRING ASSY, REAR RH

main48210-26A00iKDH200,201,LH200,TRH201..ARL,GCC,GEN200501-200708

3-LEAF

main48210-26A01iKDH200,201,LH200,TRH201..ARL,GCC,GEN,TH200908-201007

3-LEAF

main48210-26A02iKDH200,201,LH200,TRH200,201..ARL,GCC,GEN,TH201008-201312

3-LEAF

main48210-26A40iKDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN)200501-200708

3-LEAF

main48210-26A41iKDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN)200908-201007

3-LEAF

main48210-26A42iKDH220,221,TRH221..5D..(ARL,GCC,GEN)201008-201312

3-LEAF

main48210-26A70iTRH213..4FC200501-201007

4-LEAF

main48210-26A71iTRH213..TH201008-201312

4-LEAF

main48210-26B00iTRH213..09S;KDH212,TRH213..GCC;KDH212,TRH213..RHD..STD..GEN;KDH202,203,LH202,212,TRH203..SMRF,SRF200501-201007

3-LEAF

main48210-26B01iKDH202,203,212,LH202,212,TRH203,213..(12S,14S,15S,16S)..(GCC,GEN,TH)201008-201401

3-LEAF

main48210-26B20iKDH222,223,LH222,TRH223..(14S,15S,16S)..(ARL,GCC,GEN,TH)200501-201007

3-LEAF

main48210-26B21iKDH222,223,LH222,TRH223..(14S,15S,16S)..(ARL,GCC,GEN,TH)201008-201401

3-LEAF

main48210-26B30iKDH200,TRH201..MA,SA200602-200708

3-LEAF

main48210-26B31iKDH200,LH200,TRH201..SP..03S..GEN; KDH200,TRH201..MA,SA200908-201007

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26B32iKDH200,TRH201..MA,SA201008-201401

3-LEAF

main48210-26B40iTRH221..SG;KDH220,TRH221..SA200506-200708

3-LEAF

main48210-26B41iKDH220,TRH221..SP..GEN; TRH221..SG;KDH220,TRH221..SA200908-201007

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26B42iKDH220,TRH221..SP..GEN; TRH221..SG;KDH220,TRH221..SA201008-201312

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26B50iKDH202..15S..GEN;KDH202..LHD..12S;KDH212,TRH213..RHD..STD..GEN;LH202,212,TRH203..(SMRF,SRF)..GEN; KDH212,TRH213..STD..VN;KDH202,212,TRH203,213..(HRF,SMRF)..(10S,11S,12S,15S)..5F200501-201007

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26B51iKDH212,TRH213..STD..VN;KDH202,212,TRH203,213..(HRF,SMRF)..(10S,11S,12S)..5F201008-201401

3-LEAF

main48210-26B70iKDH222,TRH223..(12S,13S,14S)..(CIS,GEN,SA); KDH222..LHD..GEN;LH222,TRH223..5F..GEN200501-201007

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26B71iKDH222,223,TRH223..(12S,13S,14S)..GL; TRH223..STD..GCC;KDH222,LH222,TRH223..5F..GEN201008-201312

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26C31iKDH200,201,LH200,TRH201..ARL,GCC,GEN,TH200709-200908

3-LEAF

main48210-26C71iKDH220,221..ARL,GEN;TRH221..SP..(ARL,GCC,GEN)200709-200908

3-LEAF

main48210-26D21iKDH200,LH200,TRH201..SP..03S..GEN; KDH200,TRH201..MA,SA200709-200908

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26D31iKDH220,TRH221..SP..GEN; TRH221..SG;KDH220,TRH221..SA200709-200908

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26D60iKDH212..4FC200601-201007

4-LEAF

main48210-26D61iKDH212..4FC201008-201312

4-LEAF

main48210-26E90iKDH222,TRH223..STD..SA201205-201402

3-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18008×4iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-26230iKDH212,TRH213..4FC..GL200501-201312

main48341-26240iKDH212..5F;KDH20#,222,223,LH20#,212,222,TRH20#,213,223..03S,06S,09S,10S,12S,13S,14S,15S,16S200501-201402

main48341-26270iKDH220,221,TRH221200501-201312

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-26230iKDH212,TRH213..4FC..GL200501-201312

main48341-26240iKDH212..5F;KDH20#,222,223,LH20#,212,222,TRH20#,213,223..03S,06S,09S,10S,12S,13S,14S,15S,16S200501-201402

main48341-26270iKDH220,221,TRH221200501-201312

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80725iTRH223..5F..(ARL,CIS,GCC);KDH222..5F..STD..(ARL,GCC)200501-200512

MARK 48531-26780

main48531-80736iTRH223..5F..GCC;TRH223..ARL,CIS,GEN;KDH222,LH222..ARL,GCC,GEN200512-201401

MARK 48531-26860

main48531-80738iKDH222..GL;KDH222,TRH223..4FC..ARL;KDH222,LH222,TRH223..GEN; TRH223..5F..(ARL,CIS,GCC);KDH222..5F..STD..(ARL,GCC)200501-200512

MARK 48531-26870

main48531-80768supersedes 48531-80736iKDH222,TRH223..STD..SA201205-201402

MARK 48531-26A00

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03011×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)

main90385-16009×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48530HBUSH, REAR SHOCK ABSORBER

main90385-19006×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80725iKDH212..5F;KDH20#,220,221,LH20#,212,TRH20#,213,221..03S,06S,09S,10S,12S,14S,15S,16S200501-201401

MARK 48531-26780

main48531-80736iTRH223..5F..GCC;TRH223..ARL,CIS,GEN;KDH222,LH222..ARL,GCC,GEN200512-201401

MARK 48531-26860

main48531-80738iKDH222..GL;KDH222,TRH223..4FC..ARL;KDH222,LH222,TRH223..GEN; TRH223..5F..(ARL,CIS,GCC);KDH222..5F..STD..(ARL,GCC)200501-200512

MARK 48531-26870

main48531-80768supersedes 48531-80736iKDH222,TRH223..STD..SA201205-201402

MARK 48531-26A00

9010514169

main90105-14169

9010514170

main90105-14170

9011910355

main90119-10355

9011912088

main90119-12088

9038714011

main90387-14011

9167380820

main91673-80820

9415121401

main94151-21401

9462251400

main94622-51400
