Toyota 711350 — SPEEDOMETER DRIVEN GEAR (MTM)

3303EXTENSION HOUSING (MTM)

→ Go to FIG 33-03

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611G0820

91611-G0820

5 parts on this diagram · 2 diagrams in section

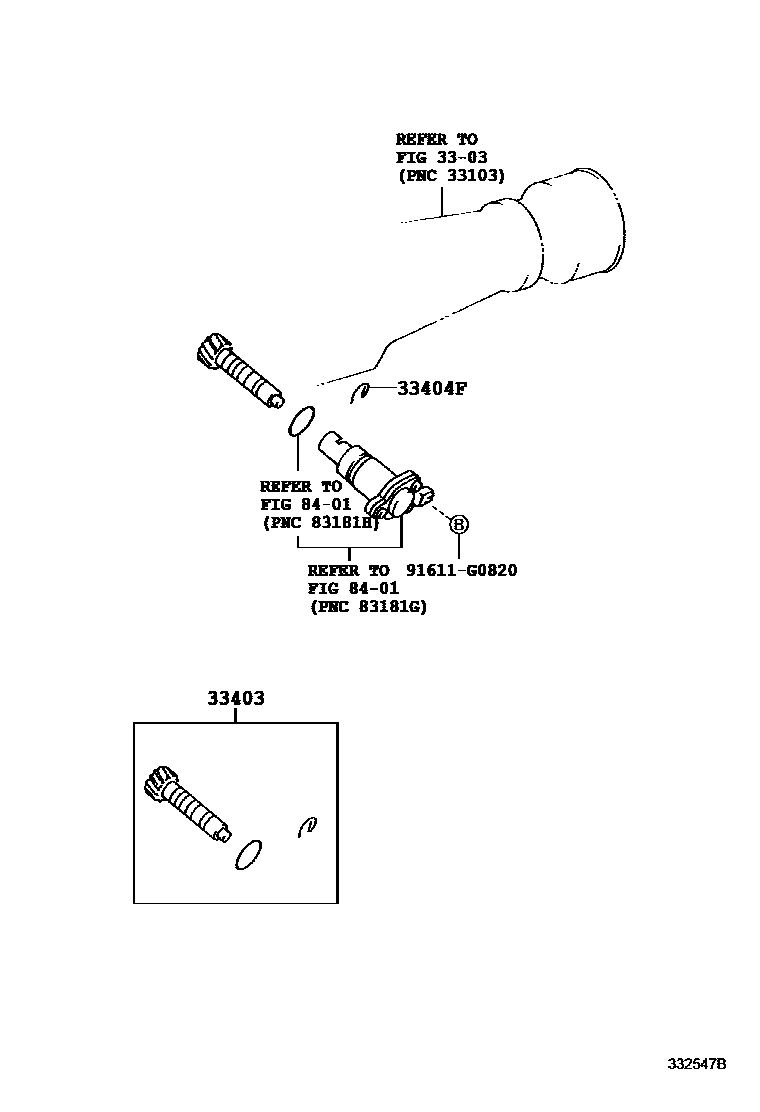

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota 711350

This section contains 5 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota 711350. Key components include: EXTENSION HOUSING (MTM), GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE), SWITCH & RELAY & COMPUTER.
