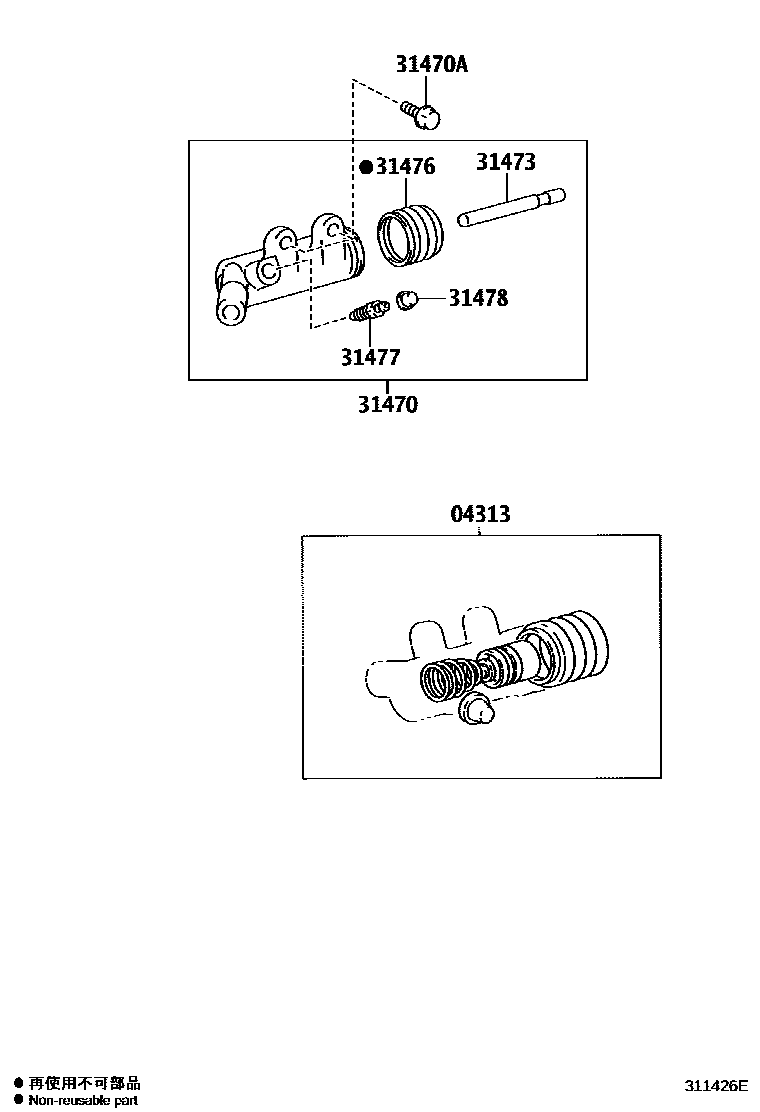

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22030iLH20#,212,222,TRH201,203,213,22#..5F200501-201402

main04313-35060iKDH202..HRF..MA;KDH201,202,203,22#..5F..(ARL,GCC,GEN,RUS,SA,TH);KDH200,212..(03S,10S,11S,16S)..5F..(GCC,GEN,MA,SA,TH,VN)200501-201402

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-26061iLH20#,212,222200501-201312

main31470-26120iTRH201,203,213,22#..5F200501-201402

main31470-60201iKDH20#,212,22#..5F200501-201402

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iLH20#,212,222,TRH201,203,213,22#..5F200501-201402

*8-1.25PX25-25

main91611-G0820×2iKDH20#,212,22#..5F200501-201402

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iLH20#,212,222200501-201312

main31473-32010iKDH20#,212,22#..5F200501-201402

main31473-35050iTRH201,203,213,22#..5F200501-201402

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F200501-201402

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F200501-201402

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F200501-201402

7 parts on this diagram · 2 diagrams in section
