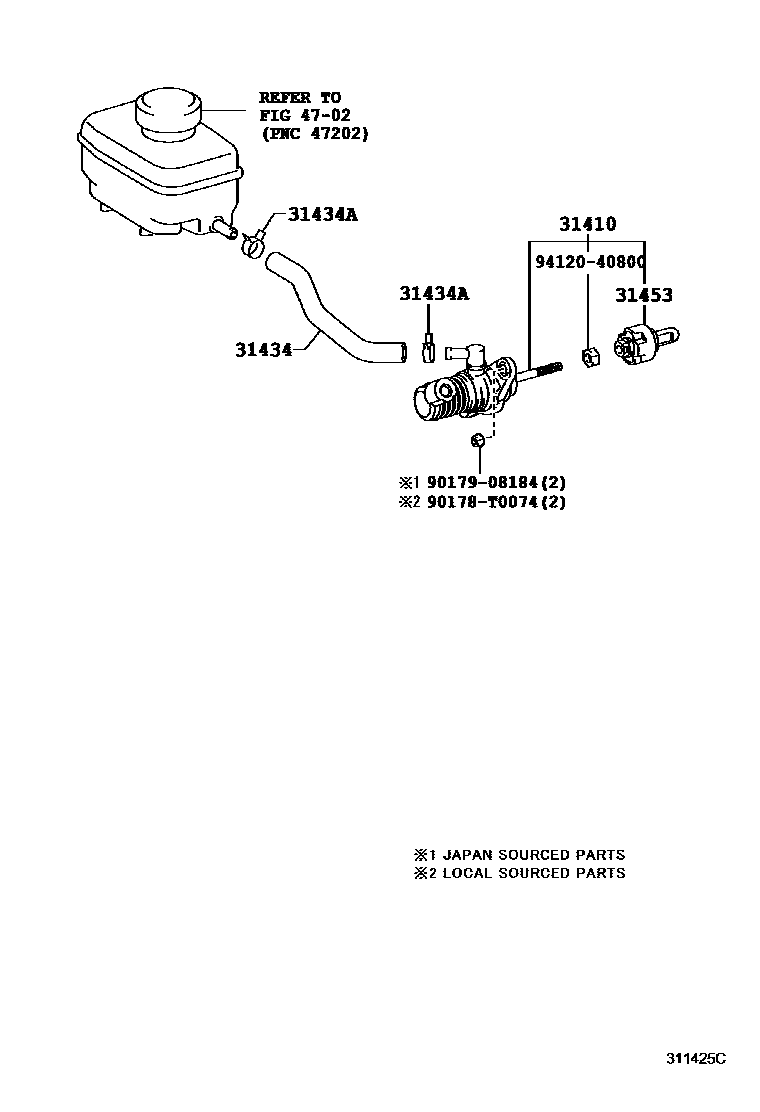

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26200iKDH203,TRH213..5F..(GCC,GEN,SA);KDH200,201,202,212,22#,LH20#,212,222,TRH201,203,22#..5F200501

31434TUBE, CLUTCH RESERVOIR

main31434-26290iKDH203..TH201309

main31434-26300iTRH213..VN200501-201205

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41500×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..5F200501-201002

main96136-41801×2iTRH213..VN201003-201205

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-26020iTRH213..VN200501-201205

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90178T0074

main90178-T0074

9017908184

main90179-08184

9412040800

main94120-40800

8 parts on this diagram · 1 diagram in section
