INJECTION NOZZLE

0001 1 0002 1 0003 1 0006 1 0008 1

11176SEAT, INJECTION NOZZLE

main11176-05010i5LE..LH212..10S200501-200810

(L)

main11176-0L010i2KDFTV..KDH212..STD200508-200801

sub11176-0L011

main11176-0L011i1KDFTV..KDH223..TH200801-201401

main11176-30010i2KDFTV..KDH212..LHD..STD..GEN200512-200710

VIETNAM SPEC

sub11176-30011

main11176-30010i2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200..RHD..4D..5F..(GEN,TH)200501-200710

CKD PACKAGE(MALAYSIA)

sub11176-30011

main11176-30010i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200710

MALAYSIA SPEC

sub11176-30011

main11176-30010i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200710

CKD PACKAGE(THAILAND)

sub11176-30011

main11176-30011i1KDFTV..KDH223..TH200710-201402

main11176-64010i5LE..LH212..10S200501-200810

(J)

2202

23670INJECTOR ASSY

main23670-09060i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-200711

sub23670-09061

main23670-09061i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200711-200905

CKD PACKAGE(THAILAND)

sub23670-39236

sub23670-39276

main23670-09360i2KDFTV..KDH222..STD..SA;2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200905-201402

main23670-09400i1KDFTV..KDH223..TH201309-201401

main23670-39095i2KDFTV..KDH212..LHD..STD..GEN200501-200710

sub23670-39096

main23670-39096i2KDFTV..KDH202..TH200710-200906

WITHOUT(CKD PACKAGE)

main23670-39165i1KDFTV..KDH201,203,221,223200610-200710

sub23670-39166

main23670-39166i1KDFTV..KDH201,203,221,223200710-200712

main23670-39265i1KDFTV..KDH201,203,221,223200801-201008

main23670-39385i1KDFTV..KDH223..TH201008-201312

main23670-39435i1KDFTV..KDH201,203..LHD201110-201312

23670ARING, O(FOR INJECTOR ASSY)

main90301-T0013i2KDFTV..KDH212..STD200508-201309

main90301-T0013i2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH200907-200910

MALAYSIA SPEC

main90301-T0013i2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH200907-200910

VIETNAM SPEC

main90301-T0013i2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH200907-200910

CKD PACKAGE(MALAYSIA)

main90301-T0013i2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH200907-200910

CKD PACKAGE(THAILAND)

main96721-19017i1KDFTV..KDH201..SP..06S200501-201402

main96721-19017i2KDFTV..KDH200..RHD..4D..5F..(GEN,TH)200501-200907

CKD PACKAGE(MALAYSIA)

main96721-19017i2KDFTV..KDH200..RHD..4D..5F..(GEN,TH)200501-200907

CKD PACKAGE(THAILAND)

main96721-19017i2KDFTV..KDH212..LHD..STD..GEN200512-200907

VIETNAM SPEC

main96721-19017i2KDFTV..KDH222..GL;2KDFTV..KDH202,222..STD..(GCC,GEN);2KDFTV..KDH200,212,220..GCC,GEN,SA,TH200910-201402

CKD PACKAGE(SOUTH AFRICA)

main96721-19017i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).200501-200907

MALAYSIA SPEC

23679SCREW, INJECTOR FOLLOW

main23679-0L010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

main23679-30020i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-201001

CKD PACKAGE(THAILAND)

sub23679-30021

main23679-30020i2KDFTV..KDH212..LHD..STD..GEN200512-201001

sub23679-30021

main23679-30021i2KDFTV..KDH220,222..STD..SA201001-201402

CKD PACKAGE(SOUTH AFRICA)

main23679-30021i1KDFTV..KDH201..SP..06S201001-201402

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010i2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH200508-201401

sub23695-30011

main23695-30010i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200809

MALAYSIA SPEC

sub23695-30011

main23695-30010i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200809

CKD PACKAGE(THAILAND)

sub23695-30011

main23695-30010i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200809

CKD PACKAGE(MALAYSIA)

sub23695-30011

main23695-30010i2KDFTV..KDH212..LHD..STD..GEN200512-200809

VIETNAM SPEC

sub23695-30011

main23695-30011i2KDFTV..KDH200..RHD..4D..5F..GEN200809-200905

WITHOUT(CKD PACKAGE)

main23695-30011i2KDFTV..KDH200..RHD..4D..5F..(GEN,TH)200809-200905

MALAYSIA SPEC

main23695-30011i2KDFTV..KDH200..RHD..4D..5F..(GEN,TH)200809-200905

VIETNAM SPEC

main23695-30011i2KDFTV..KDH200..RHD..4D..5F..(GEN,TH)200809-200905

CKD PACKAGE(MALAYSIA)

main23695-30011i2KDFTV..KDH200..RHD..4D..5F..(GEN,TH)200809-200905

CKD PACKAGE(THAILAND)

main23695-30011i2KDFTV..KDH222..TH200809-201402

main23695-30011i2KDFTV..KDH222..GL;2KDFTV..KDH202,222..STD..(GCC,GEN);2KDFTV..KDH200,212,220..GCC,GEN,SA,TH201007-201402

CKD PACKAGE(SOUTH AFRICA)

main23695-30020i1KDFTV..KDH201..SP..06S201008-201401

23742BCLAMP, INJECTION PIPE, NO.2

main23742-0L011i2KDFTV..KDH212..VN200508-201210

sub23742-0L090

main23742-0L090i2KDFTV..KDH202..TH201210-201309

WITHOUT(CKD PACKAGE)

main23742-0L090i2KDFTV..KDH200,202..MA201210

main23742-27010i2KDFTV..KDH200..TH200501-201309

CKD PACKAGE(THAILAND)

main23742-27010i2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN200501-201205

main23742-30010i1KDFTV..KDH201,203..LHD201110

23742CCLAMP, INJECTION PIPE, NO.3

main23742-0L021i2KDFTV..KDH200..MA;2KDFTV..KDH202..GL..TH;2KDFTV..KDH202..HRF..MA200508-201210

main23742-0L100i2KDFTV..KDH202..TH201210-201309

WITHOUT(CKD PACKAGE)

main23742-0L100i2KDFTV..KDH200,202..MA201210

main23742-30020i1KDFTV..KDH201..SP..06S201110

main23742-58020i2KDFTV..KDH200..TH200501-201309

CKD PACKAGE(THAILAND)

main23742-58020i2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN200501-201205

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0L010i1KDFTV..KDH223..TH200508-201401

main23760-30020i1KDFTV..KDH201..SP..06S200501-201402

main23760-54030i5LE..LH212..10S200501-200810

23760AGASKET

main90430-T0008i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

main90904-30013i1KDFTV..KDH223..TH200501-201402

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-30050i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200607

MALAYSIA SPEC

sub23770-30051

sub90401-10067

sub90430-10028

main23770-30050i2KDFTV..KDH20#..MA;2KDFTV..KDH202..HRF200501-200609

sub23770-30051

sub90401-10067

sub90430-10028

main23770-30051i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,202..SRF..MA200607-201402

main23770-30100i1KDFTV..KDH201,203,221,223200610-201008

main23770-30110i1KDFTV..KDH201,203..LHD201008-201401

main23770-30130i1KDFTV..KDH201,203..LHD201110-201312

23770BHOSE, FUEL

main23271-30330i1KDFTV..KDH201,203..LHD201110-201312

main95333-04020i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

L=200(*H,L=120),ID=4

main95333-06010i2KDFTV..KDH20#..RHD..4D..(03S,12S)..5F..GEN200501-200602

L=100,CKD PACKAGE(THAILAND)

main95333-06010i2KDFTV..KDH20#,212,22#200501-200805

L=100

main95333-06010i2KDFTV..KDH20#,212,22#200501-200602

L=100,MALAYSIA SPEC

main95333-06010i2KDFTV..KDH20#,212,22#200501-200602

L=100,CKD PACKAGE(MALAYSIA)

main95337-06010i1KDFTV..KDH201,203..LHD200602-201402

L=100

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90466-T0022i1KDFTV..KDH223..TH201207-201401

main90466-T0043i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201207

sub90466-T0022

main96132-51000i5LE..LH212..10S200501-200810

main96135-51100i2KDFTV..KDH222..TH200501-201402

9010508374

main90105-08374

90105T0023

main90105-T0023

90105T0118

main90105-T0118

9011906775

main90119-06775

90119T0306

main90119-T0306

9020910021

main90209-10021

90209T0001

main90209-T0001

9040108016

main90401-08016

9040110067

main90401-10067

90401T0001

main90401-T0001

90401T0003

main90401-T0003

9043010028

main90430-10028

90430T0007

main90430-T0007

90466T0039

main90466-T0039

9155180814

main91551-80814

9163160625

main91631-60625

9533304015

main95333-04015

9533704015

main95337-04015

9533704016

main95337-04016

9613251000

main96132-51000

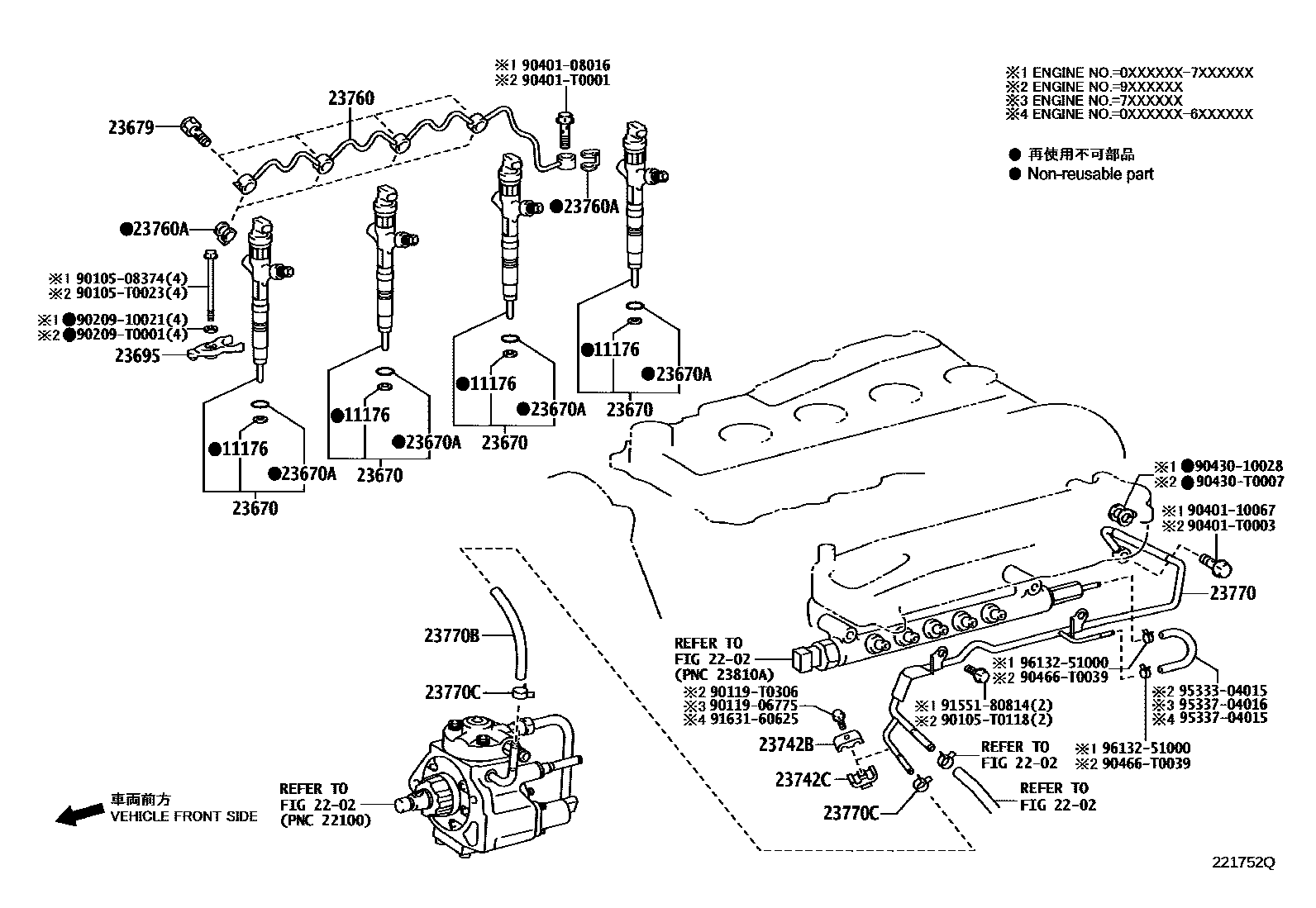

33 parts on this diagram · 5 diagrams in section
