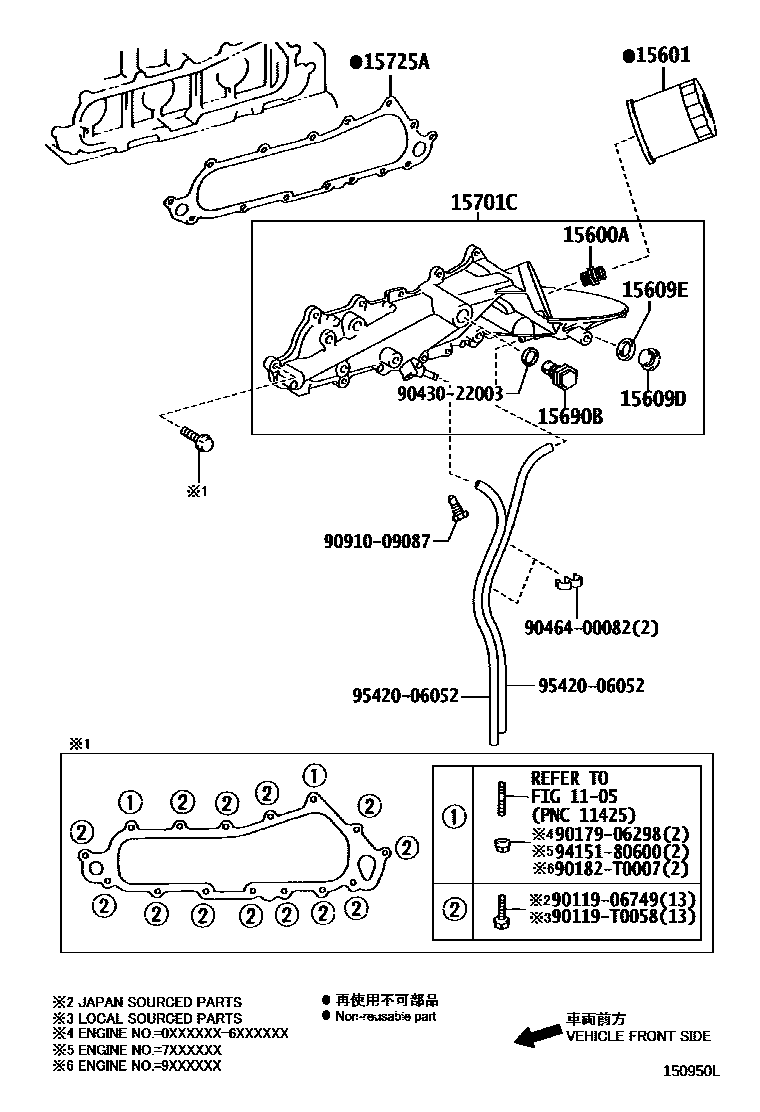

OIL FILTER

0001 1 0005 1 0007 1 0008 1 0009 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15600AUNION(FOR OIL FILTER)

main90404-19002i1KDFTV..KDH201..SP..06S201110-201402

main90404-19011i5LE..LH20#,212,222200501-200901

main90404-19015i2TRFE..TRH203,213..MA,VN200501-200808

main90404-19022i2TRFE..TRH201,203,213,22#..ARL,CIS,GCC,GEN,SA,TH200907-201402

main90404-T0002i2TRFE..TRH203,213..MA,VN200808-201401

15601FILTER SUB-ASSY, OIL

main15600-41010i5LE..LH20#,212,222..03S,12S,15S,16S200501

main90915-20003supersedes 90915-TB001i1KDFTV..KDH223..TH200501-201310

main90915-TB001i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH; 2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54014i5LE..LH20#,212,222..03S,12S,15S,16S200501

main15609-75070i2TRFE..TRH201,203,213,22#200501-201402

main15609-75080i1TRFE..TRH200201308-201312

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-16023×2i1TRFE..TRH200201308-201312

main90341-20002i1KDFTV..KDH201..SP..06S200501-201110

main90341-22002×2i2TRFE..TRH201,203,213,22#200501-201402

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KDFTV..KDH201..SP..06S200501-201110

main90430-16009×2i1TRFE..TRH200201308-201312

main90430-22011×2i2TRFE..TRH201,203,213,22#200501-201402

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KDFTV,2KDFTV..KDH20#,212,22#200501-201101

main15690-64011i2KDFTV..KDH222..TH201101-201205

15701CCOVER SUB-ASSY, OIL COOLER

main15701-30060i1KDFTV..KDH201,203,221,223200610-201008

main15701-30070i2KDFTV..KDH222..TH200501-201205

main15701-30100i1KDFTV..KDH201,223..SG;1KDFTV..KDH201,203,221..RHD..(03S,12S,14S)201008-201401

main15701-30110i1KDFTV..KDH201,203..LHD201212-201312

15725AGASKET, OIL COOLER COVER

main15725-0L010i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201401

main15725-67010i1KDFTV..KDH201..SP..06S200501-201110

9011906749

main90119-06749

90119T0058

main90119-T0058

9017906298

main90179-06298

90182T0007

main90182-T0007

9043022003

main90430-22003

9046400082

main90464-00082

9091009087

main90910-09087

9415180600

main94151-80600

9542006052

main95420-06052

18 parts on this diagram · 5 diagrams in section
