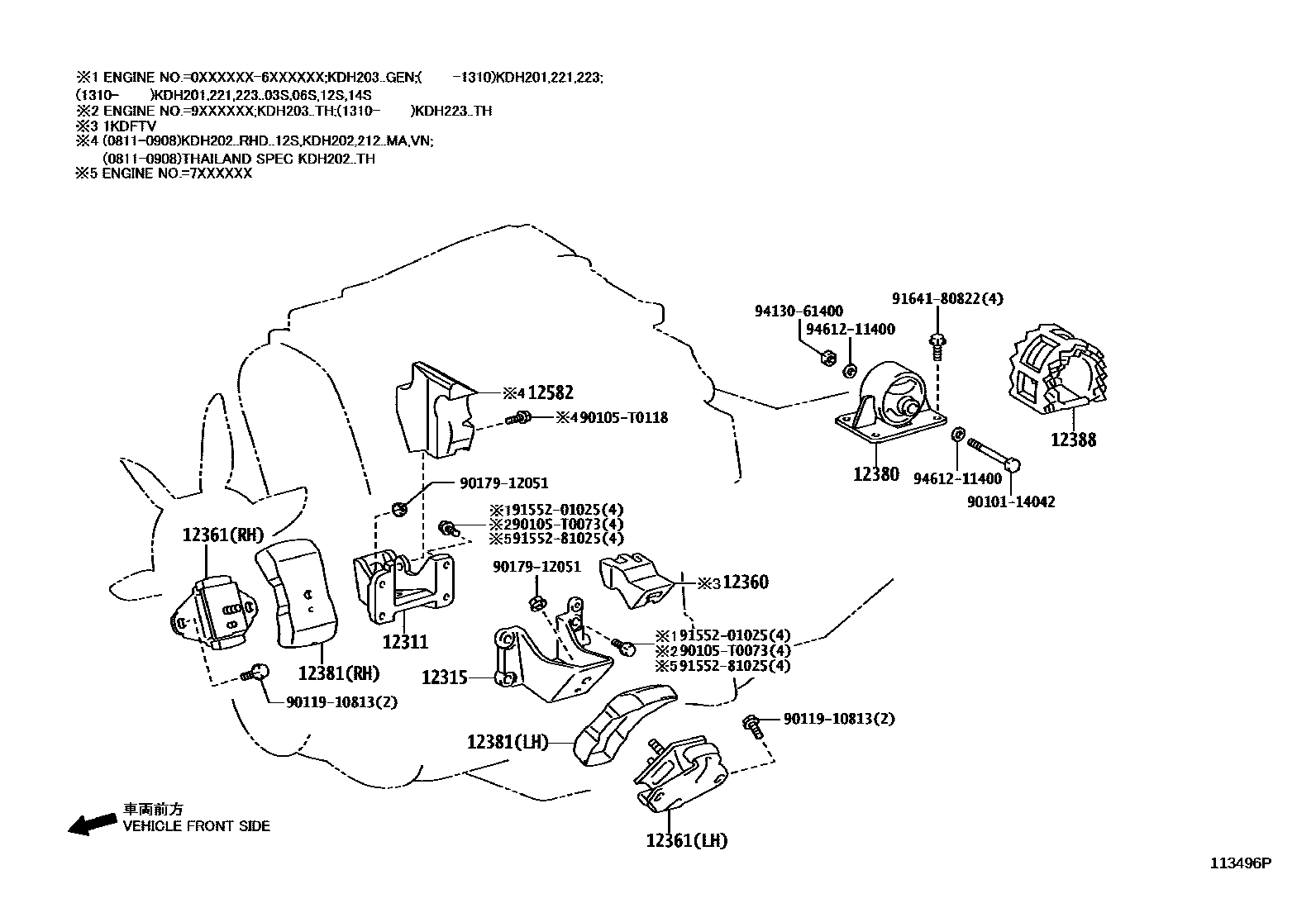

MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
main12311-0L020i2KDFTV..KDH200..TH; 2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN; 2KDFTV..KDH202..TH200811-200908
CKD PACKAGE(THAILAND); WITHOUT(CKD PACKAGE)
main12311-30070i1KDFTV,2KDFTV..KDH20#,212,22#; 2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN; 2KDFTV..KDH200..RHD..4D..5F..GEN200501-200708
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND); MALAYSIA SPEC
main12311-30071i2KDFTV..KDH202..SRF..(GCC,GEN,MA);2KDFTV..KDH202,222..HRF..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,212,220,221,223..ARL,GCC,GEN,RUS,SA,TH200708-201402
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
main12315-0L020i2KDFTV..KDH200..TH; 2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN; 2KDFTV..KDH202..TH200811-200908
CKD PACKAGE(THAILAND); WITHOUT(CKD PACKAGE)
main12315-30060i1KDFTV,2KDFTV..KDH20#,212,22#; 2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN; 2KDFTV..KDH200..RHD..4D..5F..GEN200501-200708
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND); MALAYSIA SPEC
main12315-30061i2KDFTV..KDH202..SRF..(GCC,GEN,MA);2KDFTV..KDH202,222..HRF..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,212,220,221,223..ARL,GCC,GEN,RUS,SA,TH200708-201402
12360INSULATOR ASSY, ENGINE MOUNTING, FRONT
12361INSULATOR, ENGINE MOUNTING, FRONT
RH & LH
main12361-30090i2KDFTV..KDH200..06S..GCC;2KDFTV..KDH220..SP..(GEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,221,223;2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,MA,SA)200605-200708
RH
RH
12380INSULATOR ASSY, ENGINE MOUNTING, REAR
12381STABILIZER, ENGINE MOUNTING
RH
RH
RH & LH
12388STOPPER, ENGINE MOUNTING BRACKET, REAR
main12388-67011i2KDFTV..KDH202..STD..TH;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV,2KDFTV..KDH200,201,203,212,22#; 5LE..LH20#,212,222..03S,12S,15S,16S200501
12582INSULATOR, CYLINDER BLOCK, NO.2
main12582-0L010i2KDFTV..KDH200..TH; 2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN; 2KDFTV..KDH202..TH200811-200908
CKD PACKAGE(THAILAND); WITHOUT(CKD PACKAGE)
9010114042
main90101-14042
90105T0073
main90105-T0073
90105T0118
main90105-T0118
9011910813
main90119-10813
9017912051
main90179-12051
9155201025
main91552-01025
9155281025
main91552-81025
9164180822
main91641-80822
9413061400
main94130-61400
9461211400
main94612-11400
18 parts on this diagram · 3 diagrams in section
