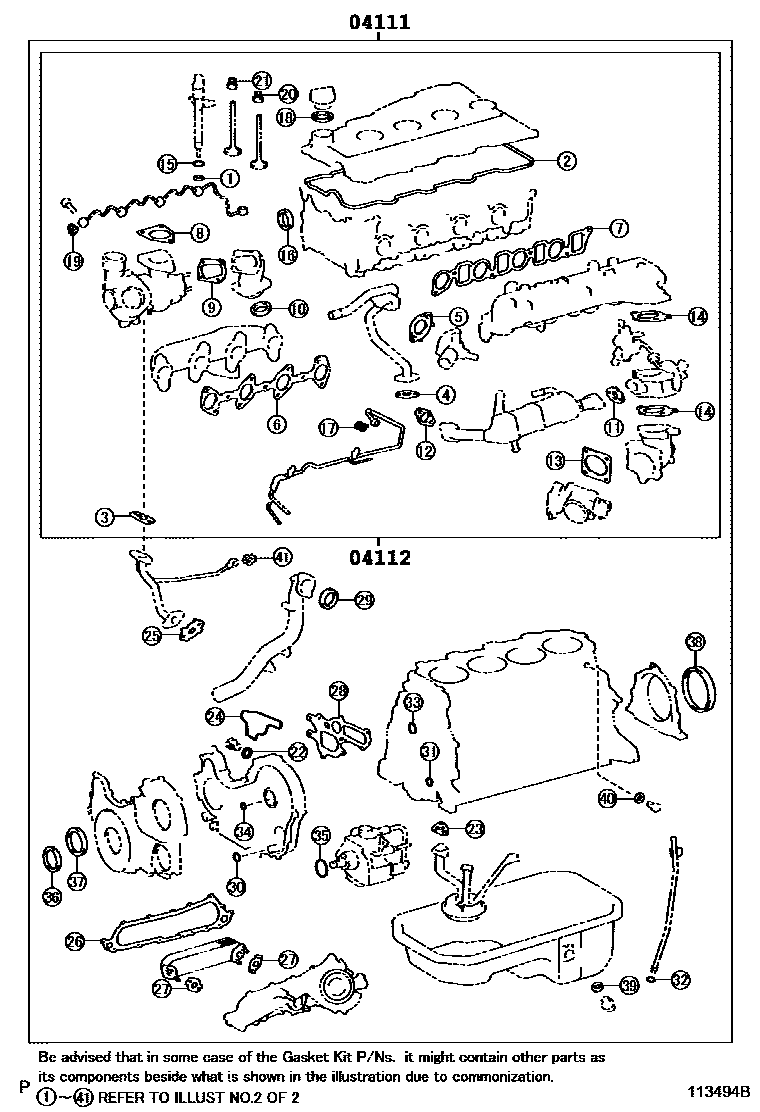

ENGINE OVERHAUL GASKET KIT
04111GASKET KIT, ENGINE OVERHAUL
VIETNAM SPEC
VIETNAM SPEC
main04111-0L131i2KDFTV..KDH200..TH; 2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200607-200904
CKD PACKAGE(THAILAND)
main04111-30570i2KDFTV..KDH22#..5F..ARL; 2KDFTV..KDH222..LHD;2KDFTV..KDH212..RHD;2KDFTV..KDH212..GCC;2KDFTV..KDH20#,212..(SMRF,SRF)..(03S,06S,11S,12S,15S)..(ARL,GCC,GEN)200501-200607
SOUTH AFRICA SPEC
WITHOUT(CKD PACKAGE)
main04111-30572i2KDFTV..KDH202,222..GCC,GEN,SA;2KDFTV..KDH200,212,220..GCC,GEN,SA,TH; 2KDFTV..KDH202..TH200710-200812
WITHOUT(CKD PACKAGE)
main04111-30573i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH222..GL..GCC;2KDFTV..KDH202,212,220,222..LHD..STD..GEN; 2KDFTV..KDH200..RHD..4D..5F..GEN; 2KDFTV..KDH202,222..GCC,GEN,SA;2KDFTV..KDH200,212,220..GCC,GEN,SA,TH; 2KDFTV..KDH202..TH200812-201005
ALGERIA SPEC; MALAYSIA SPEC&CKD PACKAGE(MALAYSIA); THAILAND SPEC&CKD PACKAGE(THAILAND); WITHOUT(CKD PACKAGE)
main04111-30574i2KDFTV..KDH200,202,212,220,222..(03S,12S,15S,16S)..(GCC,GEN); 2KDFTV..KDH200..LHD..4D;2KDFTV..KDH222..GL..GCC;2KDFTV..KDH202,212,220,222..LHD..STD..GEN; 2KDFTV..KDH200..RHD..4D..5F..GEN201005-201202
ALGERIA SPEC; MALAYSIA SPEC&CKD PACKAGE(MALAYSIA); THAILAND SPEC&CKD PACKAGE(THAILAND)
main04111-30575i2KDFTV..KDH202..LHD..15S..GEN; 2KDFTV..KDH202..TH; 2KDFTV..KDH212..GL;2KDFTV..KDH200,220,222..(03S,14S)..(SA,TH)201011-201202
PHILIPPINE SPEC; WITHOUT(CKD PACKAGE)
main04111-30576i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH222..GL..GCC;2KDFTV..KDH202,212,220,222..LHD..STD..GEN; 2KDFTV..KDH200..RHD..4D..GEN; 2KDFTV..KDH212,222..GCC,GEN,SA;2KDFTV..KDH200,202,220..STD..(GCC,GEN,SA,TH)201202-201205
ALGERIA SPEC; MALAYSIA SPEC&CKD PACKAGE(MALAYSIA); THAILAND SPEC&CKD PACKAGE(THAILAND)
main04111-30577i2KDFTV..KDH212,222..GCC,GEN,SA;2KDFTV..KDH200,202,220..STD..(GCC,GEN,SA,TH)201205-201402
main04111-75801i2TRFE..TRH213..RHD..5F;2TRFE..TRH201,213..SG..GCC;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(CIS,GCC,GEN,SA);2TRFE..TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA)200501-200704
main04111-75802i2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..(GCC,GEN);2TRFE..TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA); 2TRFE..TRH221..SG200704-200710
ECUADOR SPEC
EXHAUST EMISSION CONTROL-GASOLINE EURO2
main04111-75804i2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..(GCC,GEN);2TRFE..TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA); 2TRFE..TRH221..SG200808-200911
ECUADOR SPEC
main04111-75805i2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..(GCC,GEN);2TRFE..TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA)200911-201011
main04111-75806i2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH20#..SRF..(03S,15S)..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..(GCC,GEN)201011-201107
main04111-75807i2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH20#..SRF..(03S,15S)..5F..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..5F..(GCC,GEN)201107-201112
main04111-75808i2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..5F..(GCC,GEN);2TRFE..TRH201,203..SRF..(03S,15S)..5F..(GCC,GEN,SA)201112-201402
main04111-75960i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN); 2TRFE..TRH201..5D..03S..GEN; 2TRFE..TRH223..5F..GL..GEN; 2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..5D..03S..GEN200501-200604
CHILI SPEC; CHINA(PRC) SPEC; MEXICO SPEC
main04111-75961i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S,15S)..(ARL,GEN,TH); 2TRFE..TRH201..5D..03S..GEN; 2TRFE..TRH223..5F..GL..GEN; 2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..5D..03S..GEN200604-200704
CHILI SPEC; CHINA(PRC) SPEC; MEXICO SPEC
main04111-75963i2TRFE..TRH201,221..5D..03S..GEN; 2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,TH); 2TRFE..TRH201..5D..03S..GEN; 2TRFE..TRH203,213..LHD..(15S,16S)..GEN200710-200808
CHILI SPEC; MEXICO SPEC; PERU SPEC
main04111-75964i2TRFE..TRH201,221..5D..03S..GEN; 2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,TH); 2TRFE..TRH201..5D..03S..GEN; 2TRFE..TRH203,213..LHD..(15S,16S)..GEN200808-200911
CHILI SPEC; MEXICO SPEC; PERU SPEC
main04111-75965i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,TH); 2TRFE..TRH213..LHD..STD..GEN; 2TRFE..TRH223..5F..GL..GEN; 2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..5D..03S..GEN200911-201011
CHINA(PRC) SPEC; MEXICO SPEC; PERU SPEC
main04111-75966i2TRFE..TRH201,221..RHD..(ARL,GEN);2TRFE..TRH201,213,22#..SG..(03S,10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,TH); 2TRFE..TRH213..LHD..STD..GEN; 2TRFE..TRH223..5F..GL..GEN; 2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..SP..03S..GEN201011-201107
CHINA(PRC) SPEC; MEXICO SPEC; PERU SPEC
main04111-75967i2TRFE..TRH203,213,223..4D..4FC;2TRFE..TRH223..5F..(ARL,CIS,TH);2TRFE..TRH201,221..RHD..(ARL,GEN);2TRFE..TRH201,213,221..SG..(03S,10S,11S)..(GEN,TH); 2TRFE..TRH213..LHD..STD..GEN; 2TRFE..TRH223..5F..GL..GEN; 2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..SP..03S..GEN201107-201112
CHINA(PRC) SPEC; MEXICO SPEC; PERU SPEC
main04111-75968i2TRFE..TRH203,213,223..4D..4FC;2TRFE..TRH223..5F..(ARL,CIS,TH);2TRFE..TRH201,221..RHD..(ARL,GEN);2TRFE..TRH201,213,221..SG..(03S,10S,11S)..(GEN,TH)201112-201401
04112GASKET KIT, ENGINE VALVE GRIND
VIETNAM SPEC
main04112-0L131i2KDFTV..KDH200..TH; 2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200607-200904
CKD PACKAGE(THAILAND)
main04112-30200i2KDFTV..KDH22#..5F..ARL; 2KDFTV..KDH222..LHD;2KDFTV..KDH212..RHD;2KDFTV..KDH212..GCC;2KDFTV..KDH20#,212..(SMRF,SRF)..(03S,06S,11S,12S,15S)..(ARL,GCC,GEN)200501-200607
SOUTH AFRICA SPEC
WITHOUT(CKD PACKAGE)
main04112-30202i2KDFTV..KDH202,222..GCC,GEN,SA;2KDFTV..KDH200,212,220..GCC,GEN,SA,TH; 2KDFTV..KDH202..TH200710-200812
WITHOUT(CKD PACKAGE)
main04112-30203i2KDFTV..KDH202..TH; 2KDFTV..KDH212..GL;2KDFTV..KDH200,220,222..(03S,14S)..(SA,TH)200812-201011
WITHOUT(CKD PACKAGE)
main04112-75672i2TRFE..TRH201..06S..GCC;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..(GCC,GEN,SA); 2TRFE..TRH221..SG200710-200808
ECUADOR SPEC
main04112-75673i2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..(GCC,GEN);2TRFE..TRH20#..SRF..(03S,12S,15S)..(GCC,GEN,SA); 2TRFE..TRH221..SG200808-200911
ECUADOR SPEC
main04112-75674i2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH223..5F..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..5F..(GCC,GEN);2TRFE..TRH201,203..SRF..(03S,12S,15S)..5F..(GCC,GEN,SA)200911-201402
main04112-75681i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S,15S)..(ARL,GEN,TH); 2TRFE..TRH201..5D..03S..GEN; 2TRFE..TRH223..5F..GL..GEN; 2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..5D..03S..GEN200604-200710
CHILI SPEC; CHINA(PRC) SPEC; MEXICO SPEC
main04112-75682i2TRFE..TRH201,221..5D..03S..GEN; 2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,TH); 2TRFE..TRH201..5D..03S..GEN; 2TRFE..TRH203,213..LHD..(15S,16S)..GEN200710-200808
CHILI SPEC; MEXICO SPEC; PERU SPEC
main04112-75683i2TRFE..TRH201,221..5D..03S..GEN; 2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,TH); 2TRFE..TRH201..5D..03S..GEN; 2TRFE..TRH203,213..LHD..(15S,16S)..GEN200808-200911
CHILI SPEC; MEXICO SPEC; PERU SPEC
main04112-75684i2TRFE..TRH201,221..ARL;2TRFE..TRH203,213,223..4D..4FC;2TRFE..TRH201,213..(06S,10S,11S)..(GEN,TH);2TRFE..TRH201,22#..SG..(03S,12S,14S,15S)..5F..(ARL,CIS,GEN,TH)200911-201401
main04112-75850i2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN); 2TRFE..TRH201..5D..03S..GEN; 2TRFE..TRH223..5F..GL..GEN; 2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..5D..03S..GEN200501-200604
CHILI SPEC; CHINA(PRC) SPEC; MEXICO SPEC
2 parts on this diagram · 18 diagrams in section
