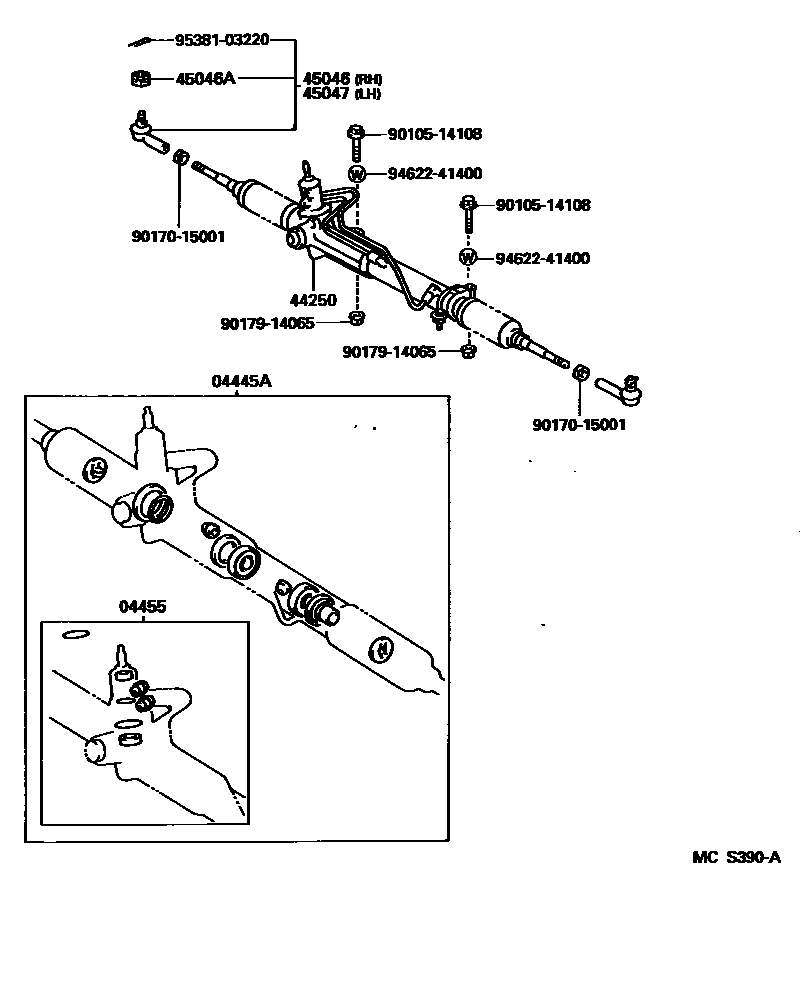

FRONT STEERING GEAR & LINK

0001 1W(POWER STEERING) 0002 1W(POWER STEERING) 0003 1W(MANUAL STEERING) 0004 1W(POWER STEERING) 0005 1W(POWER STEERING) 0006 1 0007 1 0008 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-06030iRZN140,150,VZN150199706-200009

main04445-06040iRZN140,150,VZN150200009-200409

main04445-35150iRZN140,150,VZN150199501-199706

main04445-35160iRZN19#,VZN195199802-200009

main04445-37010iRZN19#,VZN195200402-200409

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-06020iRZN140,150,VZN150199706-200009

main04455-35120iRZN140,150,VZN150199501-199706

main04455-35130iRZN19#,VZN195199802-200009

main04455-37010iRZN19#,VZN195200402-200409

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-04010iRZN140,150,VZN150199706-200009

main44250-04011iRZN140,150,VZN150200009

main44250-35020iRZN140,150,VZN150199501-199706

main44250-35041iRZN19#,VZN195199802-200008

main44250-35042iRZN19#,VZN195200008-200009

45046END SUB-ASSY, TIE ROD, RH

main45046-39285iRZN140,150,VZN150199501-200009

main45046-39295iRZN19#,VZN195200009-200409

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iRZN140,150,VZN150199501-200009

main90171-16006×2iRZN19#,VZN195199802-200009

45047END SUB-ASSY, TIE ROD, LH

main45046-39285iRZN140,150,VZN150200009-200409

main45047-39175iRZN19#,VZN195199802-200009

9010514108

main90105-14108

9017015001

main90170-15001

9017914065

main90179-14065

9462241400

main94622-41400

9538103220

main95381-03220

11 parts on this diagram · 8 diagrams in section
