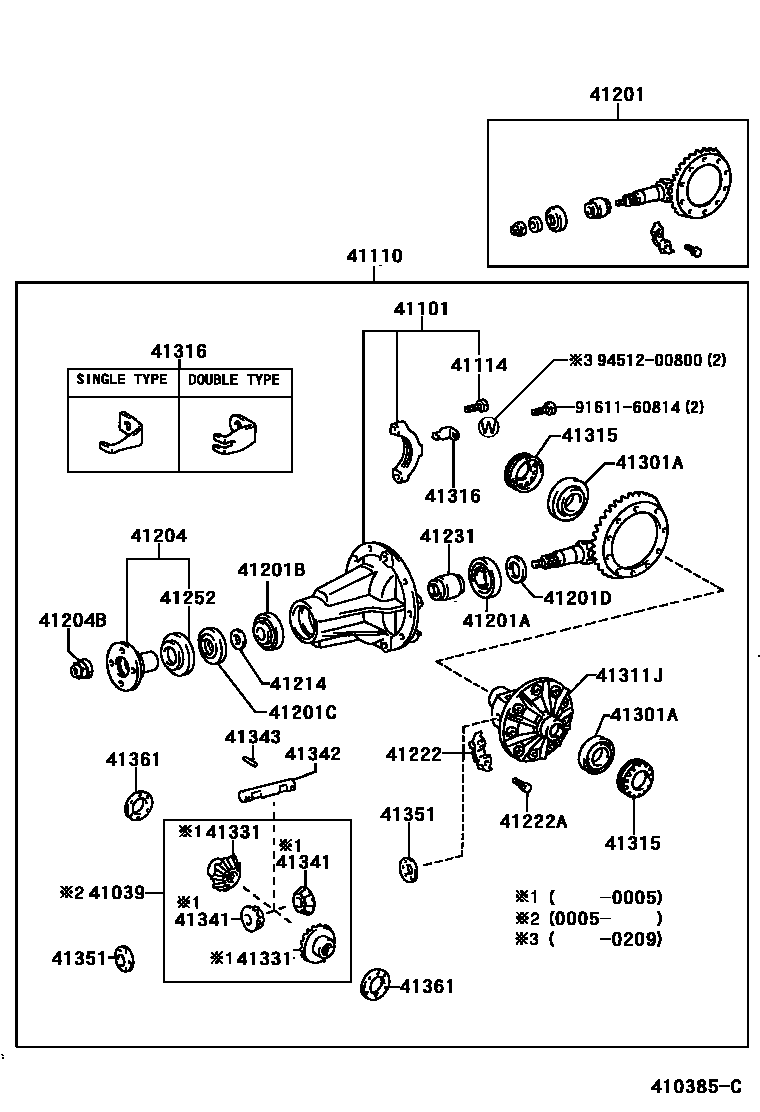

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:10=4.300
*FGR=41:12=3.415
*FGR=43:12=3.583
*FGR=41:13=3.153
*FGR=43:11=3.909
*FGR=41:10=4.100
*FGR=41:9=4.555
*FGR=43:11=3.909,W(DIFFERENTIAL LOCK)
*FGR=41:11=3.727
41114BOLT, REAR DIFFERENTIAL BEARING CAP
W(DIFFERENTIAL LOCK)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:9=4.556
*FGR=41:12=3.416
*FGR=41:13=3.153
*FGR=43:10=4.300
*FGR=41:11=3.727
*FGR=43:11=3.909
41201ABEARING (FOR REAR DRIVE PINION REAR)
W(DIFFERENTIAL LOCK)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
W(DIFFERENTIAL LOCK)
sub90311-38047
W(REAR DIFFERENTIAL LOCK)
sub90311-44007
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05
T=2.39,MARK 06
T=2.42,MARK 07
T=2.43,MARK 08
T=2.48,MARK 09
T=2.51,MARK 10
T=2.54,MARK 11
T=2.57,MARK 12
T=2.60,MARK 13
T=2.63,MARK 14
T=2.66,MARK 15
T=2.69,MARK 16
T=2.72,MARK 17
OD=47,T=1.70,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.73,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.76,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.79,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.82,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.85,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.88,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.91,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.94,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.97,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.00,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.03,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.06,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.09,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.12,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.15,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.18,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.21,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
W(DIFFERENTIAL LOCK)
41204BNUT (FOR REAR DRIVE PINION)
OD=39.5,W(REAR DIFFERENTIAL LOCK)
OD=33.5
OD=37,W(DIFFERENTIAL LOCK)
OD=34.6
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
W(DIFFERENTIAL LOCK)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
W(DIFFERENTIAL LOCK)
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
W(DIFFERENTIAL LOCK)
W(REAR DIFFERENTIAL LOCK)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
sub41301-60061
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
W(DIFFERENTIAL LOCK),RH
W(DIFFERENTIAL LOCK),LH
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
W(DIFFERENTIAL LOCK),RH
W(DIFFERENTIAL LOCK),LH
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(DIFFERENTIAL LOCK)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0
T=1.1
T=1.2
T=1.3
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=0.9,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=1.0,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=1.1,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=1.2,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=1.3,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=0.90,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54
T=0.90
T=1.00,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54
T=1.00
T=1.10,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54
T=1.10
T=1.20
T=1.20,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54
T=1.30,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54
T=1.30
9161160814
main91611-60814
9451200800
main94512-00800
29 parts on this diagram · 6 diagrams in section
