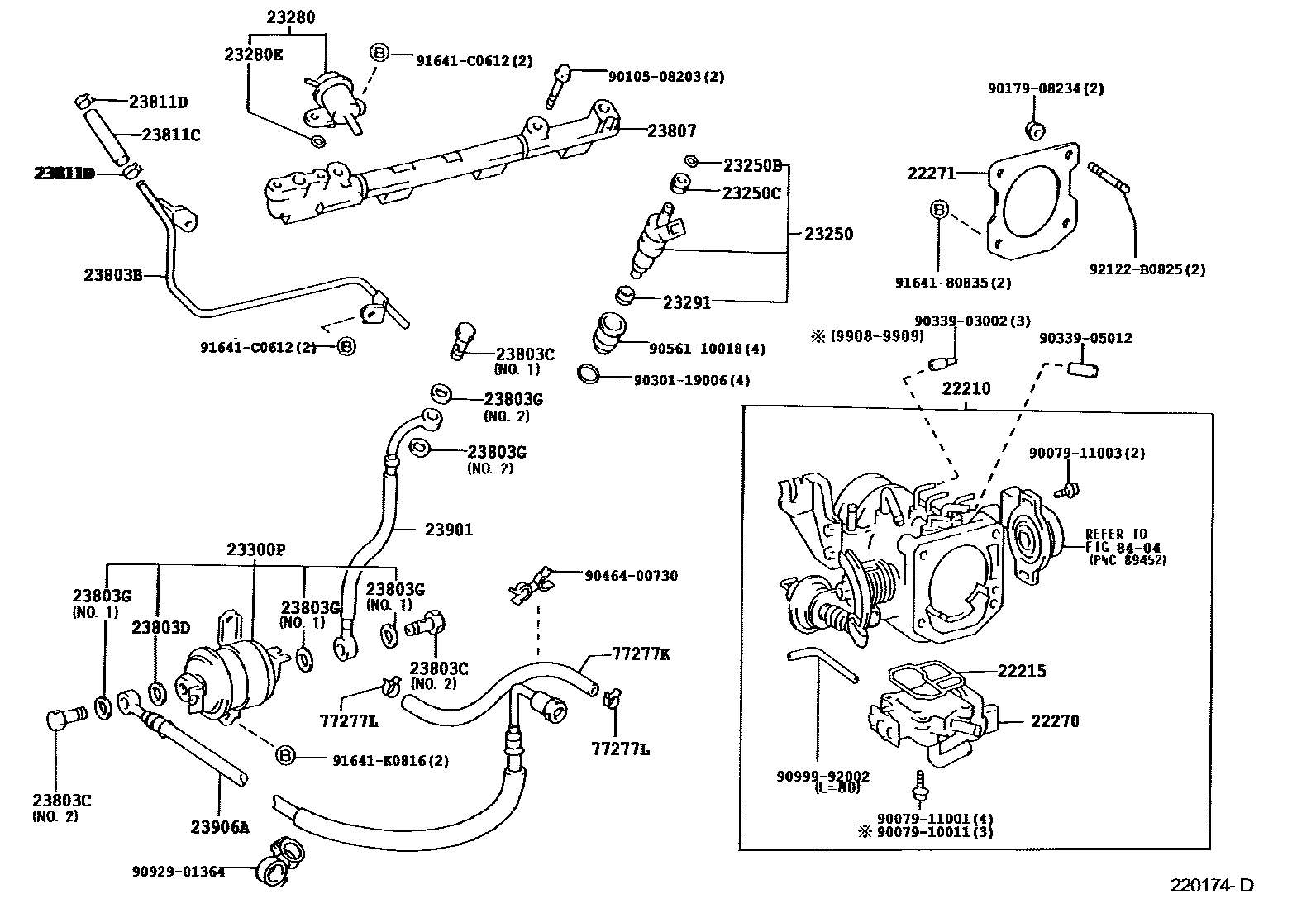

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0005 1 0006 1

22210BODY ASSY, THROTTLE

main22210-62170i5VZFE..VZN150..R199501-199609

main22210-62180i5VZFE..VZN150..4HC199501-199609

main22210-62210i5VZFE..VZN150..R199706-200409

W(*CRC)

main22210-62210i5VZFE..VZN150..R199609-199706

main22210-62220i5VZFE..VZN195199609-200209

main22210-62220i5VZFE..VZN150..4HC199706-200009

W(*CRC)

main22210-62230i5VZFE..VZN150..4HC199706-199908

main22210-62240i5VZFE..VZN150..R199706-200209

main22210-75060i2RZFE..RZN140,150..W199501-199509

main22210-75070i2RZFE..RZN140,150..4HC199501-199509

main22210-75130i2RZFE..RZN140,150..W199509-199706

main22210-75180i2RZFE..RZN140,150..4HC199509-199706

main22210-75210i2RZFE..RZN140,150..W199706-200009

main22210-75220i2RZFE,3RZFE..RZN140,150,19#..ATM199706-200009

main22210-75240i2RZFE..RZN140,150..W;3RZFE..RZN19#..RCB,XTR199908-200409

CALIFORNIA(LEV) SPEC

22215GASKET, THROTTLE BODY COVER

main22215-62180i5VZFE..VZN150199501-200409

main22215-75050i2RZFE,3RZFE..RZN140,150,19#199501-200009

main22215-7A680i3RZFE..RZN196..DCB;2RZFE..RZN140,150..4FC199908-200409

CALIFORNIA(LEV) SPEC

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-62040i5VZFE..VZN150199501-199609

main22270-62050i5VZFE..VZN195199609-200409

main22270-75020i2RZFE..RZN140,150199501-199509

main22270-75030i2RZFE,3RZFE..RZN140,150,19#..ATM199509-200009

main22270-75040i2RZFE..RZN140,150..W199509-200009

main22270-75050i3RZFE..RZN196..DCB;2RZFE..RZN140,150..4FC199908-200303

CALIFORNIA(LEV) SPEC

sub22270-75051

main22270-75051i2RZFE,3RZFE..RZN140,150,19#200303

22271GASKET, THROTTLE BODY

main22271-62040i5VZFE..VZN150,195199501-200409

main22271-62050i5VZFE..VZN195200209-200409

main22271-75020i2RZFE,3RZFE..RZN140,150,19#199501-200409

23250INJECTOR ASSY, FUEL

main23209-62030i5VZFE..VZN150,195199501-199808

main23209-62040i5VZFE..VZN150,195199808-200409

main23209-79085i2RZFE..RZN140,150199501-200009

main23209-79095i3RZFE..RZN19#199802-200009

main23209-79135i2RZFE..RZN140,150..W;3RZFE..RZN19#..RCB,XTR199908-200409

CALIFORNIA(LEV) SPEC

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i5VZFE..VZN150,195199501-199812

main90301-07024i2RZFE,3RZFE..RZN140,150,19#199812-200409

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i5VZFE..VZN150,195199501-200009

23280REGULATOR ASSY, FUEL PRESSURE

main23280-62030i5VZFE..VZN150,195199501-200409

main23280-75020i2RZFE,3RZFE..RZN140,150,19#199501-200409

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i5VZFE..VZN150,195199501-199812

main90301-07024i5VZFE..VZN150,195199812-200409

23291INSULATOR, INJECTOR VIBRATION

main23291-20010i5VZFE..VZN150,195199808-200409

main23291-62010i5VZFE..VZN150,195199501-199808

main23291-73010i2RZFE,3RZFE..RZN140,150,19#199501-200409

23300PFILTER, FUEL(FOR EFI)

main23300-62010i5VZFE..VZN150,195199501-200409

main23300-79446i2RZFE,3RZFE..RZN140,150,19#199501-200009

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-62010i5VZFE..VZN150,195199501-200409

main23803-75020i2RZFE,3RZFE..RZN140,150,19#199501-200409

main23803-75050i2RZFE,3RZFE..RZN140,150,19#199909-200009

CALIFORNIA(LEV) SPEC

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-12033i2RZFE,3RZFE..RZN140,150,19#199905-200409

NO.1

main90401-12097i2RZFE,3RZFE..RZN140,150,19#199905-200409

NO.2

main90401-12097i2RZFE,3RZFE..RZN140,150,19#199501-199909

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-12017i2RZFE..RZN140,150199908-199909

CALIFORNIA(LEV) SPEC

main90430-12017i2RZFE,3RZFE..RZN140,150,19#199501-199905

main90430-12026i2RZFE,3RZFE..RZN140,150,19#199501-200409

23803GGASKET(FOR FUEL HOSE)

main23279-74010i2RZFE,3RZFE..RZN140,150,19#199905-200409

NO.1

main90430-12026i2RZFE,3RZFE..RZN140,150,19#199501-199905

main90430-12026i2RZFE,3RZFE..RZN140,150,19#199905-200409

NO.2

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75020i2RZFE..RZN140,150199501-199708

main23807-75021i2RZFE,3RZFE..RZN140,150,19#199708-200309

sub23807-75022

main23807-75022i2RZFE,3RZFE..RZN140,150,19#200309-200409

23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)

main23273-62010i5VZFE..VZN150,195199609-200409

main90445-12290i2RZFE,3RZFE..RZN140,150,19#199706-200409

L=120

main95333-06020i5VZFE..VZN150199501-199609

sub95337-06020

main95334-06012i2RZFE..RZN140,150199501-199706

23811DCLIP, HOSE(FOR FUEL HOSE)

main90467-11065i5VZFE..VZN150,195199501-200409

main96135-41100i2RZFE,3RZFE..RZN140,150,19#199501-200009

sub96135-51100

main96135-51100i2RZFE,3RZFE..RZN140,150,19#200009-200409

23901TUBE SUB-ASSY, FUEL

main23901-75020i2RZFE..RZN140,150199501-199708

main23901-75021i2RZFE..RZN140,150199708-199905

sub23901-75040

main23901-75031i3RZFE..RZN19#199802-199905

sub23901-75050

main23901-75040i2RZFE..RZN140,150199905-200409

main23901-75050i3RZFE..RZN19#199905-200409

23906AHOSE SUB-ASSY, FUEL

main23906-75040i2RZFE,3RZFE..RZN140,150,19#199501-200409

77277KHOSE, FUEL(FOR RETURN HOSE)

main23273-62020iVZN150,195199609-200009

main90445-12281iRZN140,150199501-199706

sub90445-12286

main90445-12286iRZN140,150,19#199706-200009

main95333-06030iVZN150199501-199609

sub95338-06030

77277LCLIP, HOSE(FOR RETURN HOSE)

main96135-41100iRZN140,150,19#199501-200009

sub96135-51100

main96135-51100iVZN150,195200009-200409

8404

9007910011

main90079-10011

9007911001

main90079-11001

9007911003

main90079-11003

9010508203

main90105-08203

9017908234

main90179-08234

9030119006

main90301-19006

9033903002

main90339-03002

9033905012

main90339-05012

9046400730

main90464-00730

9056110018

main90561-10018

9092901364

main90929-01364

9099992002

main90999-92002

9164180835

main91641-80835

91641C0612

main91641-C0612

91641K0816

main91641-K0816

92122B0825

main92122-B0825

39 parts on this diagram · 5 diagrams in section
