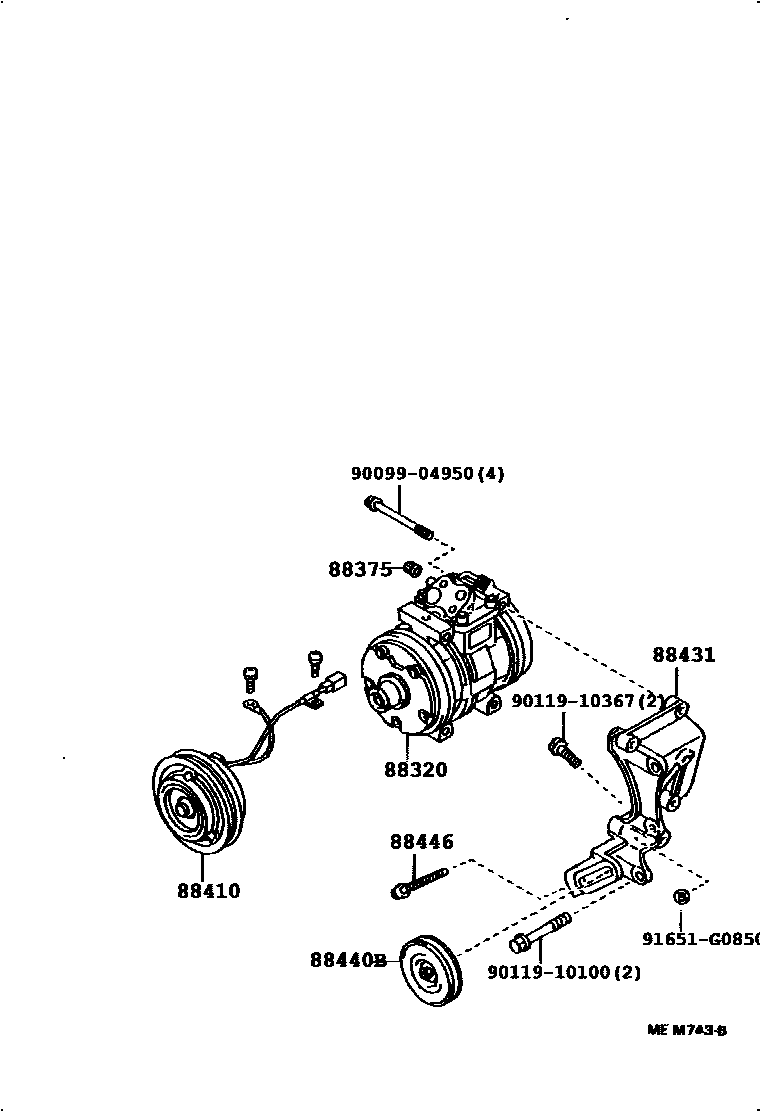

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-35270iRN80,90199109-199401

main88320-35530iRN80,90199401-199501

88375CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-20010iRN80,90199109-199501

88410CLUTCH ASSY, MAGNET

main88410-35050iRN80,90199109-199401

main88410-60310iRN80,90199401-199501

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-04010iRN80,90199109-199501

88440BPULLEY ASSY, IDLE

main88440-04010iRN80,90199109-199501

88446BOLT, IDLE PULLEY

main88446-04010iRN80,90199109-199501

9009904950

main90099-04950

9011910100

main90119-10100

9011910367

main90119-10367

91651G0850

main91651-G0850

10 parts on this diagram · 2 diagrams in section
