Toyota 4-RUNNER TRUCK (NAP)675 — WIRING & CLAMP

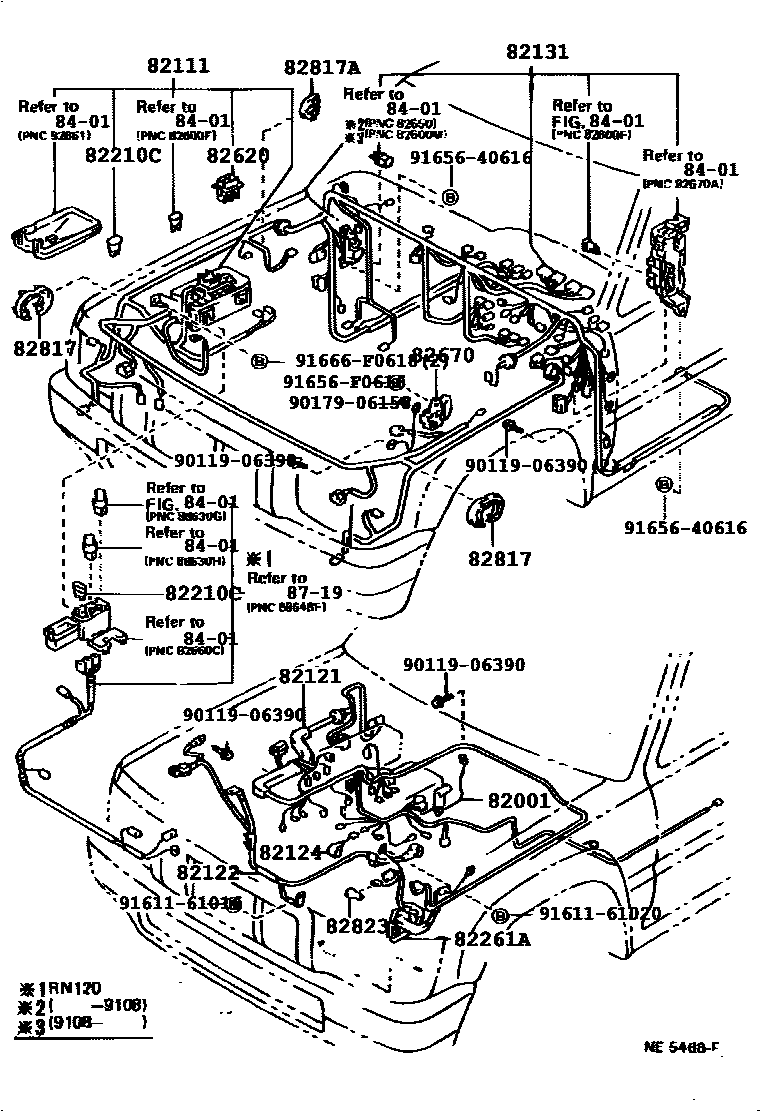

Parts diagram

82001CABLE, BOND, NO.1

82111WIRE, ENGINE ROOM MAIN

82121WIRE, ENGINE

82122WIRE, ENGINE, NO.2

82124WIRE, ENGINE, NO.4

82210CFUSIBLE LINK

82261AWIRE, ALTERNATOR

82620BLOCK ASSY, FUSIBLE LINK

82670BLOCK ASSY, JUNCTION, NO.1

82817PROTECTOR, WIRING HARNESS, NO.1

82817APROTECTOR, WIRING HARNESS, NO.2

82823CAP, TERMINAL, NO.1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

9011906390

9017906158

9161161016

9161161020

9165640616

91656F0616

91666F0618

22 parts on this diagram · 13 diagrams in section

WIRING & CLAMP for Toyota 4-RUNNER TRUCK (NAP)675

This section contains 120 genuine Toyota parts for the WIRING & CLAMP system of the Toyota 4-RUNNER TRUCK (NAP)675. Key components include: CABLE, BOND, NO.1, WIRE, ENGINE ROOM MAIN, WIRE, ENGINE, WIRE, ENGINE, NO.2, WIRE, ENGINE, NO.4.
