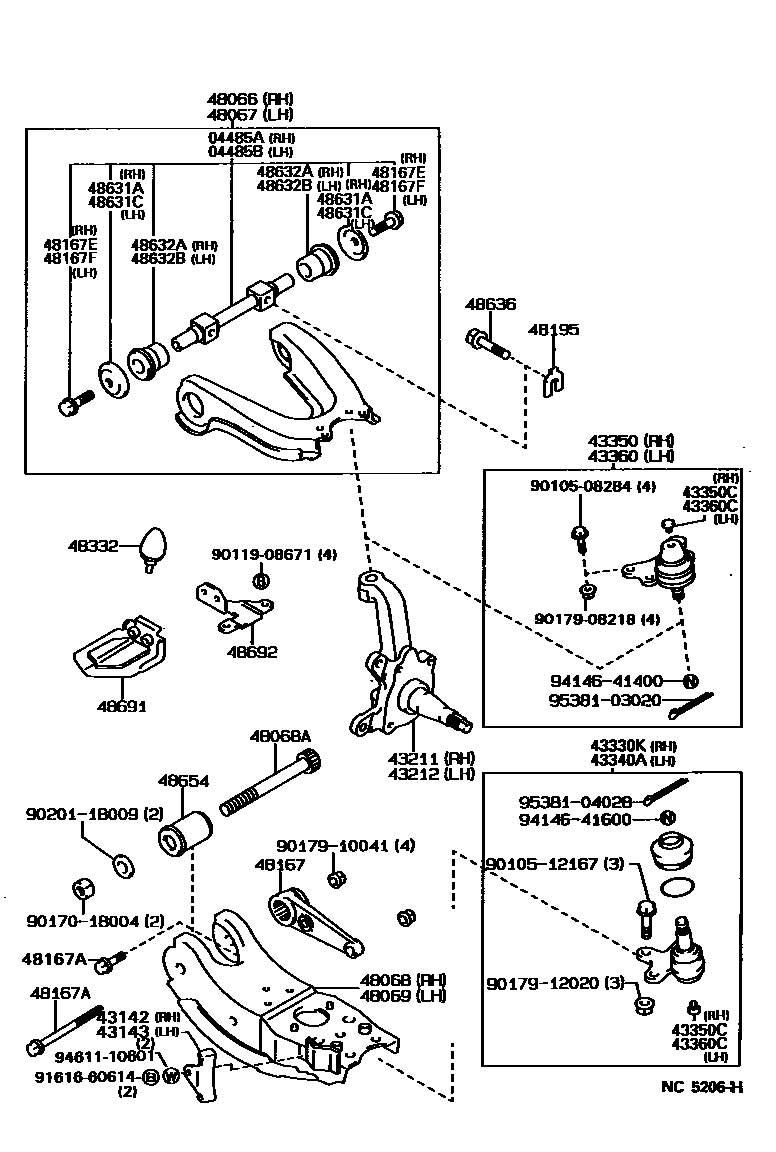

FRONT AXLE ARM & STEERING KNUCKLE
04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH
04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH
43142SEAT, STEERING KNUCKLE STOPPER, RH
43143SEAT, STEERING KNUCKLE STOPPER, LH
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43330KJOINT ASSY, LOWER BALL, FRONT RH
43340AJOINT ASSY, LOWER BALL, FRONT LH
43350JOINT ASSY, FRONT UPPER BALL, RH
43350CPLUG (FOR FRONT UPPER BALL JOINT RH)
43360JOINT ASSY, FRONT UPPER BALL, LH
43360CPLUG (FOR FRONT UPPER BALL JOINT LH)
48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48167ARM, TORQUE
48167ABOLT(FOR TORQUE ARM SETTING)
L=129
L=26
48167EBOLT(FOR FRONT SUSPENSION TORQUE ARM RH)
48167FBOLT(FOR FRONT SUSPENSION TORQUE ARM LH)
48195SHIM, CAMBER ADJUST
T=4.0
T=1.6
T=1.2
48332BUMPER, FRONT SPRING, NO.2
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
48636BOLT, UPPER ARM SET
48654BUSH, LOWER ARM
48691INSULATOR, UPPER ARM BUSH, HEAT
48692BRACKET, UPPER ARM BUSH INSULATOR
9010508284
main90105-08284
9010512167
main90105-12167
9011908671
main90119-08671
9017018004
main90170-18004
9017908218
main90179-08218
9017910041
main90179-10041
9017912020
main90179-12020
9020118009
main90201-18009
9161660614
main91616-60614
9414641400
main94146-41400
9414641600
main94146-41600
9461110601
main94611-10601
9538103020
main95381-03020
9538104028
main95381-04028
45 parts on this diagram · 1 diagram in section
