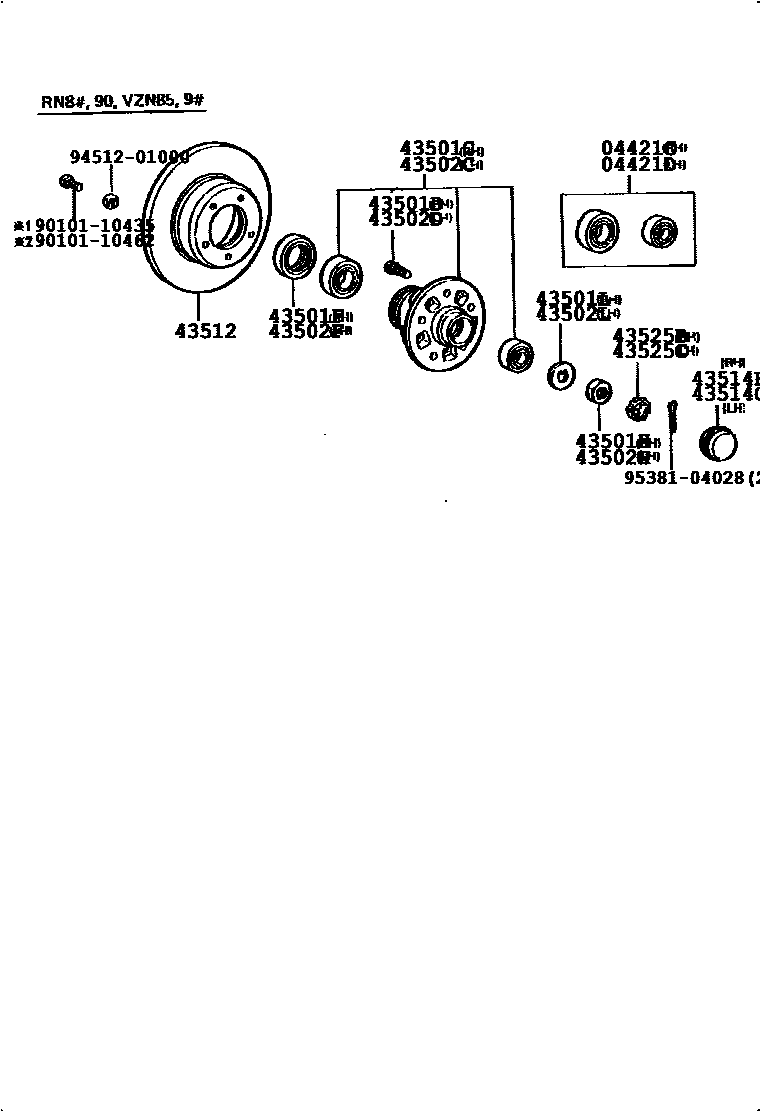

FRONT AXLE HUB

04421CBEARING KIT, FRONT AXLE SHAFT, RH

main04421-35020iRN80,90199109-199501

04421DBEARING KIT, FRONT AXLE SHAFT, LH

main04421-35020iRN80,90199109-199501

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-39015iRN80,90199109-199501

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047×5iRN80,90199109-199501

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50005iRN80,90199109-199501

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90170-19185iRN80,90199109-199501

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-20007iRN80,90199109-199501

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-39015iRN80,90199109-199501

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×5iRN80,90199109-199501

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50005iRN80,90199109-199501

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90170-19185iRN80,90199109-199501

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-20007iRN80,90199109-199501

43512DISC, FRONT

main43512-35081×2iRN80..STD199109-199501

main43512-35140×2iRN80,90..DLX199109-199501

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-35010iRN80,90199109-199501

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-35010iRN80,90199109-199501

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-22010iRN80,90199109-199501

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-22010iRN80,90199109-199501

9010110435

main90101-10435

9010110462

main90101-10462

9451201000

main94512-01000

9538104028

main95381-04028

21 parts on this diagram · 1 diagram in section
