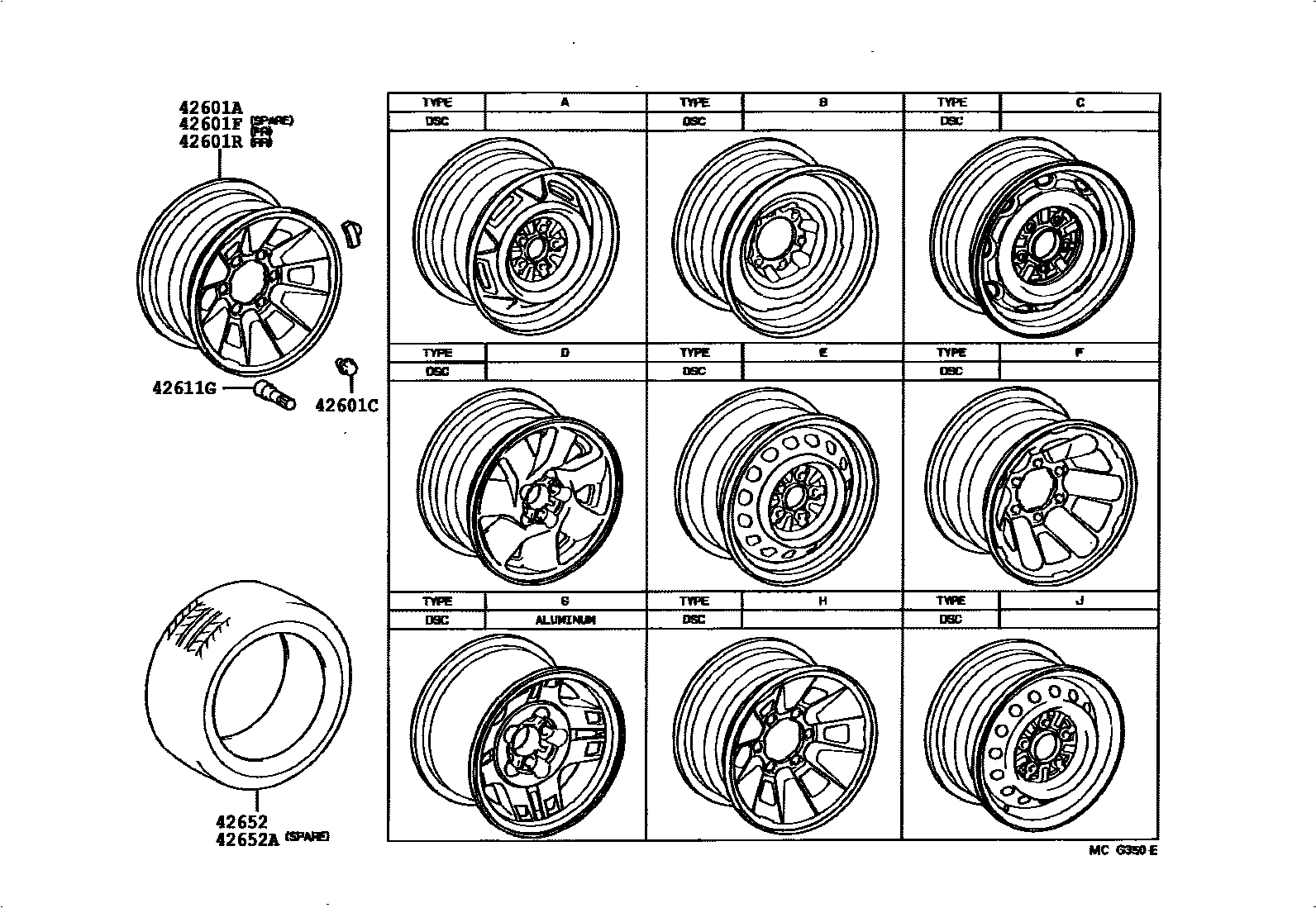

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601AWHEEL, DISC (FOR SPARE)

main42601-04060iRN80..DLX; RN80..STD199109-199501

14X5J,TYPE J; 14X5J,TYPE J,W(FULL CAP)

main42601-04070iRN80..STD199109-199501

14X5J,TYPE J

main42601-04080iRN90199303-199501

14X6JJ,TYPE J

42601CNUT, HUB (FOR AXLE)

main90942-01061×20iRN80,90199109-199409

main90942-01082×20iRN80,90199409-199501

42601FWHEEL, DISC (FOR FRONT)

main42601-04060×2iRN80..DLX; RN80..STD199109-199501

14X5J,TYPE J; 14X5J,TYPE J,W(FULL CAP)

main42601-04070×2iRN80..STD199109-199501

14X5J,TYPE J

main42601-04080×2iRN90199303-199501

14X6JJ,TYPE J

42601RWHEEL, DISC (FOR REAR)

main42601-04060×2iRN80..DLX; RN80..STD199109-199501

14X5J,TYPE J; 14X5J,TYPE J,W(FULL CAP)

main42601-04070×2iRN80..STD199109-199501

14X5J,TYPE J

main42601-04080×2iRN90199303-199501

14X6JJ,TYPE J

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4iRN80..DLX; RN80..STD; RN90;RN80..STD199109-199501

W(FULL CAP)

42652TIRE

main42652-04060×4iRN80199109-199501

P195/75R14

42652ATIRE (FOR SPARE)

main42652-04060iRN80199109-199501

P195/75R14

7 parts on this diagram · 4 diagrams in section
