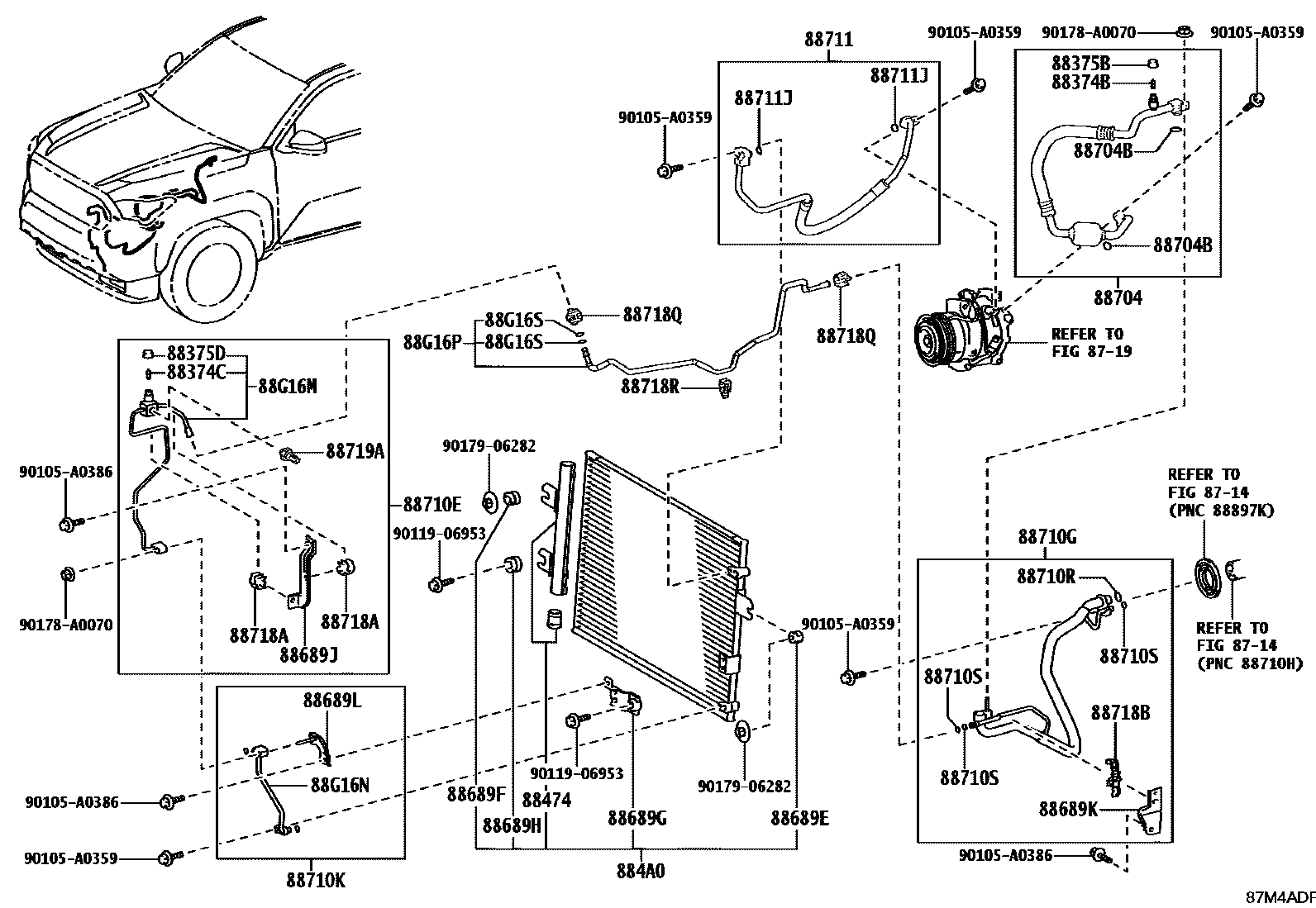

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88474DRYER, COOLER
88689EBRACKET, COOLER, NO.1
88689FBRACKET, COOLER, NO.2
88689GBRACKET, COOLER, NO.3
88689HBRACKET, COOLER, NO.4
88689JBRACKET, COOLER, NO.5
88689KBRACKET, COOLER, NO.6
88689LBRACKET, COOLER, NO.7
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710KTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3
88710RRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
ID=13.4,OD=18.2
88710SRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
ID=6.7,OD=10.3
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718QCLAMP, PIPING
88718RCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
88G16MTUBE, LIQUID, NO.1
88G16NTUBE, LIQUID, NO.2
88G16PTUBE, LIQUID, NO.3
88G16SRING, O, NO.3(FOR LIQUID TUBE)
ID=6.7,OD=10.3
90105A0359
main90105-A0359
90105A0386
main90105-A0386
9011906953
main90119-06953
90178A0070
main90178-A0070
9017906282
main90179-06282
38 parts on this diagram · 2 diagrams in section
