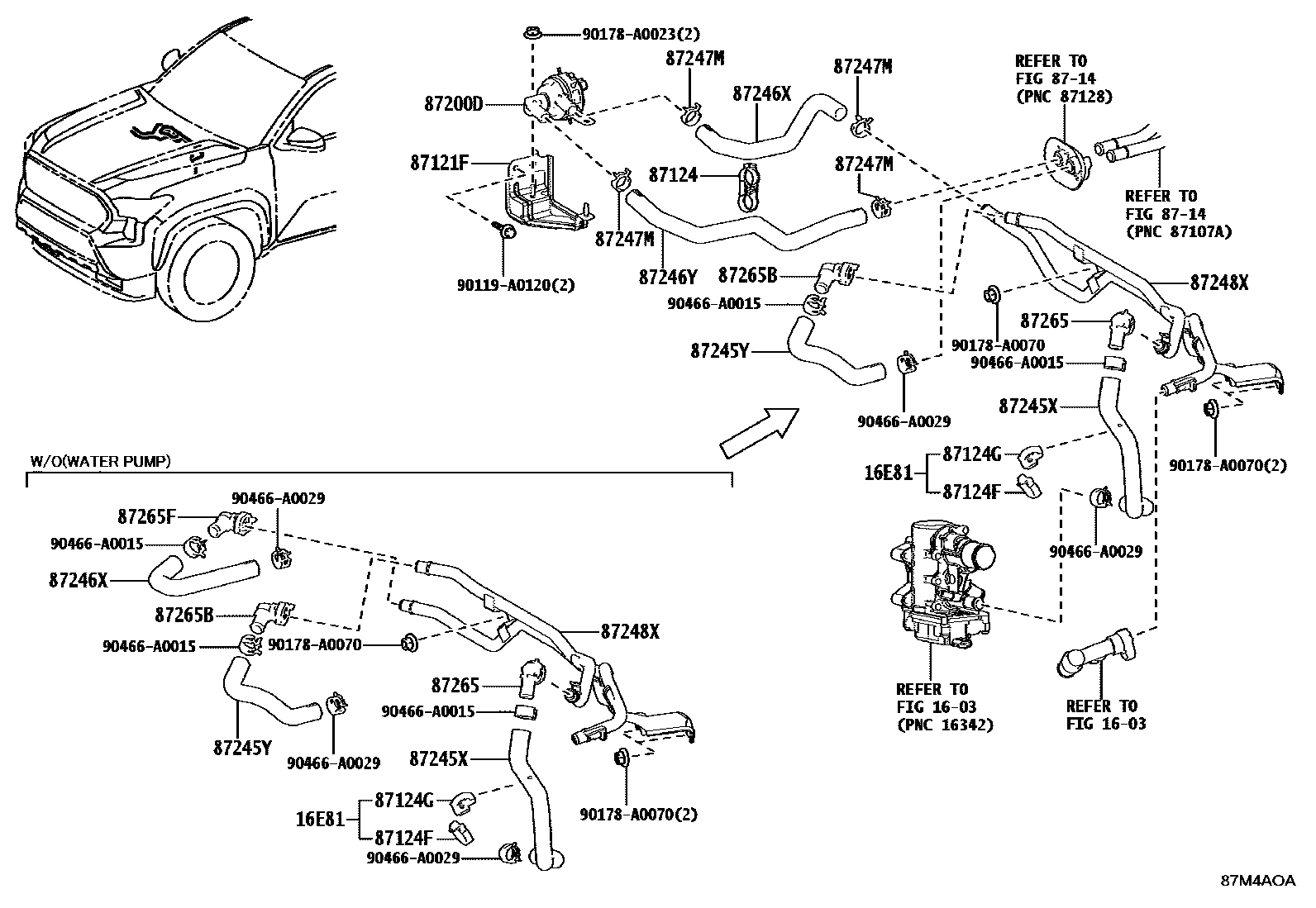

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16E81CLAMP, HOSE(FOR WATER HOSE)

main16581-70050iT24..TZNA4#,TZNH47202312

87121FBRACKET, HEATER

main87121-AK010iTZNA40; TZNA45..DCB..8FC202312

LIMITED PACKAGE

87124CLAMP, HEATER

main88718-6B070iTZNA40,TZNH47; TZNA45..DCB..8FC202312

LIMITED PACKAGE

87124FCLAMP, HEATER HOSE, NO.1

main87124-50050iTZNA4#,TZNH47202312

87124GCLAMP, HEATER HOSE, NO.2

main87124-50060iTZNA4#,TZNH47202312

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87200DACCESSORY ASSY, HEATER

main87200-AK010iTZNA40; TZNA45..DCB..8FC202312

LIMITED PACKAGE

main87200-AK020iTZNH47202404

87245XHOSE, HEATER WATER

main87245-AK010iTZNA4#,TZNH47; TZNA45..DCB..8FC202312

LIMITED PACKAGE

87245YHOSE, HEATER WATER

main87243-AK010iTZNA4#,TZNH47; TZNA45..DCB..8FC202312

LIMITED PACKAGE

87246XHOSE, HEATER WATER

main87243-AK020iTZNA41,45,46202312

main87243-AK030iTZNA40; TZNA45..DCB..8FC202312

LIMITED PACKAGE

main87243-AK040iTZNH47202404

87246YHOSE, HEATER WATER

main87246-AK010iTZNA40; TZNA45..DCB..8FC202312

LIMITED PACKAGE

main87246-AK020iTZNH47202404

87247MCLIP, HOSE

main90466-A0029×4iTZNA40,TZNH47; TZNA45..DCB..8FC202312

LIMITED PACKAGE

87248XPIPE, HEATER WATER

main87248-AK010iTZNA41,45,46202312

main87248-AK020iTZNA40; TZNA45..DCB..8FC202312

LIMITED PACKAGE

main87248-AK030iTZNH47202404

87265CONNECTOR, HEATER WATER HOSE

main87265-50010iTZNA4#,TZNH47202312

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87265-50010iTZNA4#,TZNH47202312

87265FCONNECTOR, WATER HOSE

main87265-50010iTZNA41,45,46202312

90119A0120

main90119-A0120

90178A0023

main90178-A0023

90178A0070

main90178-A0070

90466A0015

main90466-A0015

90466A0029

main90466-A0029

22 parts on this diagram · 2 diagrams in section
