TIRE PRESSURE WARNING SYSTEM

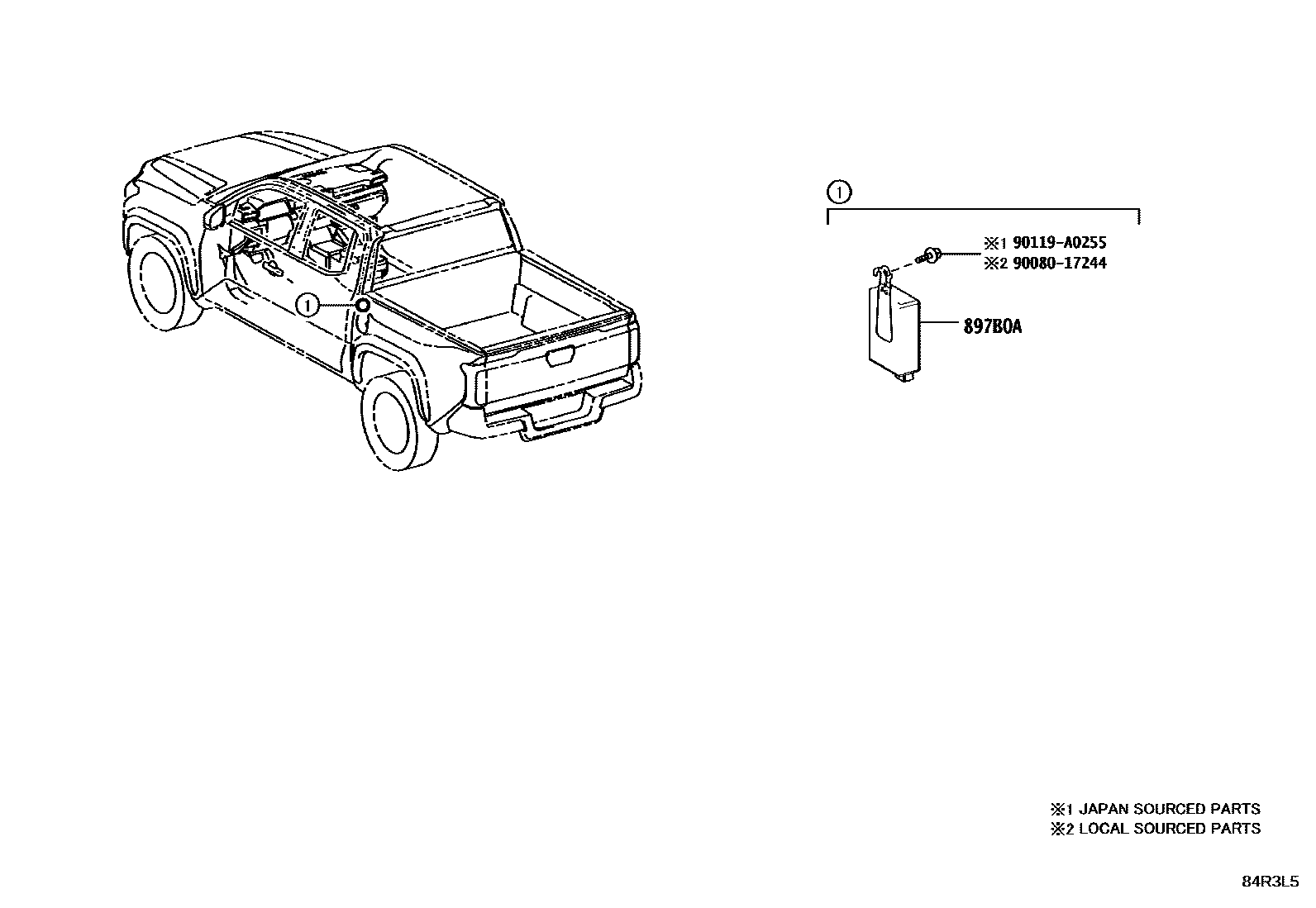

Parts diagram

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-AK010i202403

main897B0-AK020i202312

9008017244

main90080-17244

90119A0255

main90119-A0255

3 parts on this diagram · 1 diagram in section
