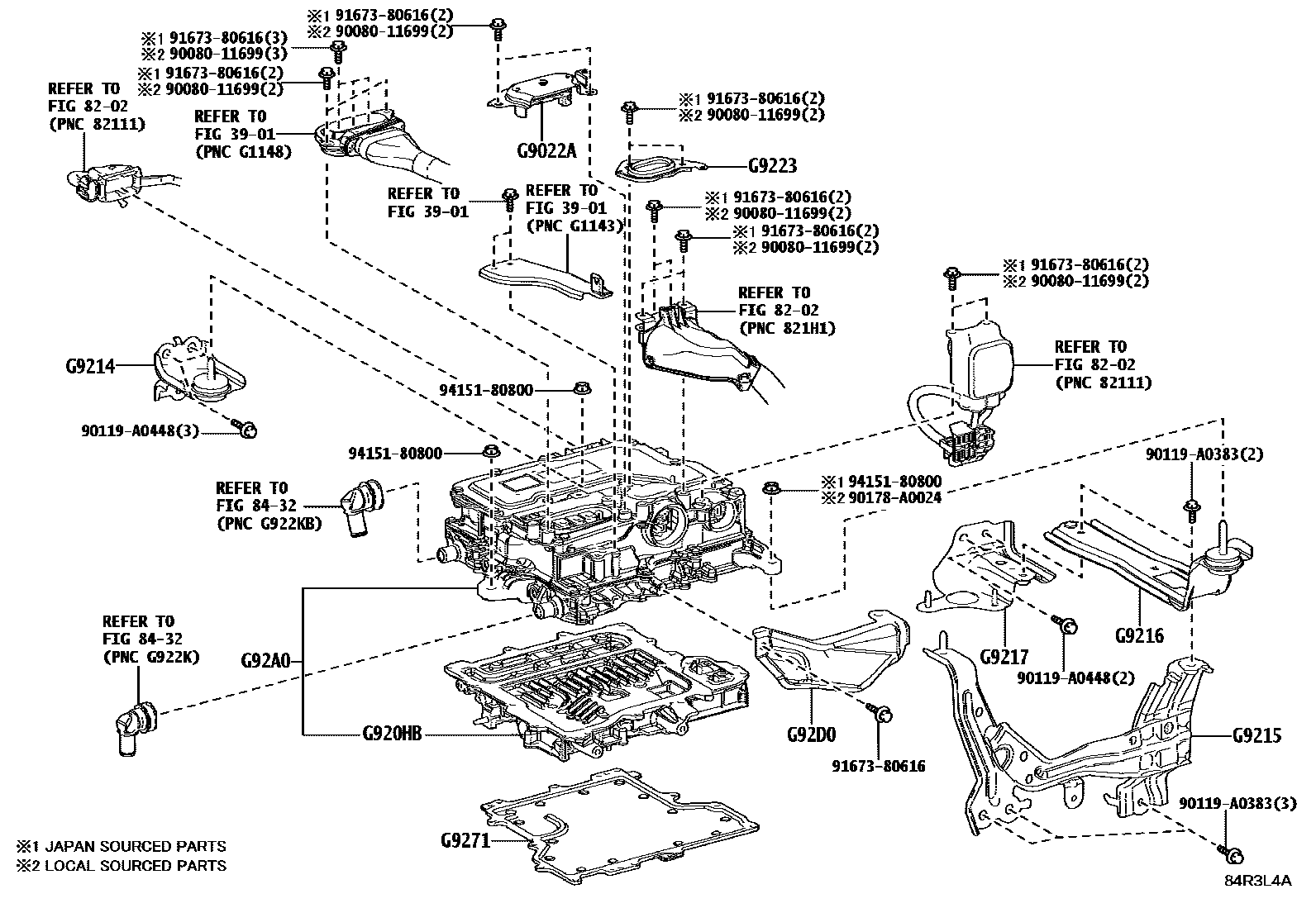

HEV INVERTER

3901

8202

8432

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902234010iTZNH47202404

G920HBCONVERTER SET, HYBRID VEHICLE

mainG920H35010supersedes G920H34010iTZNH47202412-202511

ACCESSORY CONNECTOR(REAR)-WITH(95A)

G9214BRACKET, INVERTER, NO.1

mainG921404010iTZNH47202404

G9215BRACKET, INVERTER, NO.2

mainG921504010iTZNH47202404

G9216BRACKET, INVERTER, NO.3

mainG921604010iTZNH47202404

G9217BRACKET, INVERTER, NO.4

mainG921704010iTZNH47202404

G9223COVER, INVERTER TERMINAL

mainG922334010iTZNH47202404

G9271COVER, CONVERTER

mainG927134010iTZNH47202404

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A035040supersedes G92A060020iTZNH47202412-202511

ACCESSORY CONNECTOR(REAR)-WITH(95A)

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D004010iTZNH47202404

9008011699

main90080-11699

90119A0383

main90119-A0383

90119A0448

main90119-A0448

90178A0024

main90178-A0024

9167380616

main91673-80616

9415180800

main94151-80800

19 parts on this diagram · 1 diagram in section
