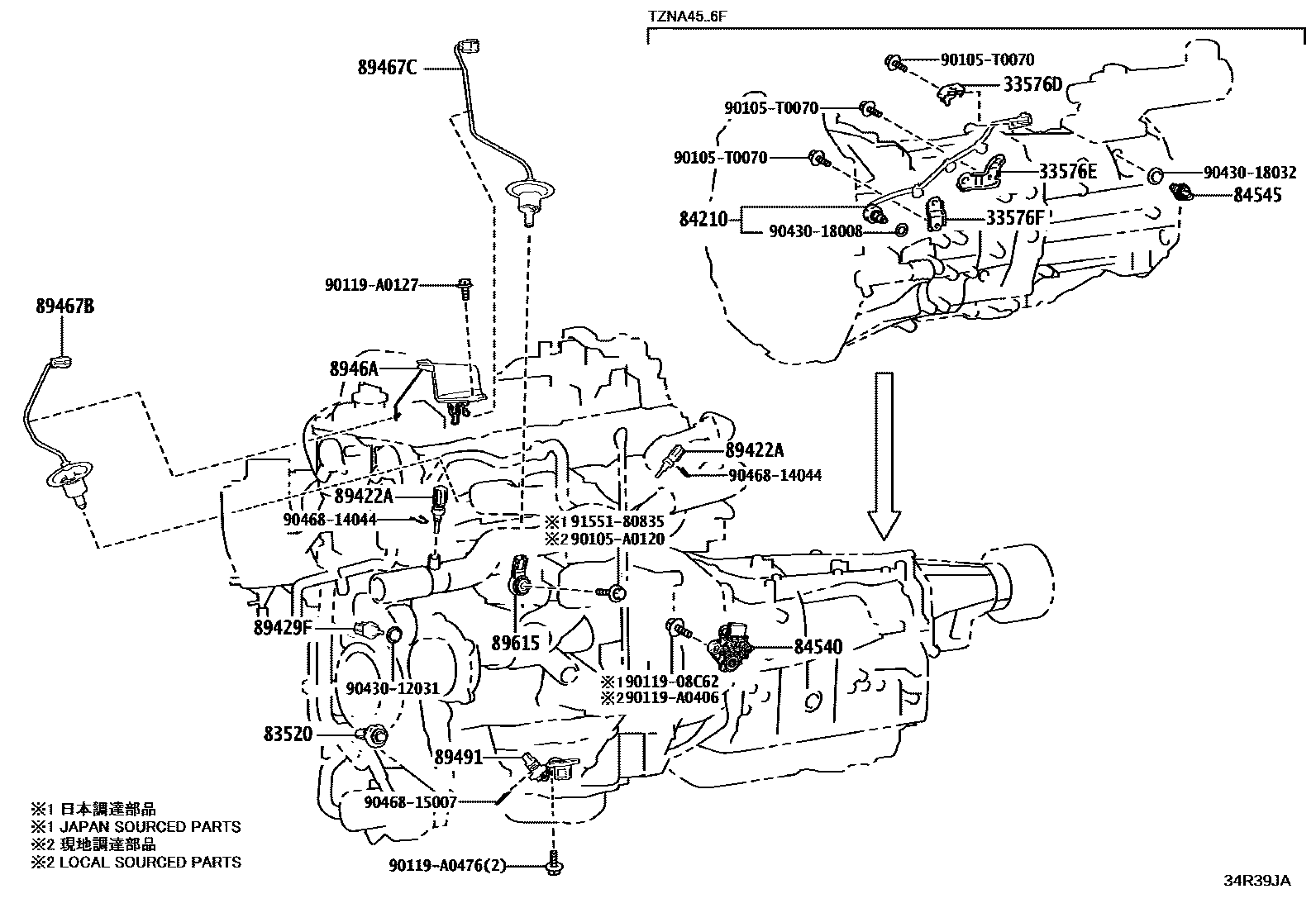

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1CONSOLE BOX 0008 1STEERING 0009 1SEAT 0010 1DOOR,ROOF & FLOOR

33576DBRACKET, BACK-UP LAMP SWITCH, NO.1

main33576-0K040iTZNA45..6F202312

33576EBRACKET, BACK-UP LAMP SWITCH, NO.2

main33576-0K050iTZNA45..6F202312

33576FBRACKET, BACK-UP LAMP SWITCH, NO.3

main33576-0K060iTZNA45..6F202312

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60070iTZNA4#,TZNH47202312

84210SWITCH ASSY, BACK-UP LAMP

main84210-71050iTZNA45..6F202312

84540SWITCH ASSY, NEUTRAL START

main84540-0C020iTZNA4#..8FC202312-202401

main84540-0C020iTZNA4#,TZNH47..ATM,CVT202401

(L)

main84540-60080iTZNA4#,TZNH47..ATM,CVT202401

(J)

84545SWITCH, NEUTRAL POSITION

main84545-71010iTZNA45..6F202312

89422ASENSOR, WATER TEMPERATURE

main89422-33040iTZNA4#,TZNH47..DCB..(ATM,CVT)202312

MEXICO SPEC

89429FSENSOR, TEMPERATURE

main89429-12010iTZNA4#,TZNH47202312

89467BSENSOR, AIR FUEL RATIO

main89467-04100iTZNA4#,TZNH47202312

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-04110iTZNA4#,TZNH47202312

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-35010iTZNA4#,TZNH47202312

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iTZNA4#,TZNH47202312

89615SENSOR, KNOCK CONTROL

main89615-78010iTZNA4#,TZNH47202312

(J)

main89615-F6010iTZNA4#,TZNH47202312

(L)

90105A0120

main90105-A0120

90105T0070

main90105-T0070

9011908C62

main90119-08C62

90119A0127

main90119-A0127

90119A0406

main90119-A0406

90119A0476

main90119-A0476

9043012031

main90430-12031

9043018008

main90430-18008

9043018032

main90430-18032

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

26 parts on this diagram · 10 diagrams in section
