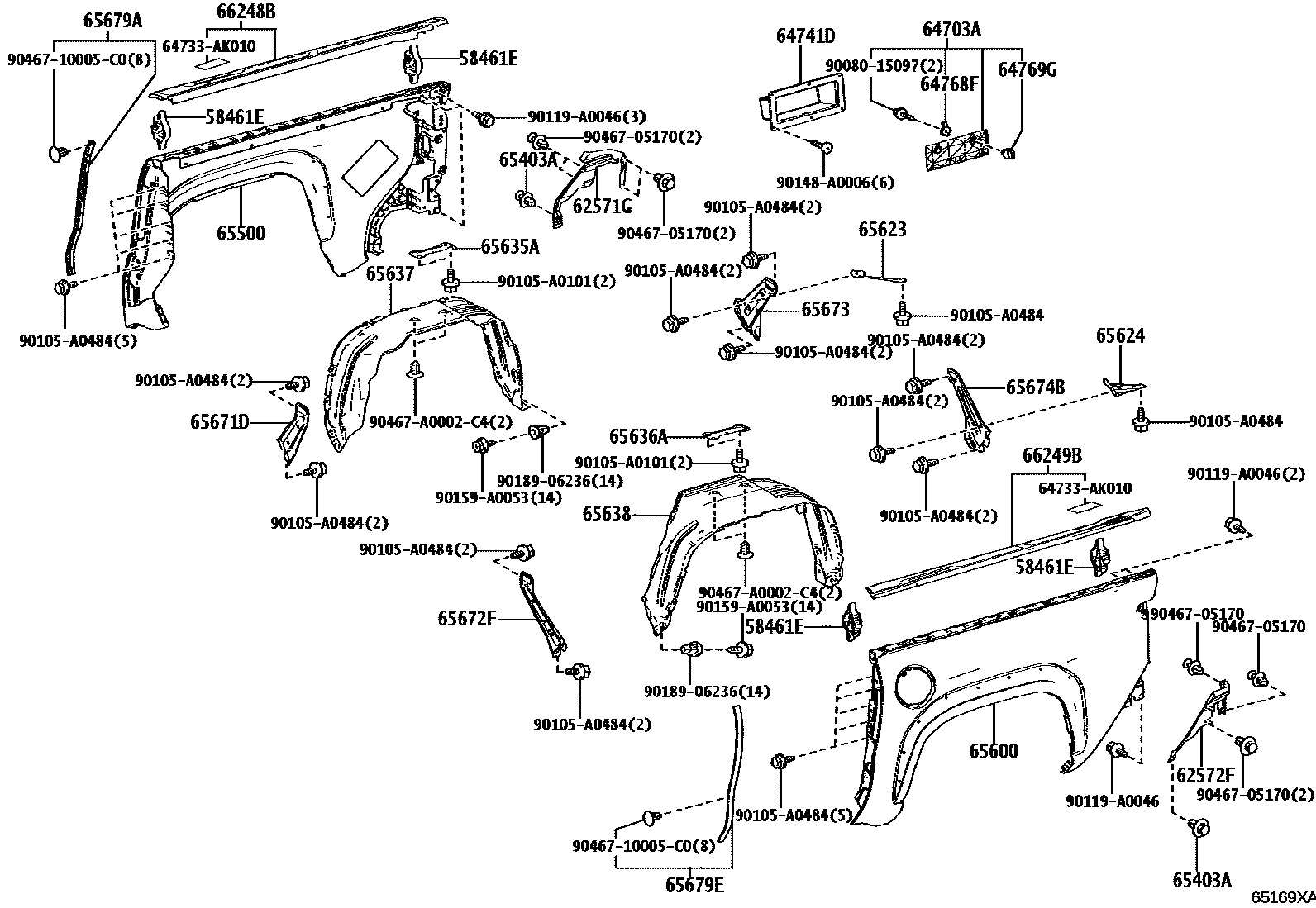

REAR BODY SIDE PANEL
58461ESTRIKER, LUGGAGE HOLD BELT
62571GGARNISH, REAR PILLAR, LOWER RH
62572FGARNISH, RR PILLAR, LWR LH
64703ACOVER SUB-ASSY, DECK SIDE TRIM, RH
64741DBOX, DECK SIDE TRIM, RH
64768FSTOPPER, JACK COVER
64769GKNOB, JACK COVER
65403ACLIP, CORNER PROTECTOR
65500PANEL ASSY, REAR BODY SIDE, RH
65600PANEL ASSY, REAR BODY SIDE, LH
65623SKIRT, SIDE PANEL, RR RH
65624SKIRT, SIDE PANEL, RR LH
65635APANEL, WHEEL HOUSE, REAR RH
65636APANEL, WHEEL HOUSE, REAR LH
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
65672FBRACE, SIDE PANEL SKIRT, FRONT LH
65673BRACE, SIDE PANEL SKIRT, REAR
65674BBRACE, SIDE PANEL SKIRT, RR LH
65679ASEAL, SIDE GATE
65679ESEAL, SIDE GATE
66248BPROTECTOR, REAR BODY SIDE PANEL, RH
66249BPROTECTOR, REAR BODY SIDE PANEL, LH
64733AK010TRIM, JACK HOUSE OPENING
main64733-AK010
9008015097
main90080-15097
90105A0101
main90105-A0101
90105A0484
main90105-A0484
90119A0046
main90119-A0046
90148A0006
main90148-A0006
90159A0053
main90159-A0053
9018906236
main90189-06236
9046705170
main90467-05170
9046710005C0
main90467-10005C0
90467A0002C4
main90467-A0002C4
35 parts on this diagram · 2 diagrams in section
