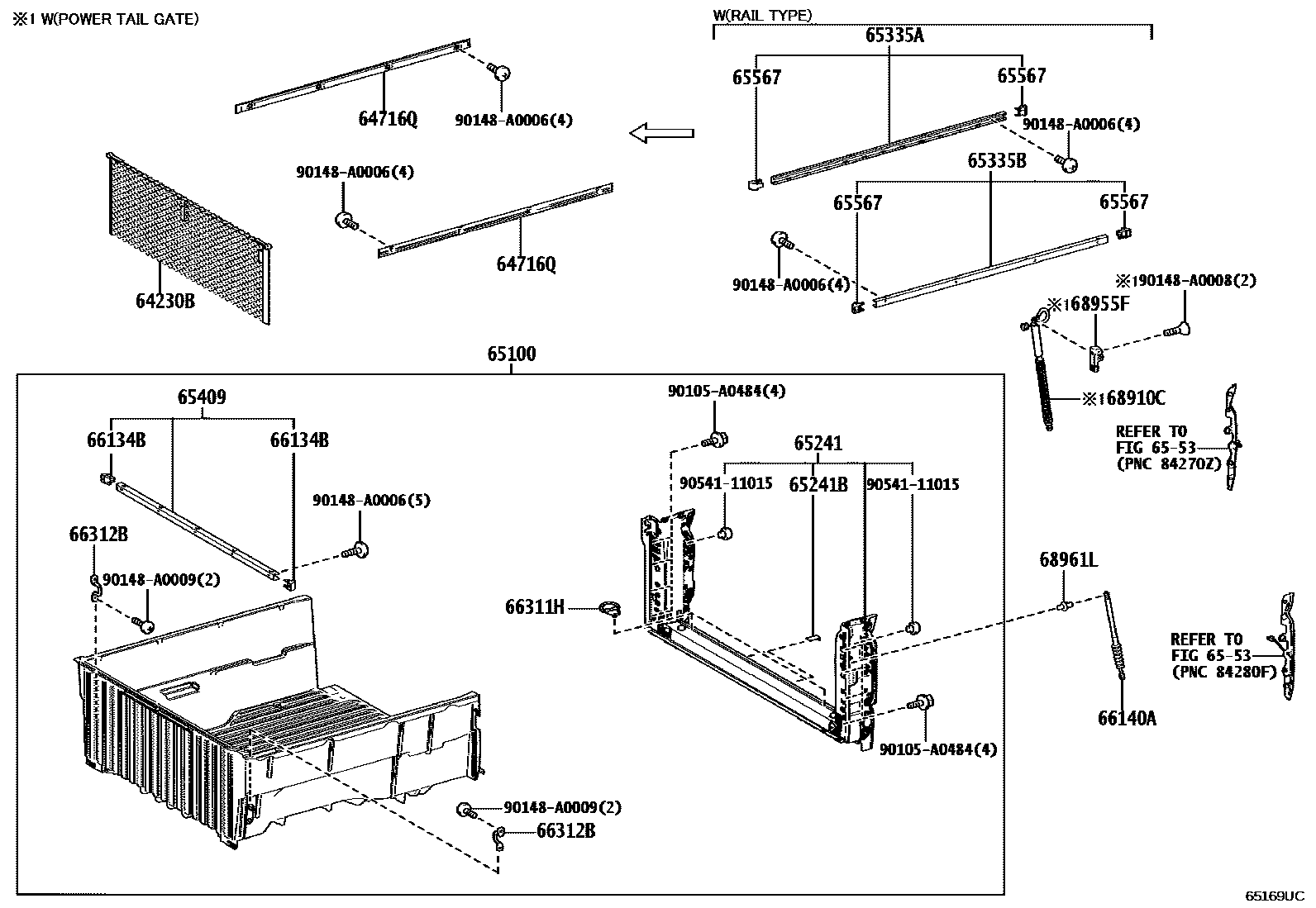

Toyota TACOMA — REAR BODY FLOOR & FENDER
64230BNET ASSY, ROOM PARTITION
64716QCOVER, DECK TRIM, REAR
65100FLOOR ASSY, REAR BODY
65241BSHEET, REAR CROSS SILL SILENCER
65335ARAIL, SIDE PANEL TOP, B RH
65335BRAIL, SIDE PANEL TOP, B LH
65409RAIL SUB-ASSY, HEADER BOARD
6553REAR BODY GUARD FRAME & TAIL GATE
65567SUPPORT, SIDE GATE
66134BCAP, SIDE GATE SUPPORT
66140ASUPPORT ASSY, TAIL GATE, LH
66311HHOOK, ROPE
66312BHOOK, ROPE, INNER
68910CUNIT ASSY, POWER TAIL GATE, RH
68955FBRACKET, TAIL GATE STAY, UPPER RH
68961LJOINT, TAIL GATE STAY
90105A0484
90148A0006
90148A0008
90148A0009
9054111015
22 parts on this diagram · 1 diagram in section
REAR BODY FLOOR & FENDER for Toyota TACOMA
This section contains 22 genuine Toyota parts for the REAR BODY FLOOR & FENDER system of the Toyota TACOMA. Key components include: NET ASSY, ROOM PARTITION, COVER, DECK TRIM, REAR, FLOOR ASSY, REAR BODY, SILL, REAR CROSS, SHEET, REAR CROSS SILL SILENCER.
