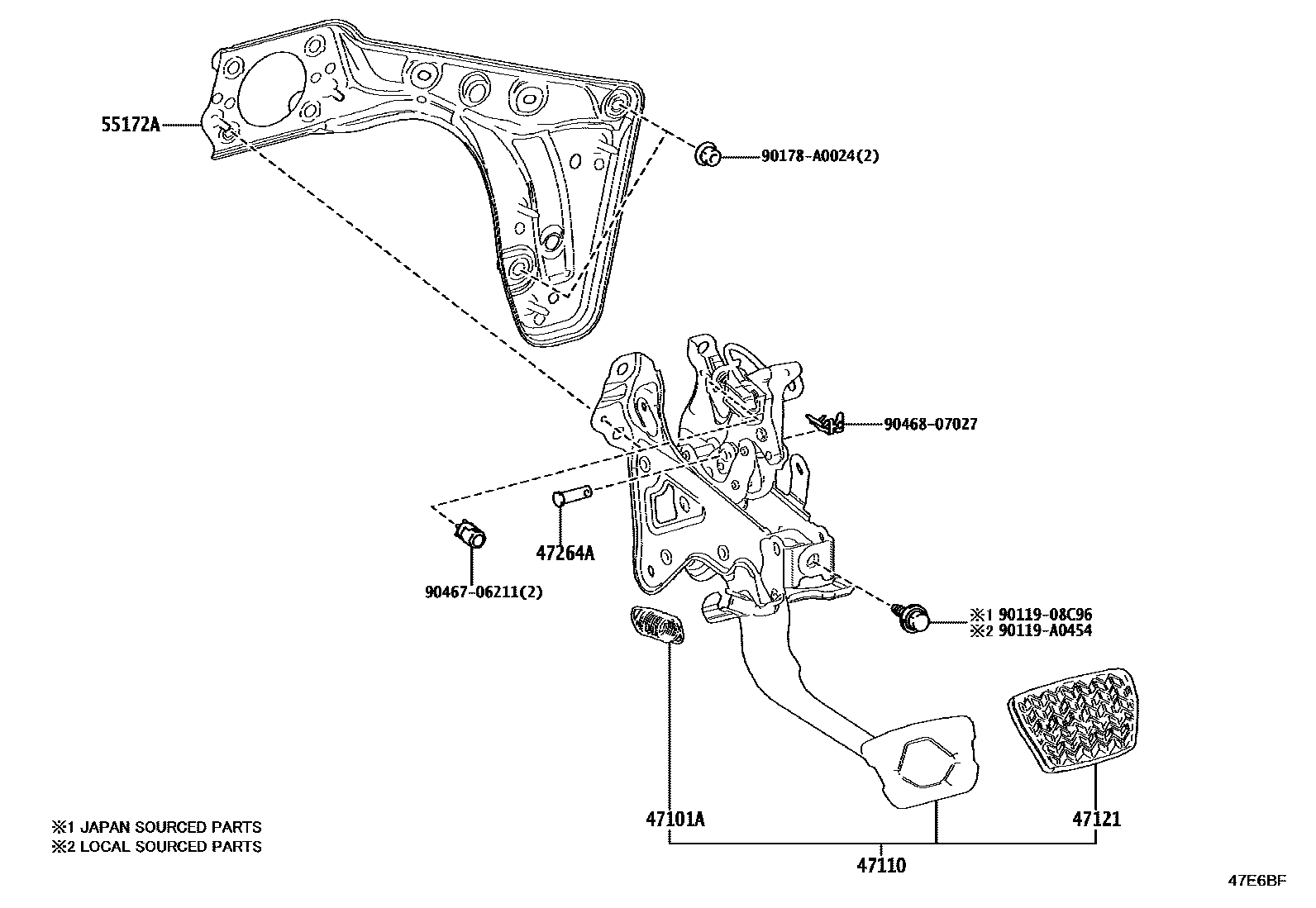

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-A0003iTZNA4#,TZNH47202312

47110SUPPORT ASSY, BRAKE PEDAL

main47110-AK010iTZNA4#..8FC202312

main47110-AK020iTZNA40,45..DCB..8FC202312

TRD SPORT PACKAGE

main47110-AK040supersedes 47110-AK030iTZNA45..6F202312

TRD SPORT PACKAGE

main47110-AK060supersedes 47110-AK050iTZNH47202404

TRD PRO PACKAGE; TRD SPORT PACKAGE

47121PAD, BRAKE PEDAL

main47121-62010iTZNA4#,TZNH47..ATM,CVT202312

main47121-34010iTZNA40,45..DCB..8FC202312

TRD SPORT PACKAGE

main47121-35030supersedes 47121-35020iTZNA45..6F202312

TRD SPORT PACKAGE

47264APIN(FOR PUSH ROD)

main90240-06028iTZNA4#202312

main90240-08078iTZNH47202404

55172ABASE, BRAKE PEDAL SUPPORT

main55172-04030iTZNA4#,TZNH47202312

9011908C96

main90119-08C96

90119A0454

main90119-A0454

90178A0024

main90178-A0024

9046706211

main90467-06211

9046807027

main90468-07027

10 parts on this diagram · 2 diagrams in section
